Description

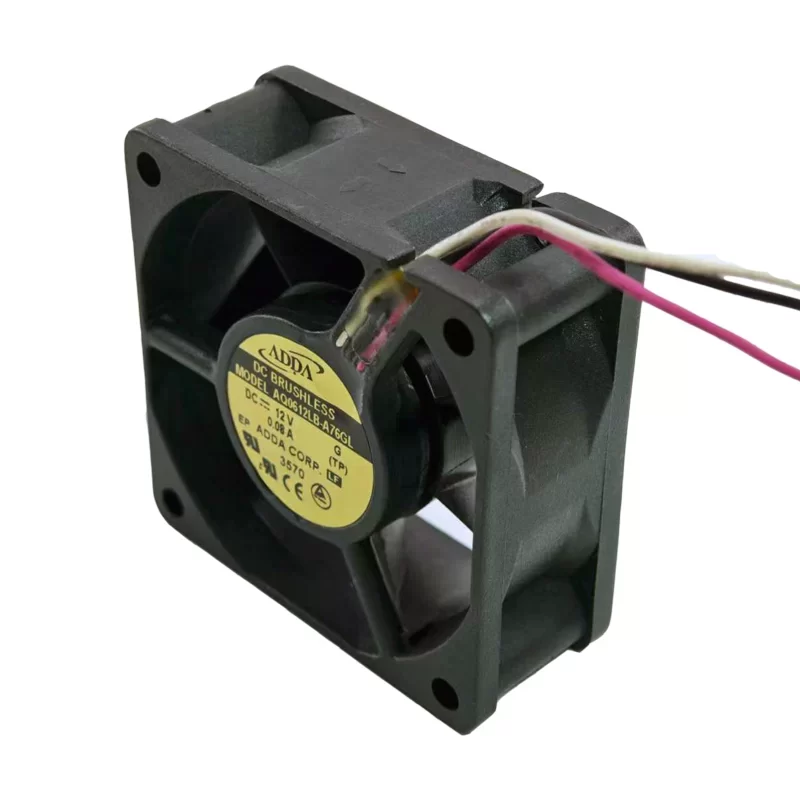

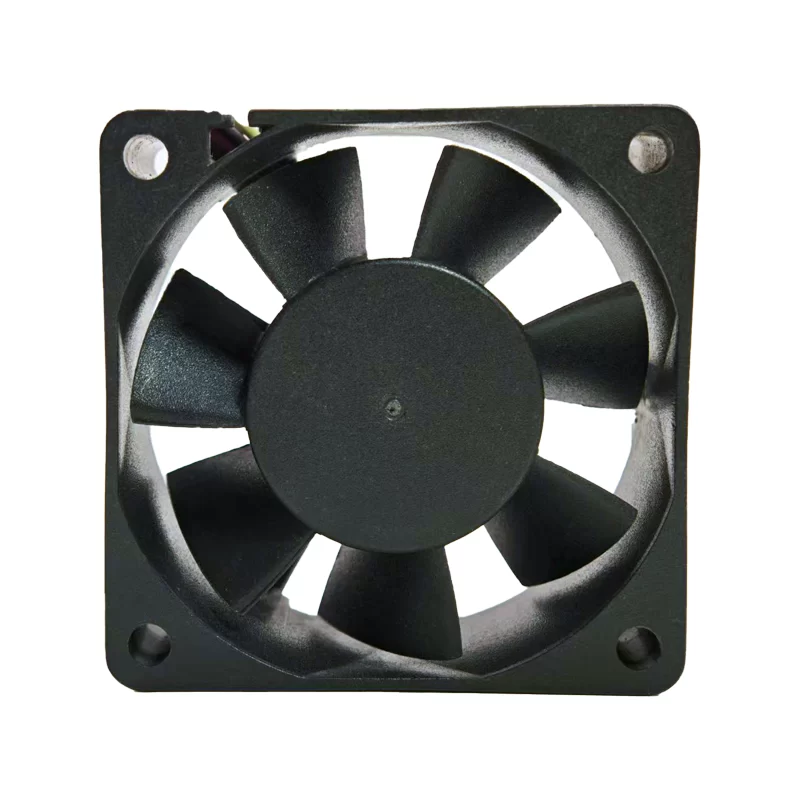

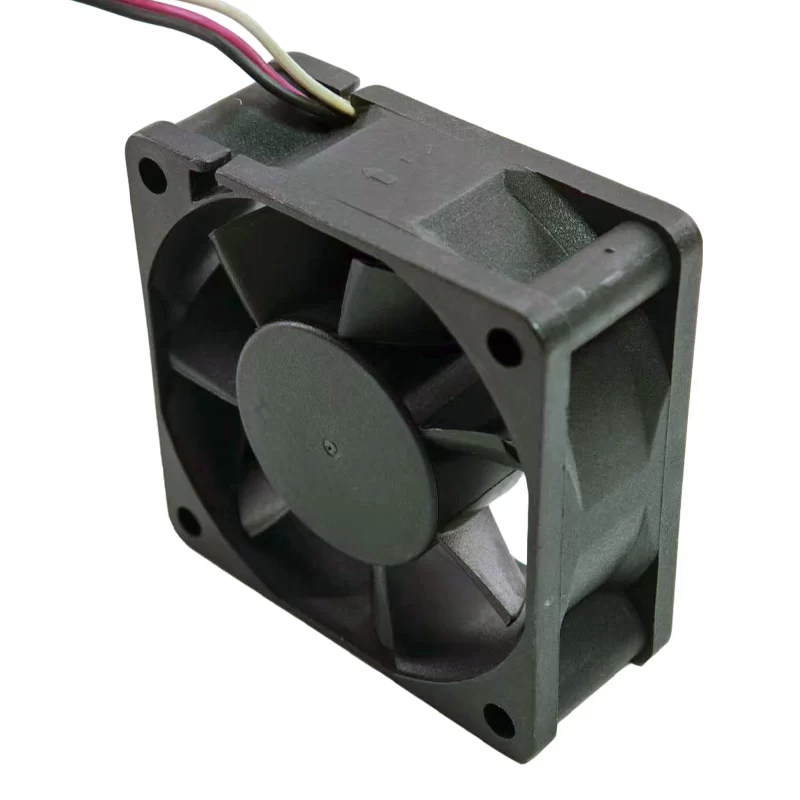

The ADDA AD0612LB-A76GL is a low-speed DC Axial Fan with dimensions of 60×60×25 mm. Operating at 12 V, this Low Speed fan has a Rated Current of 0.08 A and a Power Consumption of 0.96 W. It features a 3-wire termination for Tachometer Output (FG) functionality, uses a Ball Bearing system, and operates at a Nominal Speed of 2,800 RPM. It delivers an Airflow of 32.0 m3/h (18.8 CFM) and Static Pressure of 15.2 Pa (0.061 inAq), with a low Noise Level of 21.5 dB(A).
AD0612LB-A76GL Fan Parameters
Model: AD0612LB-A76GL
Manufacturer: ADDA
Type: DC Axial Fan
Dimensions: 60×60×25 mm
Operating Voltage: 12 V
Rated Current: 0.08 A
Power Consumption: 0.96 W
Nominal Speed: 2,800 RPM
Airflow: 32.0 m3/h (18.8 CFM)
Static Pressure: 15.2 Pa (0.061 inAq)
Noise Level: 21.5 dB(A)
Bearing Type: Ball Bearing
Termination: 3-Wire Leads (Tachometer Output)
Number of blades: 7
Frame Material: Plastic (PBT)
Impeller Material: Plastic (PBT)
Weight: 68 g
Safety Approvals: CE, TUV
RoHS Status: Compliant
Application
The AD0612LB-A76GL is primarily used for spot cooling in electronic devices like network routers, small servers, and industrial control cabinets that require both precise speed monitoring and low acoustic noise. The Tachometer Output feature allows a system to monitor the fan’s rotational speed, enabling fault detection and closed-loop speed control for optimized performance and energy efficiency.
