Description

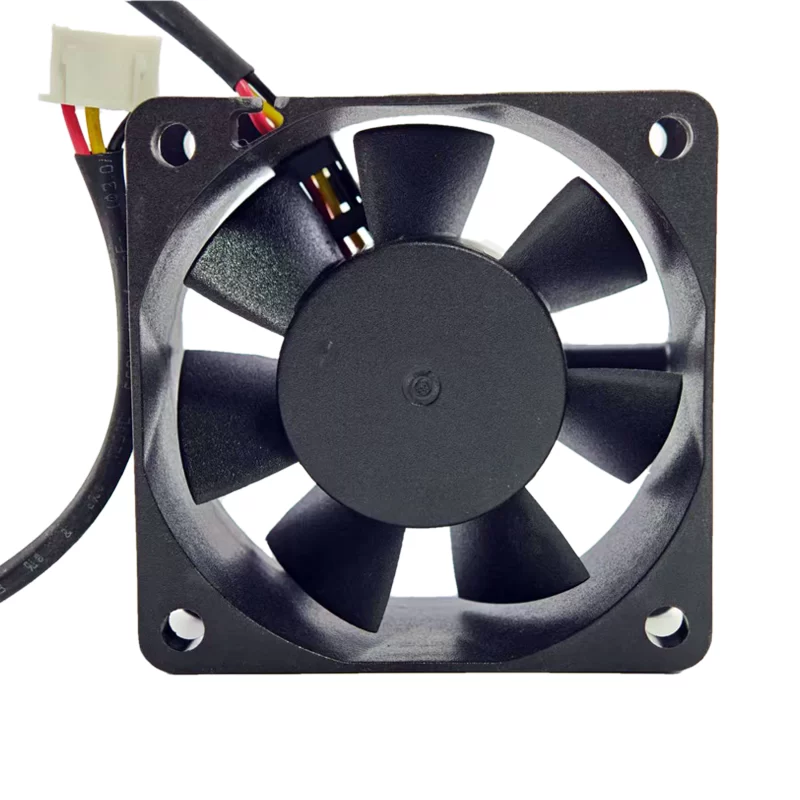

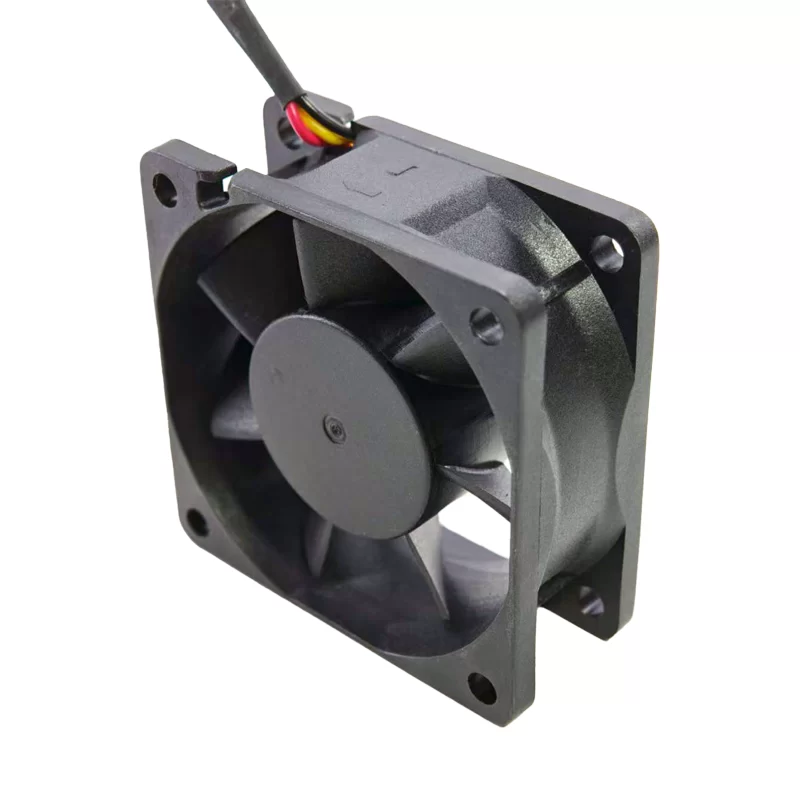

The Sunon AD0612UB-A76GL is a DC Axial Fan with dimensions of 60x60x25mm. It operates on 12VDC, drawing 0.35A of current and consuming 3W of power. The fan achieves a high speed of 5000 RPM, providing an airflow of 28.3 CFM and a static pressure of 6.4 mmAq. With a noise level of 37 dBA and a durable ball bearing system, this fan is designed to be reliable, offering a life expectancy of 60,000 hours at 40°C.
AD0612UB-A76GL Fan Parameters
Model: AD0612UB-A76GL
Manufacturer: Sunon
Type: DC Axial Fan
Dimensions: 60 x 60 x 25 mm
Rated Voltage: 12 VDC
Current Draw: 0.35 A
Power Input: 3 W
Fan Speed: 5000 RPM
Airflow: 28.3 CFM
Static Pressure: 6.4 mmAq
Noise Level: 37 dB(A)
Bearing Type: Ball Bearing
Life Expectancy: 60,000 hours at 40°C
Termination: 3-wire lead
Application: Industrial machinery, Electronics cooling, Server racks, Medical equipment
