Description

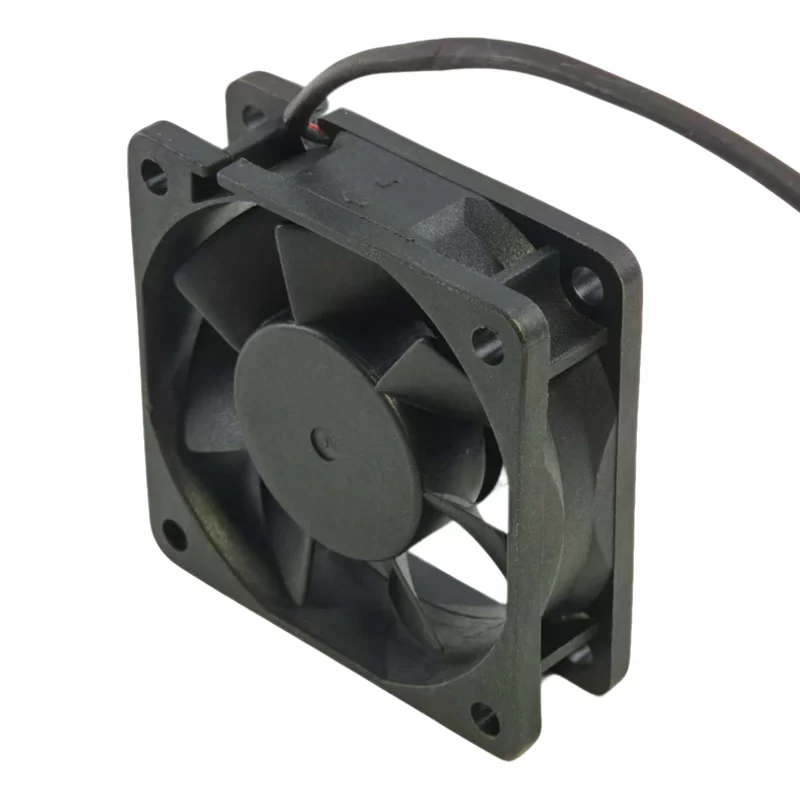

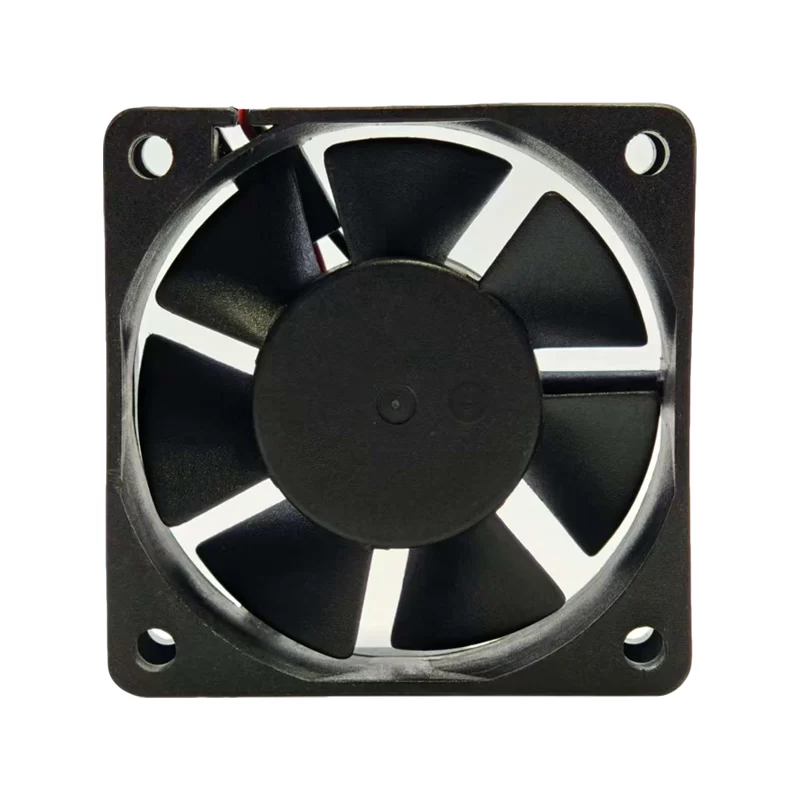

The ADDA AD0612UB-C70GL is a DC axial fan with dimensions of 60 x 60 x 20 mm. It operates on 12V DC, drawing 0.16 A of current and consuming 1.92 W of power. This fan runs at a speed of 4600 RPM, delivering an airflow of 16.4 CFM with a static pressure of 0.139 inch H₂O. It produces a noise level of 29.7 dBA. The fan uses ball bearings for reliability and is terminated with two-wire leads. It is constructed from thermoplastic materials and operates within a temperature range of -10 °C to 70 °C.
AD0612UB-C70GL Fan Parameters
Manufacturer: ADDA
Model: AD0612UB-C70GL
Fan Type: DC Axial Fan
Dimensions: 60 x 60 x 20 mm
Rated Voltage: 12V DC
Current Rating: 0.16 A
Power Consumption: 1.92 W
Airflow: 16.4 CFM
Static Pressure: 0.139 inch H₂O
Speed: 4600 RPM
Noise Level: 29.7 dBA
Bearing Type: Ball bearing
Termination: 2-Wire Leads
Housing Material: Thermoplastic PBT (UL94V-0)
Impeller Material: Thermoplastic PBT (UL94V-0)
Operating Temperature: -10 °C to 70 °C
Weight: 49 g
Application
The AD0612UB-C70GL fan is suitable for inverter cooling, CPU cooling, and other applications in electronic enclosures that require reliable and quiet cooling in a compact form factor.
