AD0612XB-A71GP ADDA 12V DC Axial Fan

Description

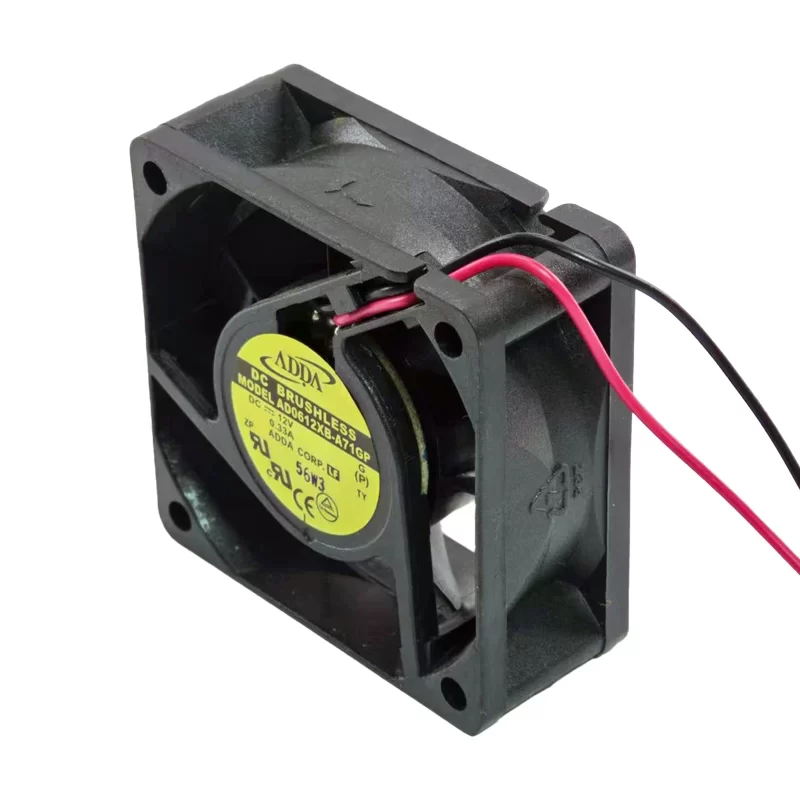

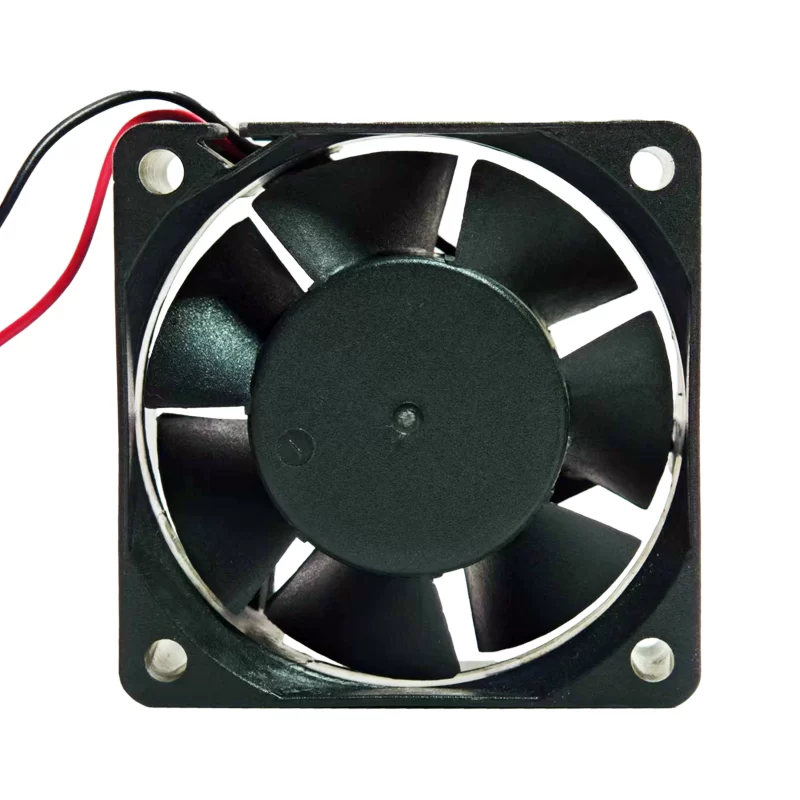

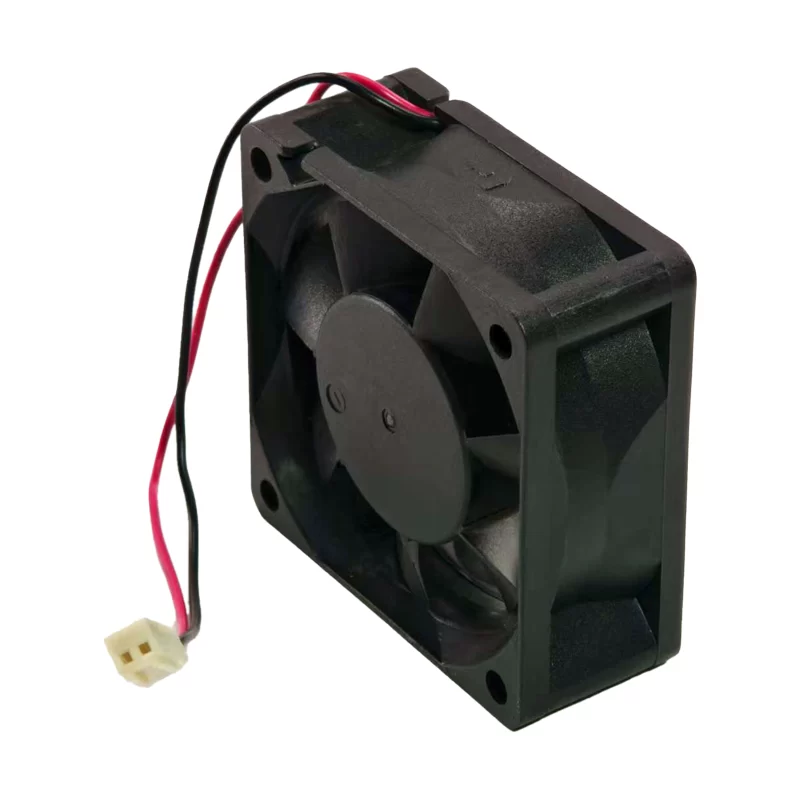

The ADDA AD0612XB-A71GP is a high-performance DC Axial Fan with dimensions of 60×60×25 mm. Operating at 12 V, this High Speed fan has a Rated Current of 0.33 A and a Power Consumption of 3.96 W. It operates at a Nominal Speed of 6,500 RPM, delivering an Airflow of 53.94 m3/h (31.77 CFM), with a Noise Level of 44.3 dB(A). It features a Ball Bearing system for maximum durability in demanding applications.

AD0612XB-A71GP Fan Parameters
Model: AD0612XB-A71GP
Manufacturer: ADDA
Type: DC Axial Fan
Dimensions: 60×60×25 mm
Operating Voltage: 12 V
Rated Current: 0.33 A
Power Consumption: 3.96 W
Nominal Speed: 6,500 RPM
Airflow: 53.94 m3/h (31.77 CFM)
Noise Level: 44.3 dB(A)
Bearing Type: Ball Bearing
Motor Design: Brushless DC Motor
Termination: 2-Wire Leads
Frame Material: Plastic (UL94V-0)
Impeller Material: Plastic (UL94V-0)
Operating Temperature: −10 ∘C to +70 ∘C
Safety Approvals: UL, cUL, TUV, CE

Application
The AD0612XB-A71GP is a powerful fan for environments requiring exceptional airflow and the long-term reliability of a Ball Bearing system. It is optimally suited for cooling high-density electronics, compact server racks, network telecommunication equipment, and industrial machinery where maximum heat extraction in a 60×60 mm footprint is required.
