Description

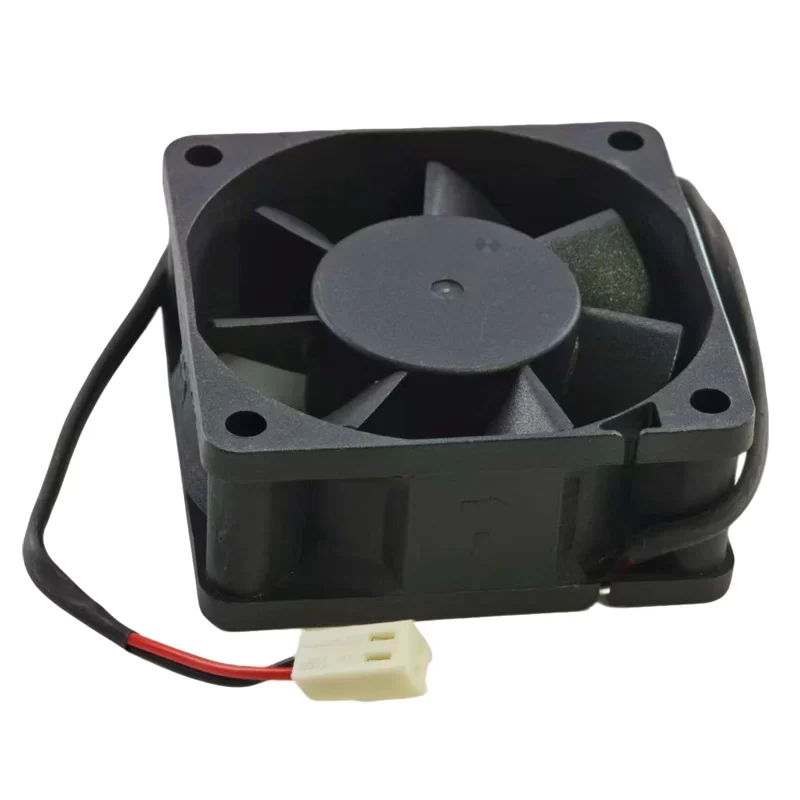

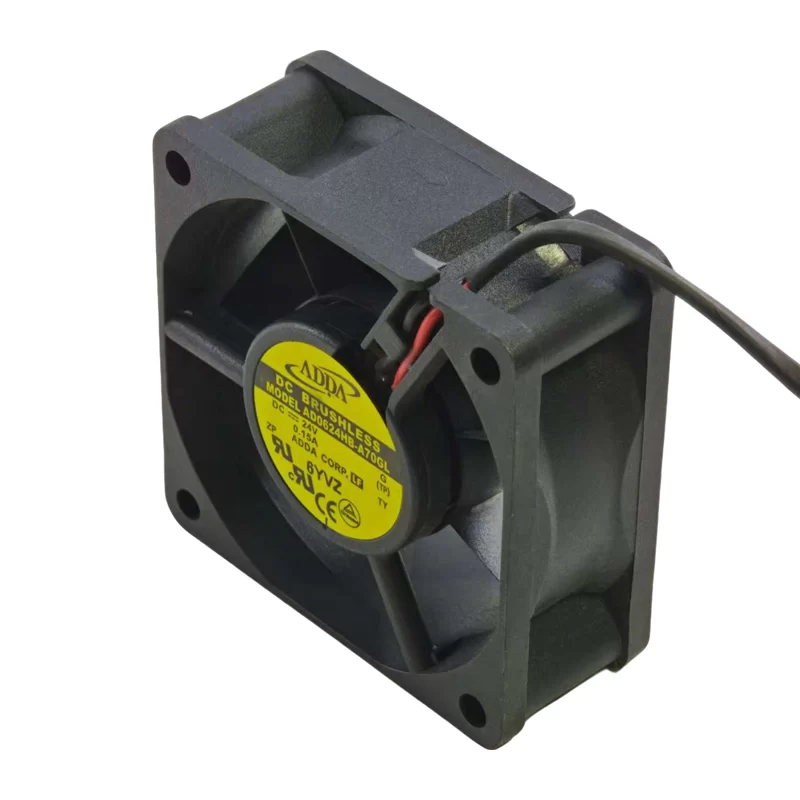

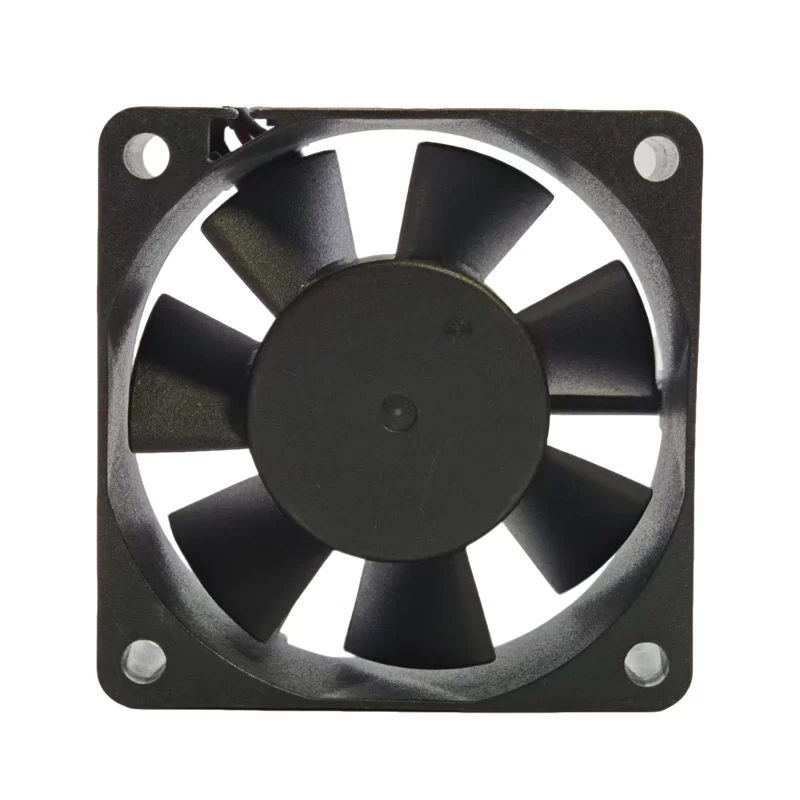

The ADDA AD0624HB-A70GL is a high-speed DC axial fan with dimensions of 60 x 60 x 25 mm. It operates on a rated voltage of 24V DC within a range of 10.8-26.4V, drawing 0.15 A of current and consuming 3.6 W of power. The fan delivers an airflow of 23.2 CFM (39.4 m3/h) and a static pressure of 0.188 inch-H₂O (47Pa) at a speed of 4500 RPM. It operates at a low noise level of 32.3 dB(A) and features a ball bearing with a service life of up to 50,000 hours at 40°C. The fan housing and impeller are constructed from plastic, and it weighs 0.068 kg.
AD0624HB-A70GL Fan Parameters
Manufacturer: ADDA
Model: AD0624HB-A70GL
Fan Type: DC Axial Fan
Dimensions: 60 x 60 x 25 mm
Rated Voltage: 24V DC
Operating Voltage Range: 10.8-26.4 V
Current Rating: 0.15 A
Power Consumption: 3.6 W
Airflow: 23.2 CFM
Static Pressure: 0.188 inch-H₂O
Speed: 4500 RPM
Noise Level: 32.3 dB(A)
Weight: 0.068 kg
Bearing Type: Ball bearing
Termination: 2-Wire Leads
Housing Material: Plastic
Impeller Material: Plastic
Operating Temperature: -10 °C to 70 °C
Service Life: 50000 h at 40 °C
Approval: UL, cUL, CE
Application
The AD0624HB-A70GL fan is suitable for CPU cooling, PC cases, and general electronics cooling in applications where a balance of performance and quiet operation is required.
