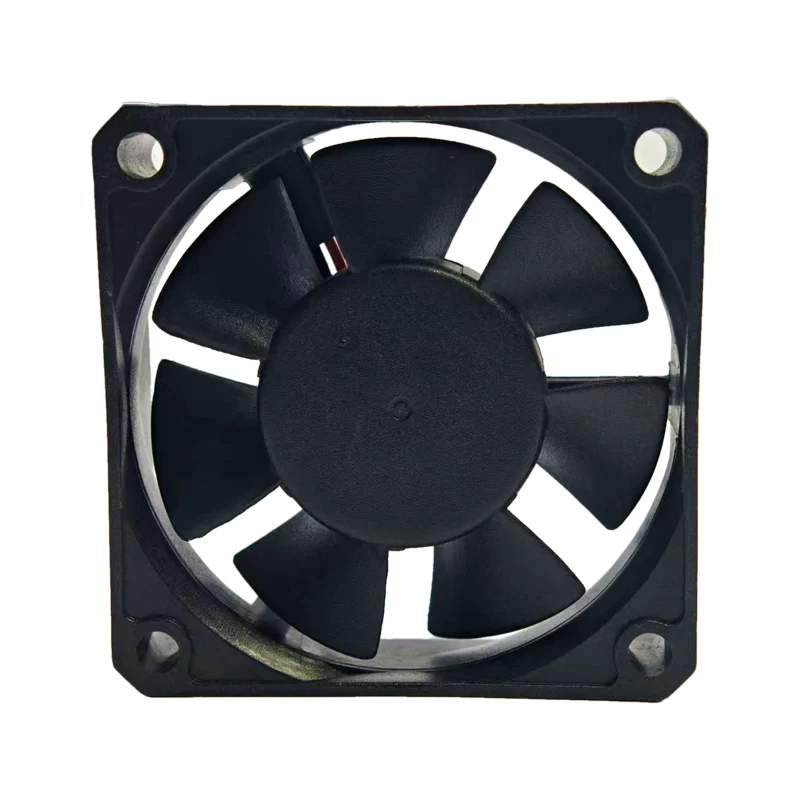

AD0624HX-D70GL ADDA 24V DC Axial Fan

Description

The ADDA AD0624HX-D70GL is a DC axial fan with dimensions of 60 x 60 x 15 mm. It operates on 12V DC, drawing 0.08 A of current and consuming 1.92 W of power. This fan runs at a speed of 4500 RPM, delivering an airflow of 0.447 m³/min (15.816 CFM) with a static pressure of 36.227 Pa. It produces a noise level of 33.4 dBA. The fan utilizes a Hypro bearing for reliability and is terminated with two-wire leads. It is constructed from thermoplastic materials and operates within a temperature range of -10 °C to 70 °C.

AD0624HX-D70GL Fan Parameters
Manufacturer: ADDA
Model: AD0624HX-D70GL
Fan Type: DC Axial Fan
Dimensions: 60 x 60 x 15 mm
Rated Voltage: 12V DC
Current Rating: 0.08 A
Power Consumption: 1.92 W
Airflow: 0.447 m³/min (15.816 CFM)
Static Pressure: 36.227 Pa
Speed: 4500 RPM
Noise Level: 33.4 dBA
Bearing Type: Hypro Bearing
Termination: 2-Wire Leads
Housing Material: Thermoplastic PBT (UL94V-0)
Impeller Material: Thermoplastic PBT (UL94V-0)
Operating Temperature: -10 °C to 70 °C

Application
The AD0624HX-D70GL fan is suitable for applications requiring efficient and compact cooling, such as in network equipment, industrial controls, power supplies, and electronic enclosures.
