Description

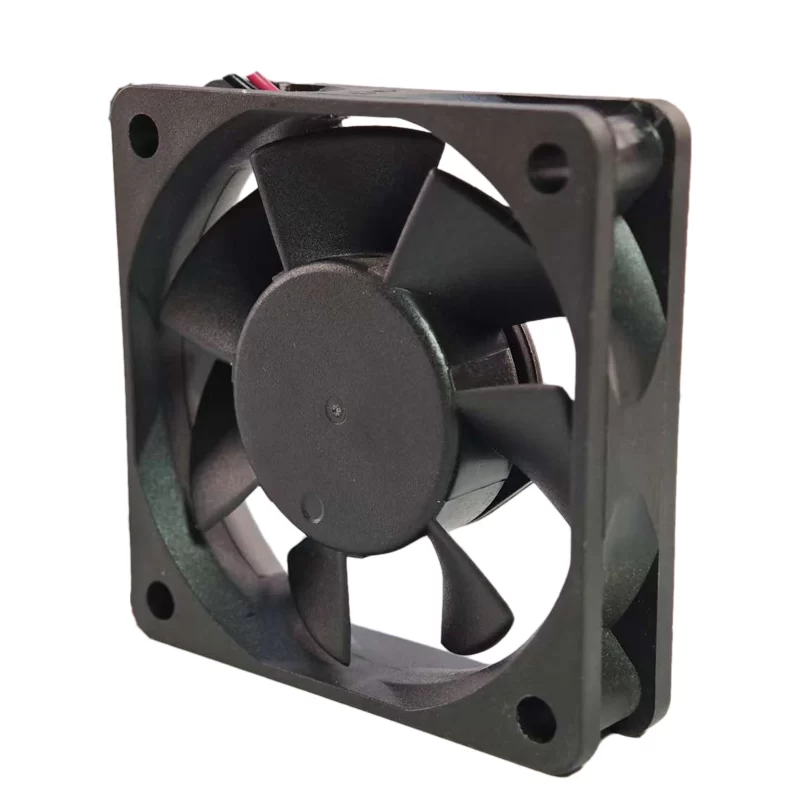

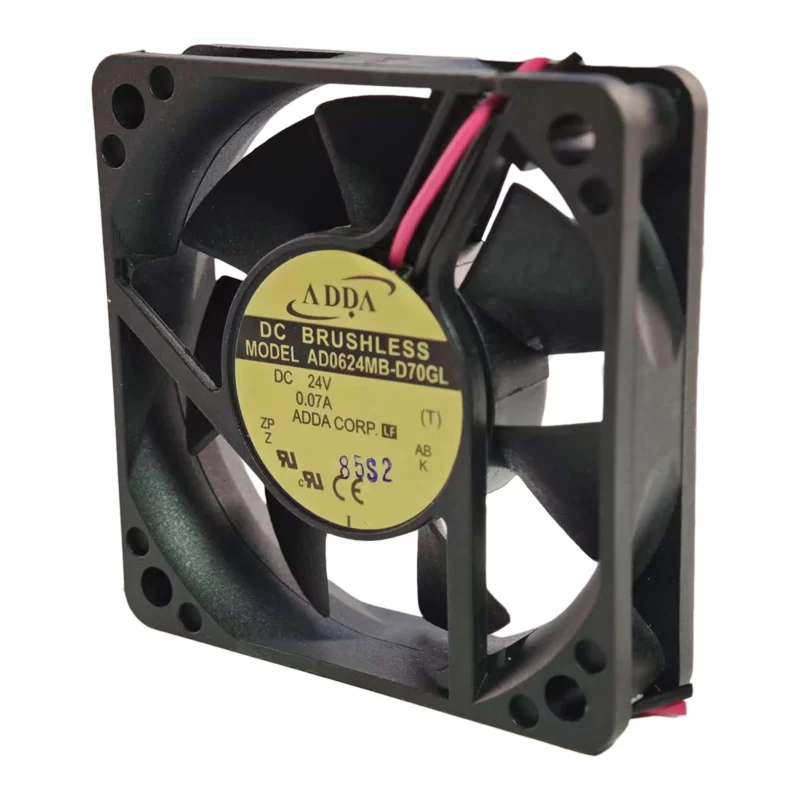

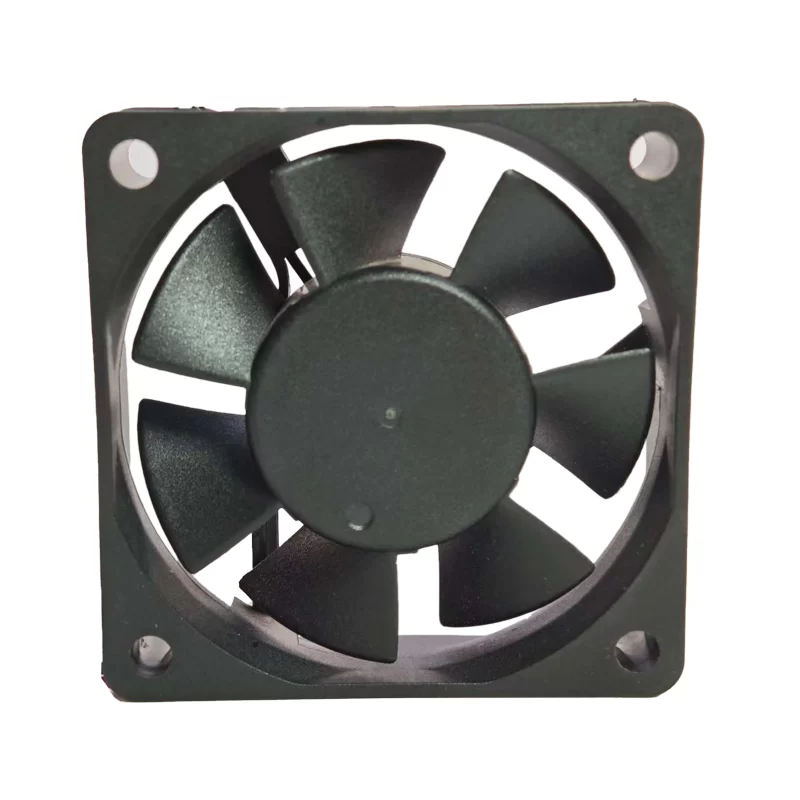

The ADDA AD0624MB-D70GL is a compact 24V DC axial fan, measuring 60x60x15mm, manufactured by ADDA Corporation. This fan is designed for efficient and relatively quiet cooling in various electronic applications. Featuring ball bearings, it offers good durability and a reliable operational lifespan of 70,000 hours. Drawing 0.07A of current, it consumes 1.68W of power. It provides 15.0 CFM of airflow and 0.138 In H2O of static pressure at a speed of 3900 RPM, with a modest noise level of 30.7 dBA. With its 2-wire termination, it offers straightforward integration into systems. This fan is suitable for cooling components in small electronic enclosures, control panels, communication equipment, and other devices where space is limited and consistent, low-to-medium airflow is required.
New Xiexi ADDA AD0624MB-D70GL 24V 6015 frequency converter fan ball cooling fan
Model: AD0624MB-D70GL
Manufacturer: ADDA Corporation
Type: DC Axial Fan
Dimensions: 60mm x 60mm x 15mm
Nominal Voltage: 24V DC
Current: 0.07A
Power Consumption: 1.68W
Speed: 3900 RPM
Airflow: 15.0 CFM
Static Pressure: 0.138 In H2O
Noise Level: 30.7 dBA
Bearing Type: Ball Bearing
Life Expectancy: 70,000 hours
Termination: 2-wire leads
Frame Material: Plastic
Blade Material: Plastic
Features: RoHS compliant, UL/CUL/CE certified.
