Description

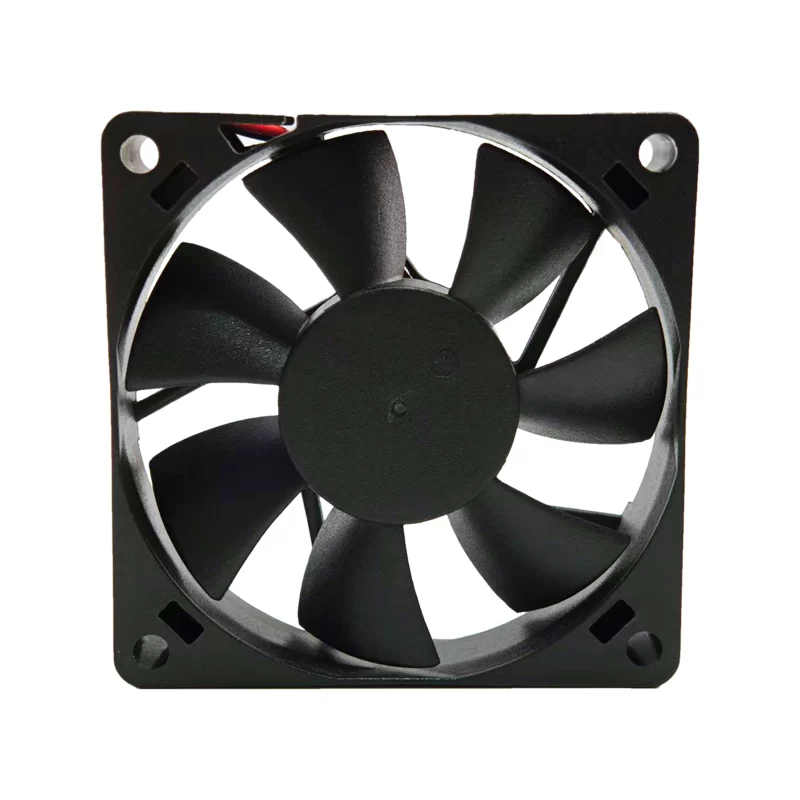

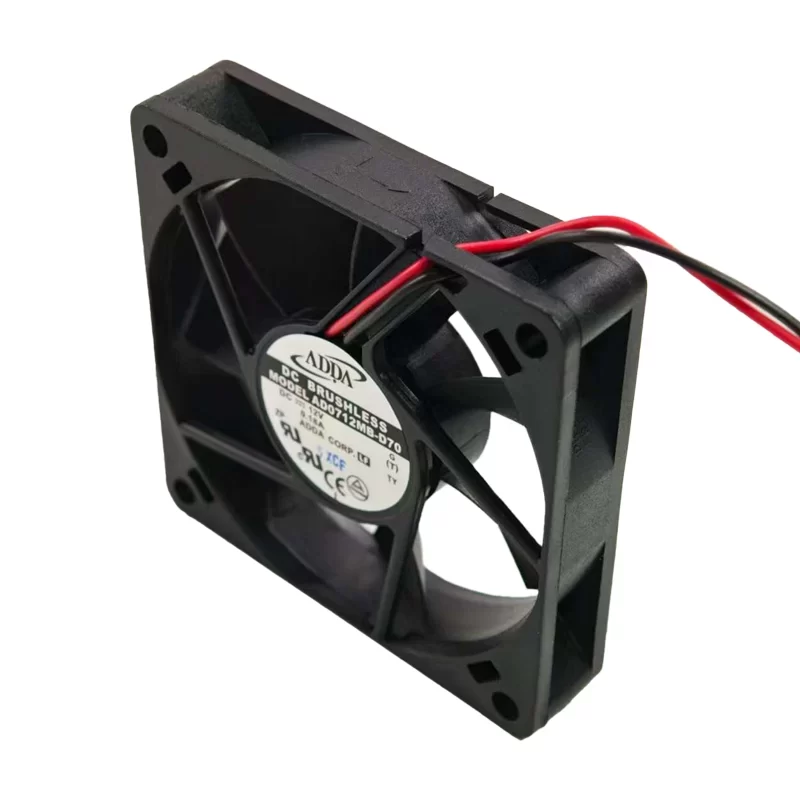

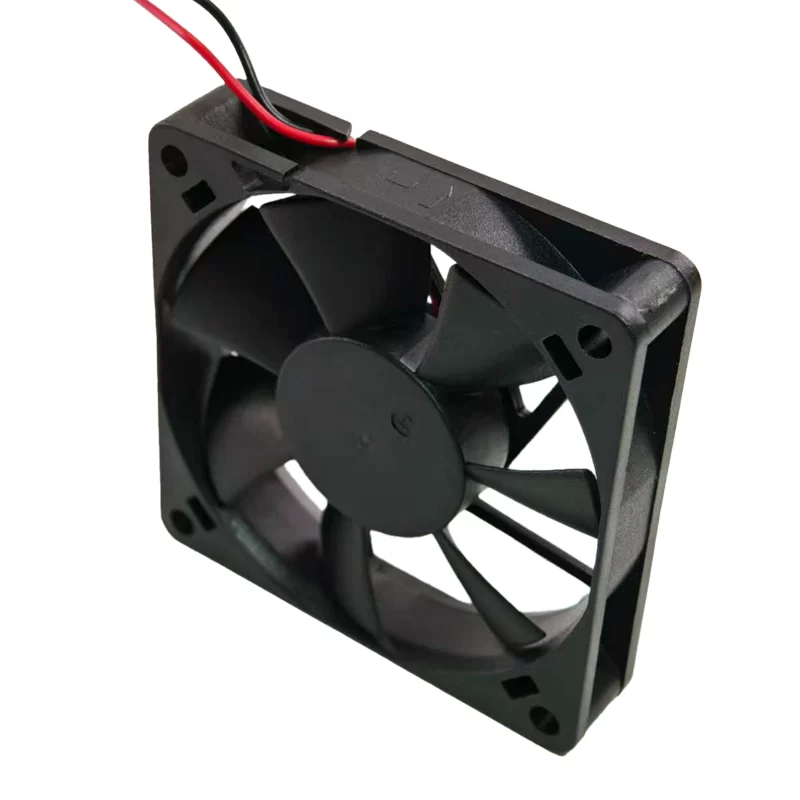

The ADDA AD0712MB-D70 is a high-performance DC Axial Fan with dimensions of 70×70×15 mm. Operating at 12 V, this Medium Speed fan has a Rated Current of 0.18 A and a Power Consumption of 2.16 W (0.18 A×12 V). It utilizes a Ball Bearing system and operates at a Nominal Speed of 3,500 RPM. It delivers an Airflow of 48.6 m3/h (28.6 CFM) and Static Pressure of 37.3 Pa (0.150 inAq), with a Noise Level of 36.9 dB(A).
AD0712MB-D70 Fan Parameters
Model: AD0712MB-D70
Manufacturer: ADDA
Type: DC Axial Fan
Dimensions: 70×70×15 mm
Operating Voltage: 12 V
Rated Current: 0.18 A
Power Consumption: 2.16 W
Nominal Speed: 3,500 RPM
Airflow: 48.6 m3/h (28.6 CFM)
Static Pressure: 37.3 Pa (0.150 inAq)
Noise Level: 36.9 dB(A)
Bearing Type: Ball Bearing
Termination: 2-Wire Leads
Number of Blades: 7
Frame Material: Plastic (UL94V-0)
Impeller Material: Plastic (UL94V-0)
Weight: 54.0 g
Safety Approvals: UL, cUL, TUV, CE
RoHS Status: Compliant
Application
The AD0712MB-D70 is a slim-profile, 70 mm fan designed for cooling applications in space-constrained equipment, such as VFDs (Variable Frequency Drives), 1U rackmount servers, network routers, and thin-form-factor industrial PCs. Its medium speed and high airflow for its depth make it ideal for cooling densely packed components, including inverters.
