AD0712UX-A7BGL ADDA 12V 0.30A DC Axial Fan

Description

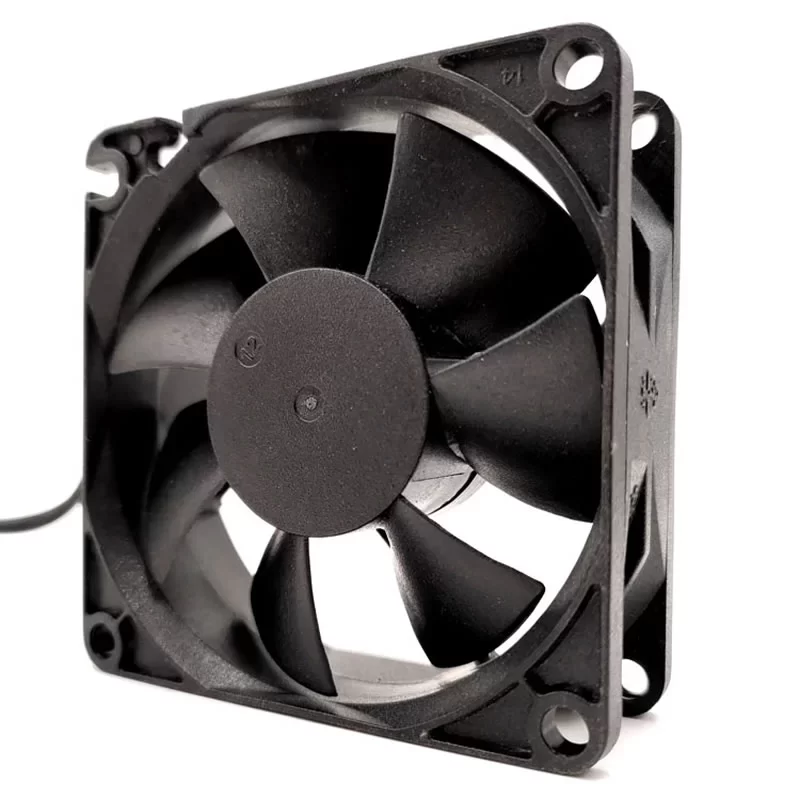

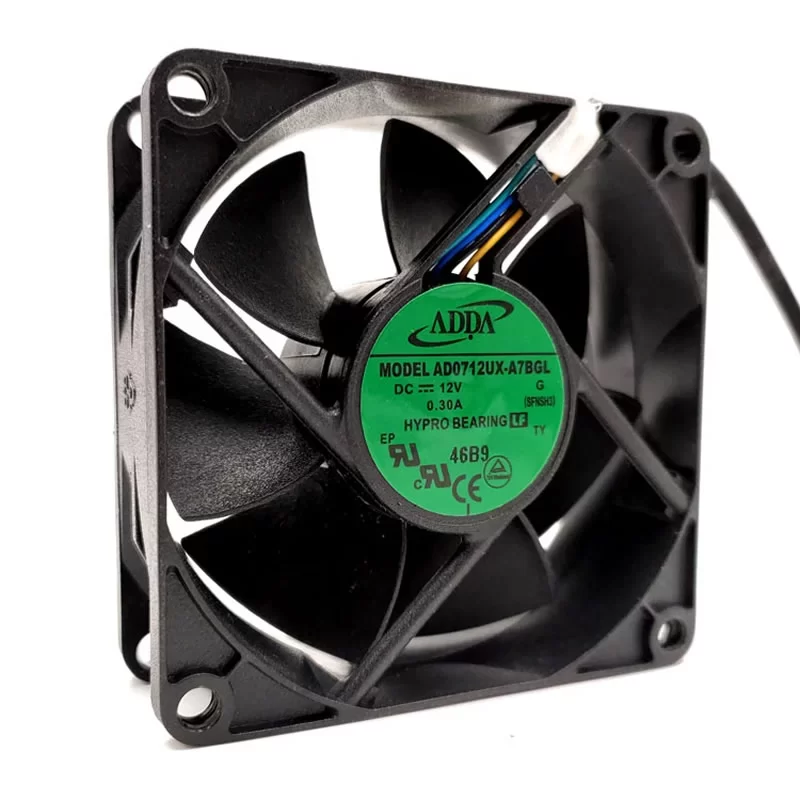

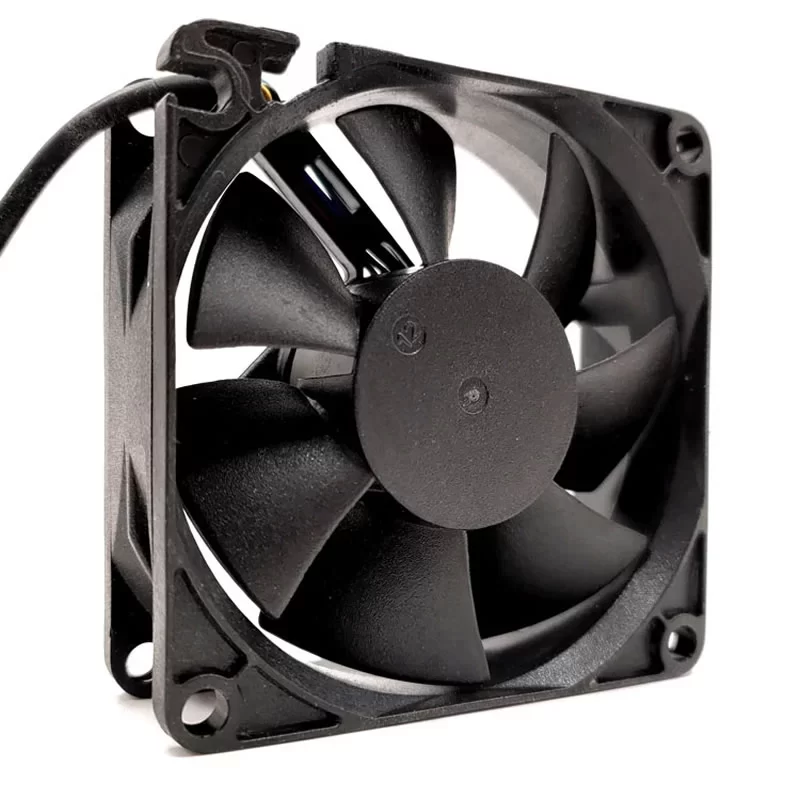

The ADDA AD0712UX-A7BGL is a high-performance DC Axial Fan with dimensions of 70 x 70 x 25 mm. It operates on a 12 VDC nominal voltage and draws a rated current of 0.30 A, consuming 3.6 W of power. With a high estimated speed of 4500 RPM, it achieves an estimated maximum airflow of 52.3 m³/h (30.8 CFM) and an estimated maximum static pressure of 61.2 Pa (0.25 inAq). This fan utilizes a durable bearing system (typically Hypro or Ball), features 4-Wire termination (PWM/Tachometer), and includes essential safety protections. Its high speed and controllable design make it ideal for cooling high-density electronics such as CPUs, server components, and telecommunications equipment requiring precise, powerful, and intelligent thermal management.

AD0712UX-A7BGL Fan Parameters
Model: AD0712UX-A7BGL
Manufacturer: ADDA
Type: DC Axial Fan
Dimensions: 70 x 70 x 25 mm
Rated Voltage: 12 VDC
Operating Voltage Range: 10.8 to 13.2 VDC
Rated Current: 0.30 A
Rated Input Power: 3.6 W
Estimated Speed: 4500 RPM
Estimated Airflow: 52.3 m³/h (30.8 CFM)
Estimated Static Pressure: 61.2 Pa (0.25 inAq)
Estimated Noise Level: 38.5 dB(A)
Bearing Type: Hypro Bearing or Ball Bearing
Expected Life: 40,000 h at 40 °C (Typical for ADDA)
Termination: 4-Wire (PWM Speed Control, Tachometer Output)
Motor Protection: IC Protected, Polarity Protection
Frame Material: Plastic (PBT, UL 94V-0)
Weight: 76 g (Typical)
Safety Approvals: UL, CUL, TUV, CE

Application
This high-speed fan is critical for effective thermal dissipation in systems with constrained space and high heat loads. Key applications include CPU coolers, high-performance power supplies, chassis ventilation in industrial computers (IPC), data storage arrays, network switches, and other devices requiring reliable and intelligently controlled spot cooling.
