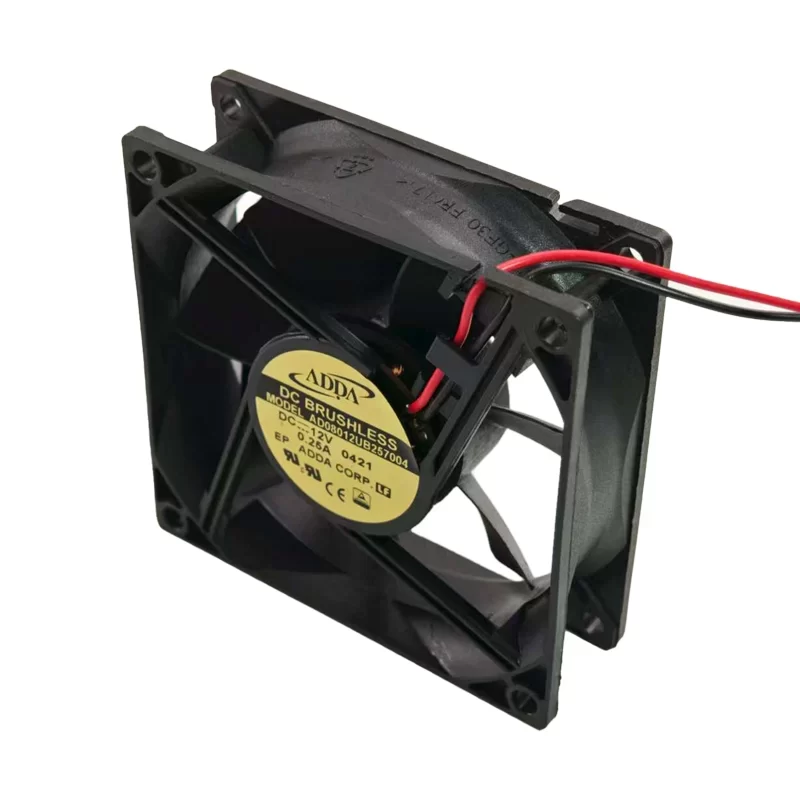

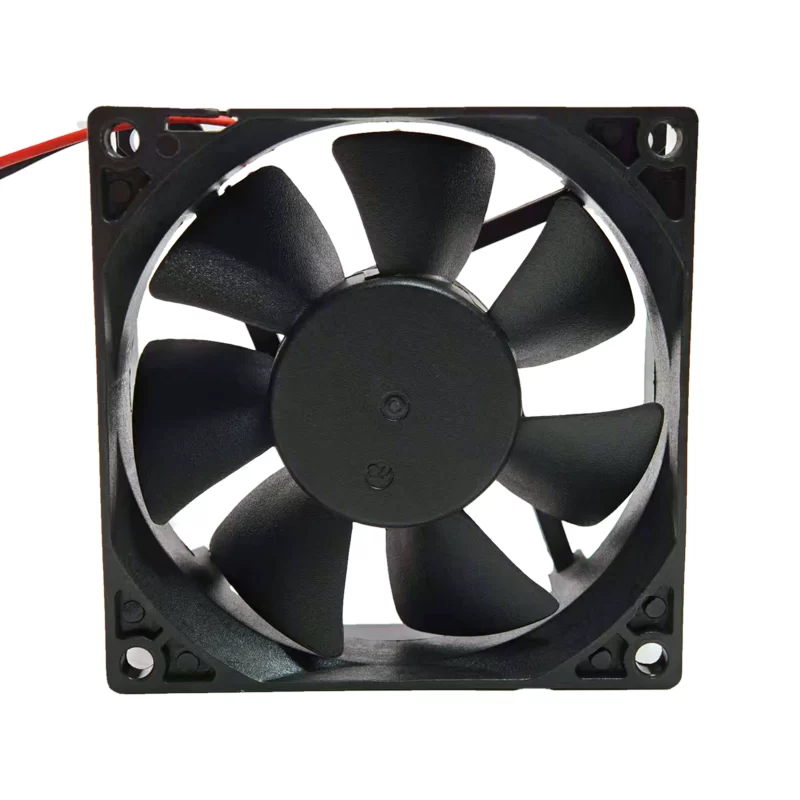

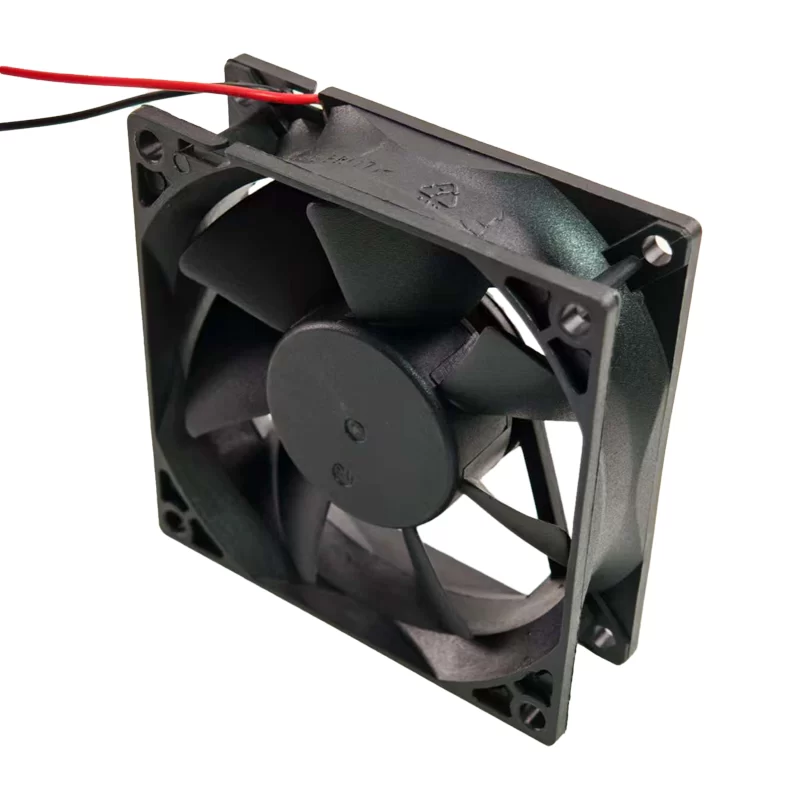

AD08012UB257004 ADDA 12V DC Axial Fan

Description

The ADDA AD08012UB257004 is a high-performance DC Axial Fan with dimensions of 80×80×25 mm. Operating at 12 V, this Ultra-High Speed fan has a Rated Current of 0.25 A and a Power Consumption of 3.0 W. It utilizes a Ball Bearing system and operates at a Nominal Speed of 3,400 RPM. It delivers an Airflow of 73.9 m3/h (43.5 CFM) and is engineered for high static pressure with a Noise Level of 44.5 dB(A).

AD08012UB257004 Fan Parameters
Model: AD08012UB257004
Manufacturer: ADDA
Type: DC Axial Fan
Dimensions: 80×80×25 mm
Operating Voltage: 12 V
Rated Current: 0.25 A
Power Consumption: 3.0 W
Nominal Speed: 3,400 RPM
Airflow: 73.9 m3/h (43.5 CFM)
Static Pressure: 49.7 Pa (0.20 inAq)
Noise Level: 44.5 dB(A)
Bearing Type: Ball Bearing
Termination: 2-Wire Leads
Number of blades: 7
Frame Material: Plastic (UL94V-0)
Impeller Material: Plastic (UL94V-0)
Safety Approvals: RoHS Compliant

Application
The AD08012UB257004 is utilized in various applications where focused cooling within a standard 80 mm form factor is necessary. It is highly suitable for cooling high-power components in computing hardware, industrial power supplies, telecommunication enclosures, and other electronic devices where effective heat removal against system impedance is required.
