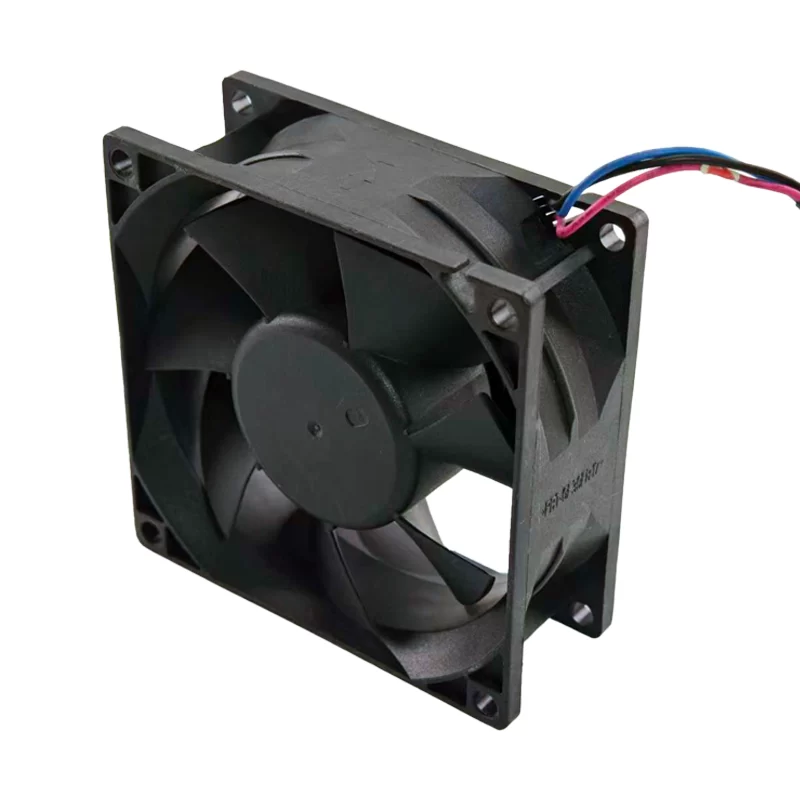

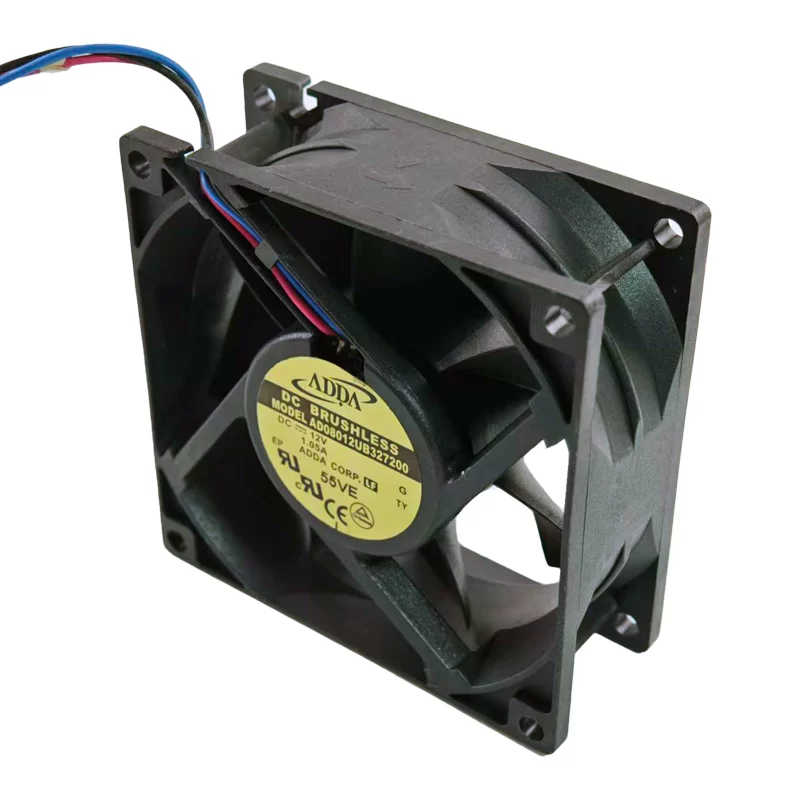

AD08012UB327200 ADDA 12V DC Axial Fan

Description

The ADDA AD08012UB327200 is a high-performance DC Axial Fan with dimensions of 80×80×32 mm. It operates on a 12 VDC voltage and uses a Ball Bearing system. Drawing a high rated current of 1.05 A, this 7-blade fan is designed for Ultra-High speed (U) operation to achieve maximum cooling performance.

AD08012UB327200 Fan Parameters
Model: AD08012UB327200
Manufacturer: ADDA
Fan Type: DC Axial Fan
Dimensions: 80×80×32 mm
Nominal Voltage: 12 VDC
Rated Current: 1.05 A
Bearing System: Ball Bearing
Termination: 3-Wire Leads
Number of blades: 7
Frame Material: Plastic (UL94V−0)
Impeller Material: Plastic (UL94V−0)
Motor Design: Brushless DC Motor

Application
The AD08012UB327200 is a heavy-duty cooling fan intended for applications that demand exceptional airflow and pressure within the 80 mm form factor. It is typically utilized for forced-air cooling in high-density electronics, telecom equipment, industrial PCs, or server rack units where its robust construction and high current draw are necessary for critical thermal management.
