AD08012XB327200 ADDA 12V DC Axial Fan

Description

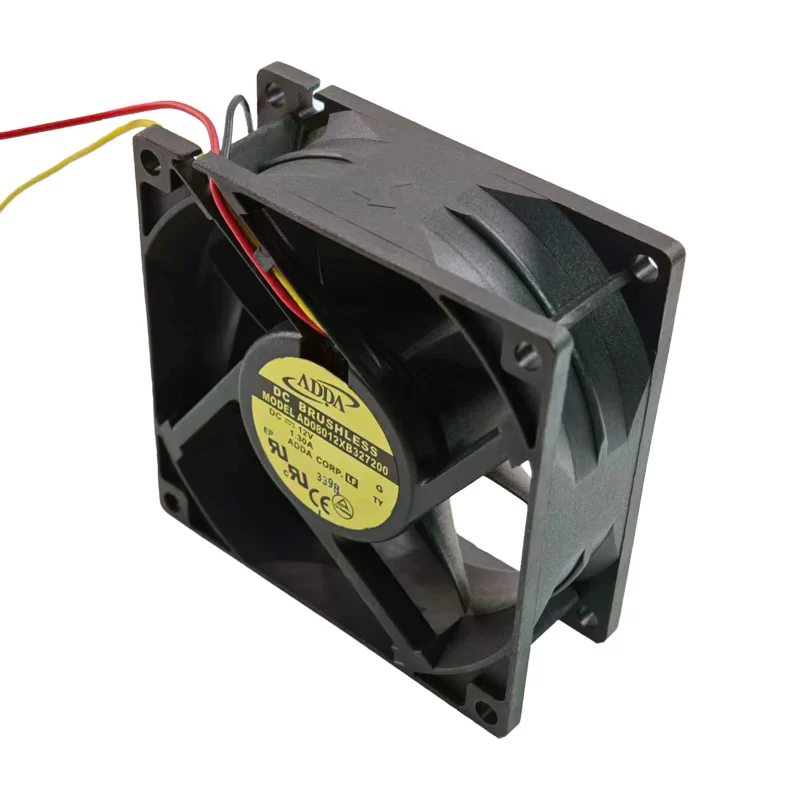

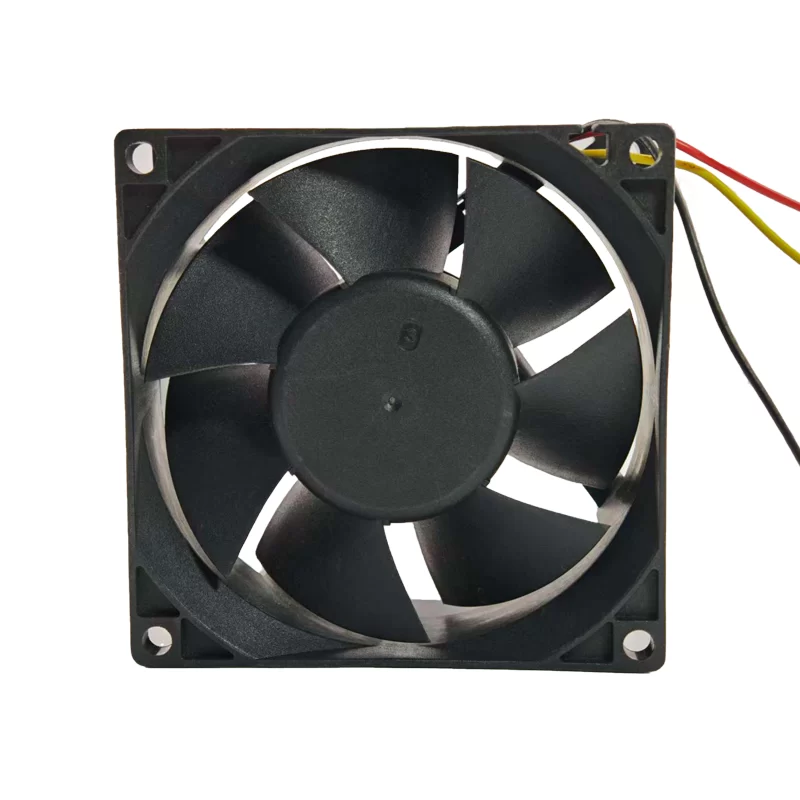

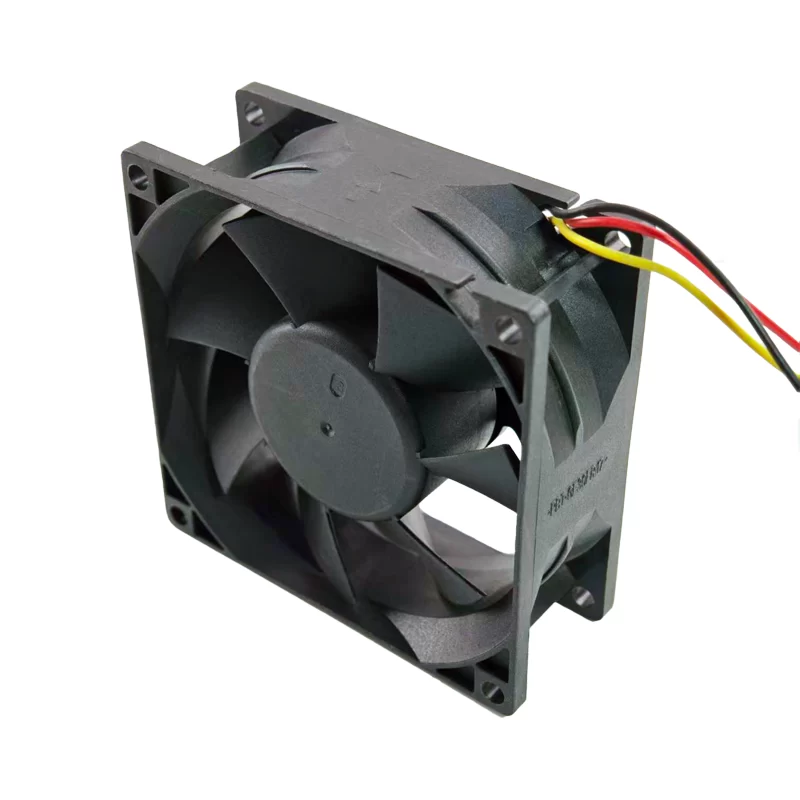

The ADDA AD08012XB327200 is a high-performance DC Axial Fan with dimensions of 80×80×32 mm. This fan operates on a nominal 12 VDC voltage, drawing a high rated current of 1.3 A for a power consumption of 15.6 W. It features a Ball Bearing system and a 7-blade impeller for high reliability. The fan uses 3 wires, which typically includes a tachometer signal for monitoring speed, making it suitable for server and high-power density equipment where precise fan control and intense spot cooling are required.

AD08012XB327200 Fan Parameters
Model: AD08012XB327200
Manufacturer: ADDA
Fan Type: DC Axial Fan
Dimensions: 80×80×32 mm
Nominal Voltage: 12 VDC
Rated Current: 1.3 A
Power Consumption: 15.6 W
Bearing System: Ball Bearing
Number of blades: 7
Termination: 3 Wires lead
Frame Material: Plastic (UL94V-0)
Impeller Material: Plastic (UL94V-0)

Application
The AD08012XB327200 is a powerful 80×32 mm fan designed for high-stress thermal environments. Its 1.3 A current rating indicates an extreme performance level, making it ideal for server cooling, high-end industrial power supplies, GPU or CPU heat sinks (as a replacement fan), and specialized electronic enclosures that demand maximum airflow in a compact 80 mm footprint.
