Description

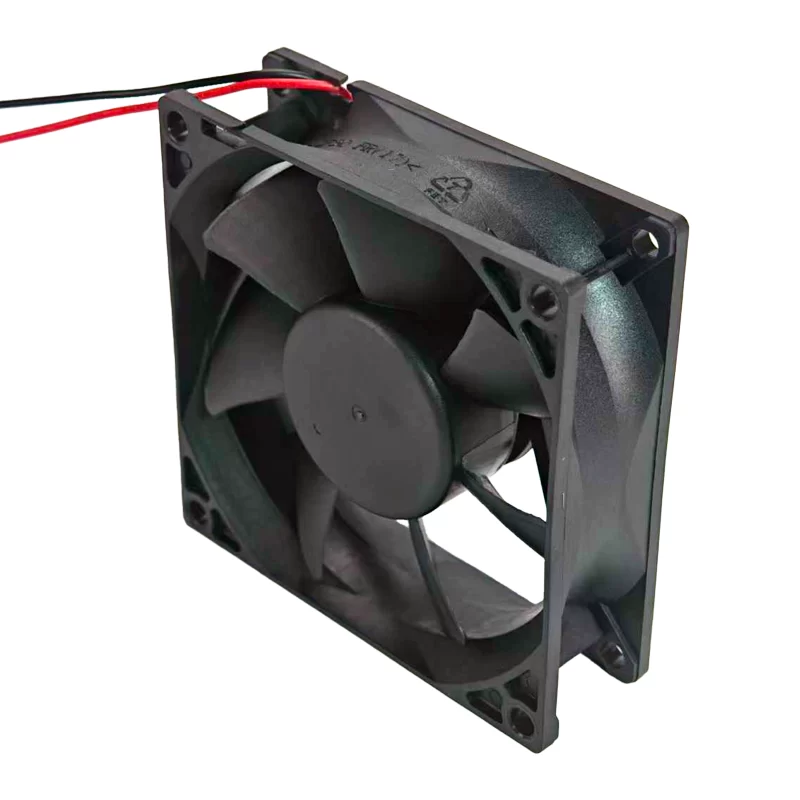

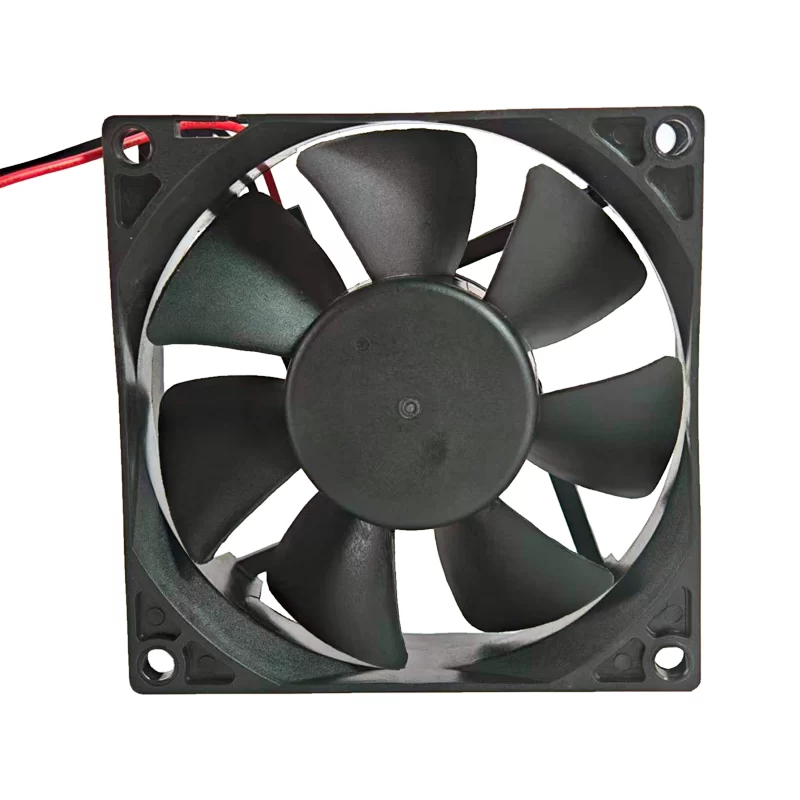

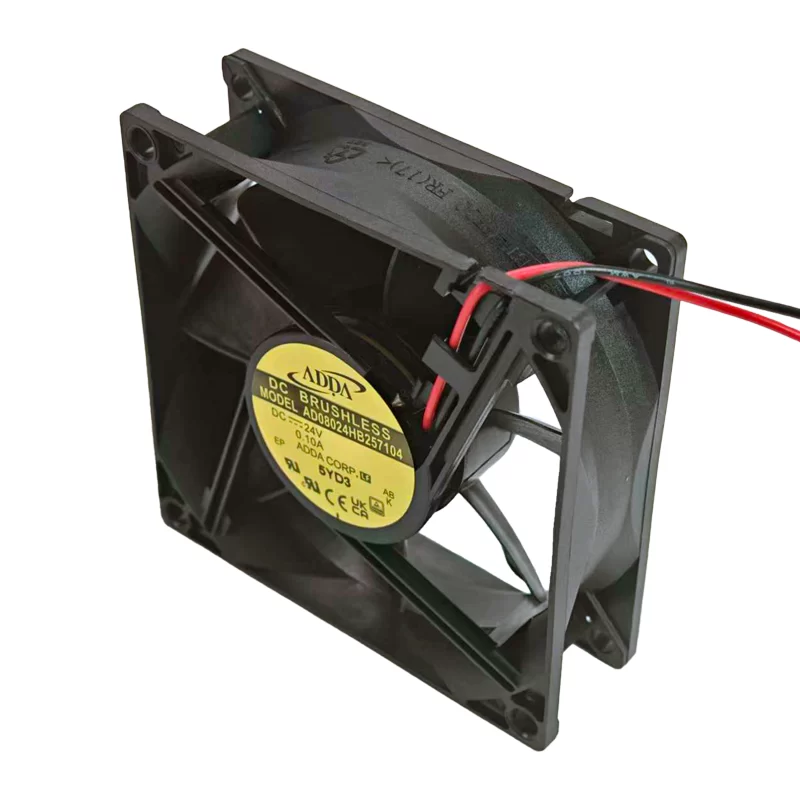

The ADDA AD08024HB257104 is a moderate-speed DC Axial Fan with dimensions of 80 x 80 x 25 mm. It operates on a nominal voltage of 24 VDC. The fan achieves a speed of 3100 RPM, consuming 2.4 W of power and drawing a maximum current of 0.10 A. It delivers a maximum air flow of 73.0 m³/h (43.0 CFM) and a maximum static pressure of 43.1 Pa (0.173 inAq). This low-power fan utilizes a reliable Ball Bearing system and features Locked Rotor Protection with Auto-Restart, making it ideal for systems requiring moderate airflow and reduced power consumption from a 24V DC source.
AD08024HB257104 Fan Parameters
Model: AD08024HB257104
Manufacturer: ADDA
Type: DC Axial Fan (Tubeaxial)
Dimensions (measuring): 80 x 80 x 25 mm
Nominal Voltage: 24 VDC
Voltage Range: 14 VDC ~ 27.6 VDC
Speed: 3100 RPM
Power Consumption: 2.4 W
Current Draw: 0.10 A
Max. Airflow: 73.0 m³/h (43.0 CFM)
Max. Static Pressure: 43.1 Pa (0.173 inAq)
Noise Level: 36.5 dB(A)
Weight: 0.080 kg
Housing Material: Thermoplastic PBT (UL94V-0)
Impeller Material: Thermoplastic PBT (UL94V-0)
Number of Blades: 7
Bearing Type: Ball Bearing
Motor Design: Brushless DC Motor
Motor Protection: Locked Rotor Protection, Auto-Restart
Termination: 2 Wire Leads
Service Life L10 at 40 °C: 60000 h
Min. Ambient Temperature: -10 °C
Max. Ambient Temperature: 70 °C
Approvals: UL, cUL, TUV, CE
Application
The ADDA AD08024HB257104 fan is suitable for enhancing air circulation and spot cooling in 24V DC industrial and telecommunication equipment where power efficiency is a priority. Primary applications include cooling power supplies, industrial control panels, and automation systems requiring moderate airflow and reduced energy use.
