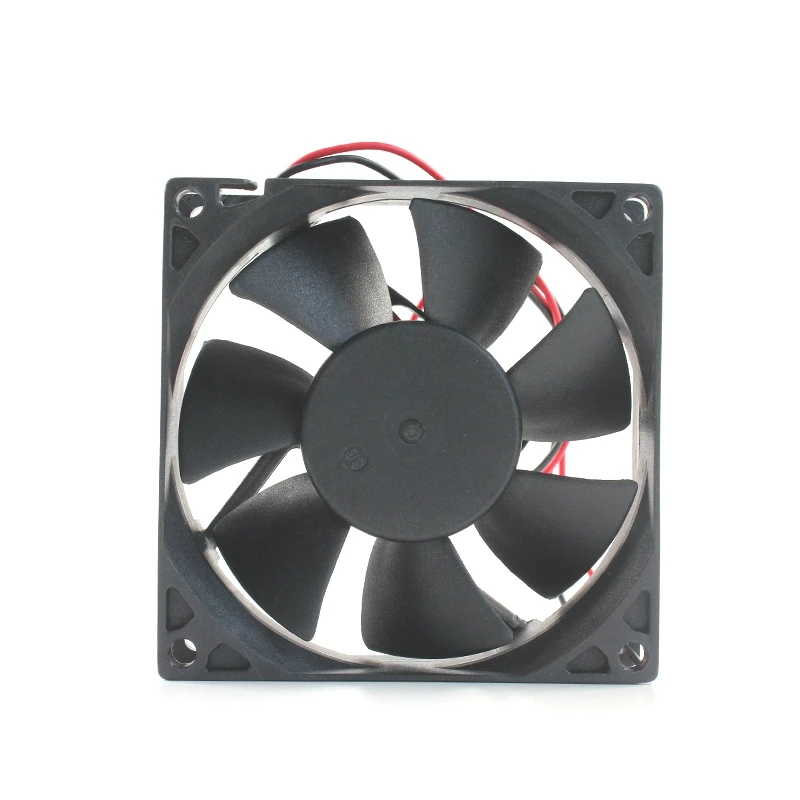

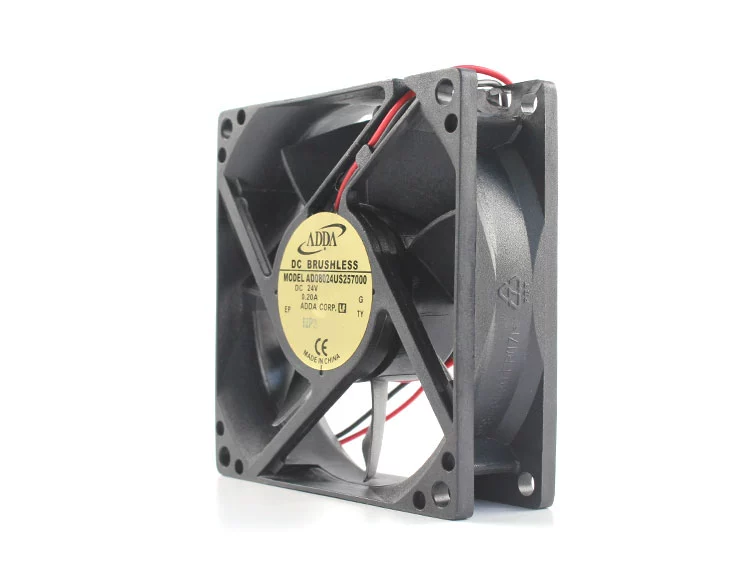

AD08024US257000 ADDA 24V 0.20A axial fan

Description

The ADDA AD08024US257000 is a high-performance DC Axial Fan with dimensions of 80 mm x 80 mm x 25 mm. It operates on a nominal voltage of 24 VDC and has a maximum current draw of 0.20 A, corresponding to a power input of 4.8 W. This fan is typically rated for an ultra-high speed of 4000 RPM, delivering a strong airflow of 88.0m³/h (51.8 CFM) and a static pressure of 0.320inAq. Featuring a robust Ball bearing system and a 2-wire connection, it is ideal for high-density electronic cooling where maximum pressure and airflow are required.

AD08024US257000 Fan Parameters
Model: AD08024US257000
Manufacturer: ADDA
Type: DC Axial Fan
Dimensions: 80 mm x 80 mm x 25 mm
Nominal Voltage: 24 VDC
Operating Voltage Range: 21.6 VDC – 26.4 VDC
Current Draw: 0.20 A
Power Consumption: 4.8 W
Speed: 4000 RPM
Airflow: 88.0 m³/h (51.8 CFM)
Static Pressure: 0.320 inAq (80.0 Pa)
Noise: 48.0 dBA
Bearing Type: Ball
Connection: 2 Wire Leads
Life Expectancy: 50,000 hours min. @ 25 °C
Motor Design: Brushless DC Motor
Number of blades: 7
Frame Material: Plastic (UL94V-0)
Impeller Material: Plastic (UL94V-0)

Application
The ADDA AD08024US257000 is an Ultra High Speed model designed to provide maximum cooling capacity for tightly packed electronic enclosures and hardware. Its high static pressure capability makes it extremely effective in applications with restricted airflow paths or high system impedance, such such as server racks, industrial control units, power supplies, and network communication equipment.
