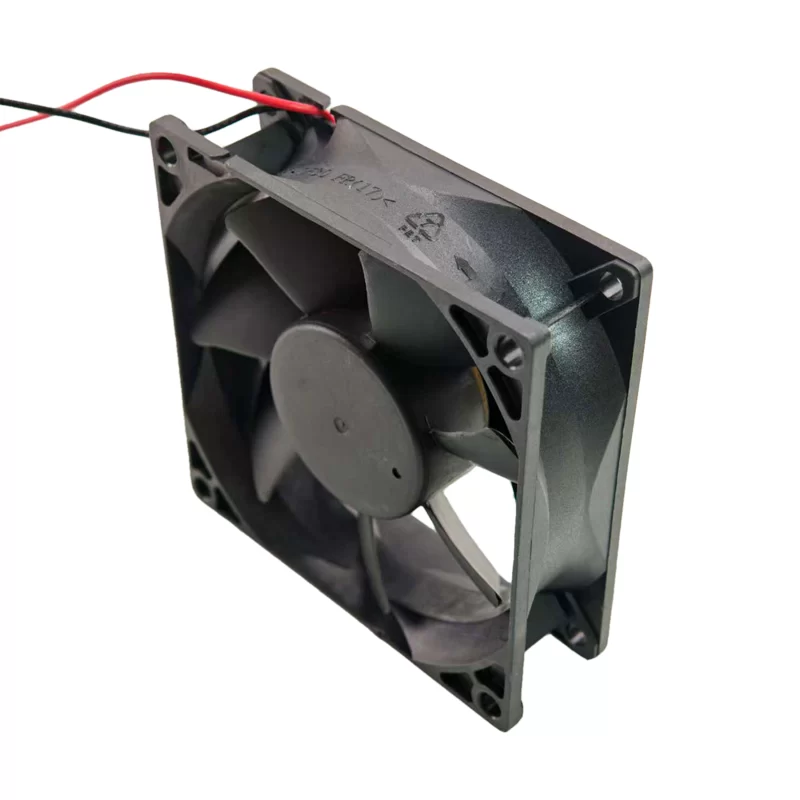

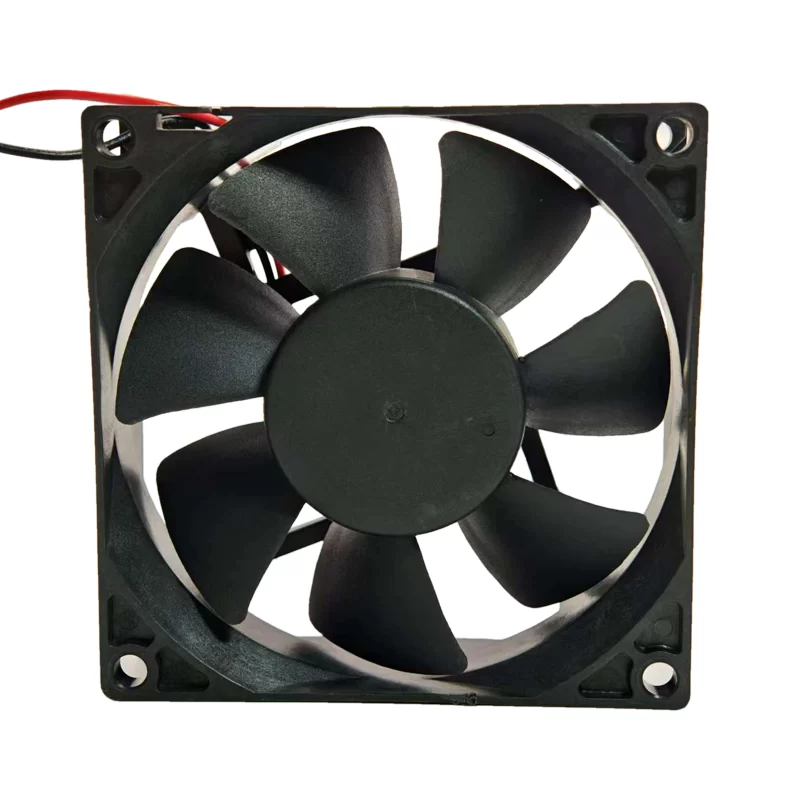

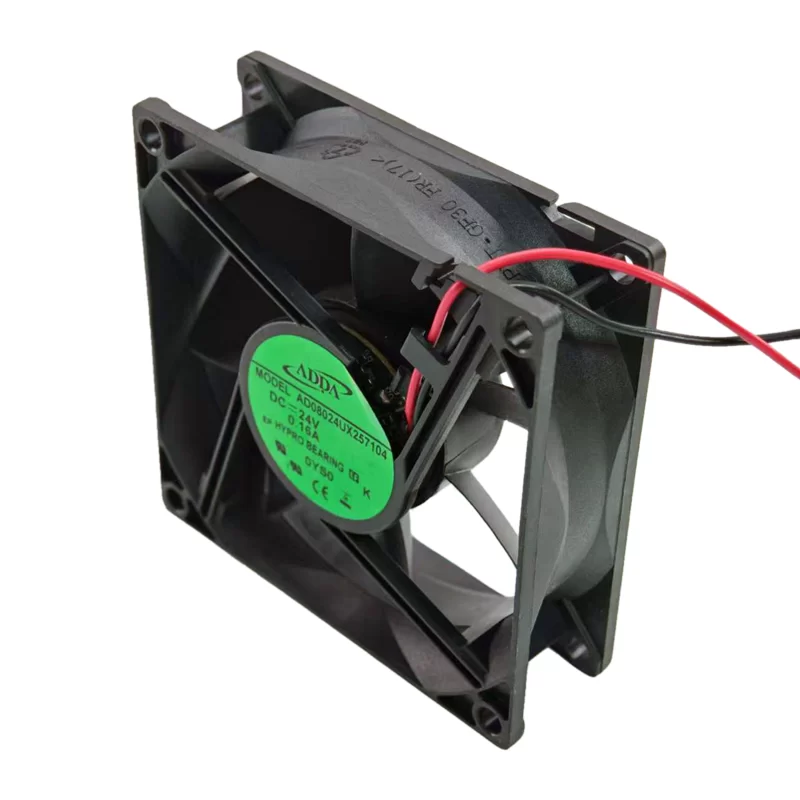

AD08024UX257104 ADDA 24V DC Axial Fan

Description

The ADDA AD08024UX257104 is a high-performance DC Axial Fan with dimensions of 80 x 80 x 25 mm. It operates on a nominal voltage of 24 V DC, consuming 2.4 W at a current rating of 0.1 A. Featuring a reliable HYPRO Bearing system, the fan delivers an airflow of 76.76 m3/h and a static pressure of 53.80 Pa at a speed of 3600 RPM, with a low noise level of 42 dBA. The lightweight 72 g unit is constructed entirely of Plastic for both the frame and impeller. This fan is engineered for standard-to-high cooling performance in server cabinets, power supplies, and telecommunication racks where efficiency and noise reduction are important.

AD08024UX257104 Fan Parameters
Model: AD08024UX257104
Manufacturer: ADDA
Type: DC Axial Fan
Nominal Voltage: 24 V DC
Current Draw: 0.1 A
Label Current: 0.16 A
Power Consumption: 2.4 W
Airflow: 76.76 m3/h
Airflow in CFM: 45.2 CFM
Static Pressure: 53.80 Pa
Speed: 3600 RPM
Noise Level: 42 dBA
Dimensions: 80 x 80 x 25 mm
Weight: 72 g
Bearing Type: HYPRO Bearing
Frame Material: Plastic
Impeller Material: Plastic
Termination: 2 Wire Leads
Number of blades: 7
AC/DC: DC

Application
The AD08024UX257104 is an efficient thermal solution, suitable for environments requiring a balance of cooling power and reduced acoustic output. Its specifications make it ideal for electronic enclosures, control panels, and embedded systems where a high reliability, 24 V fan is necessary for consistent cooling performance.
