Description

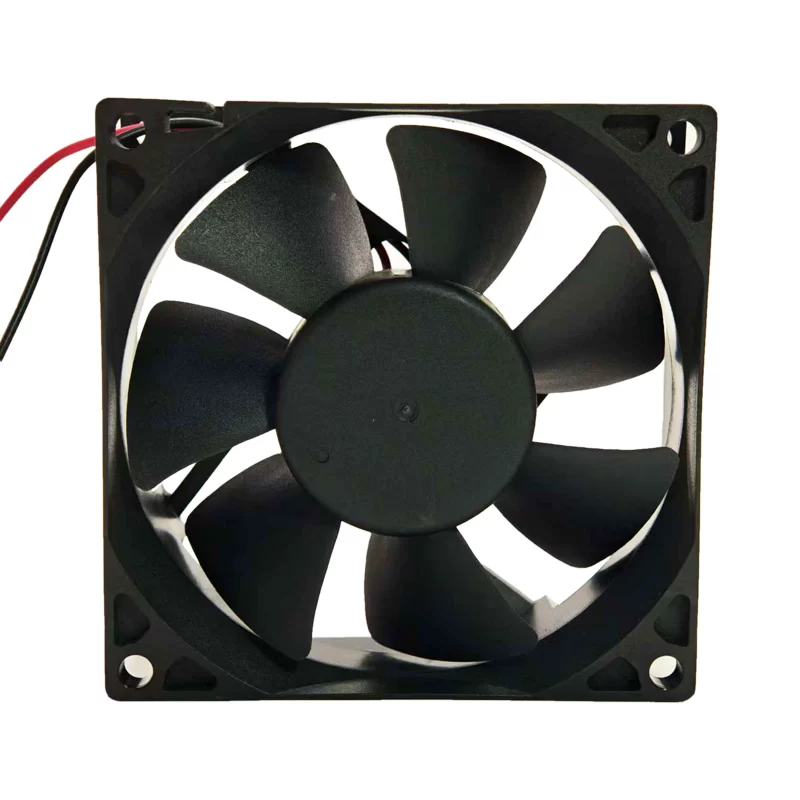

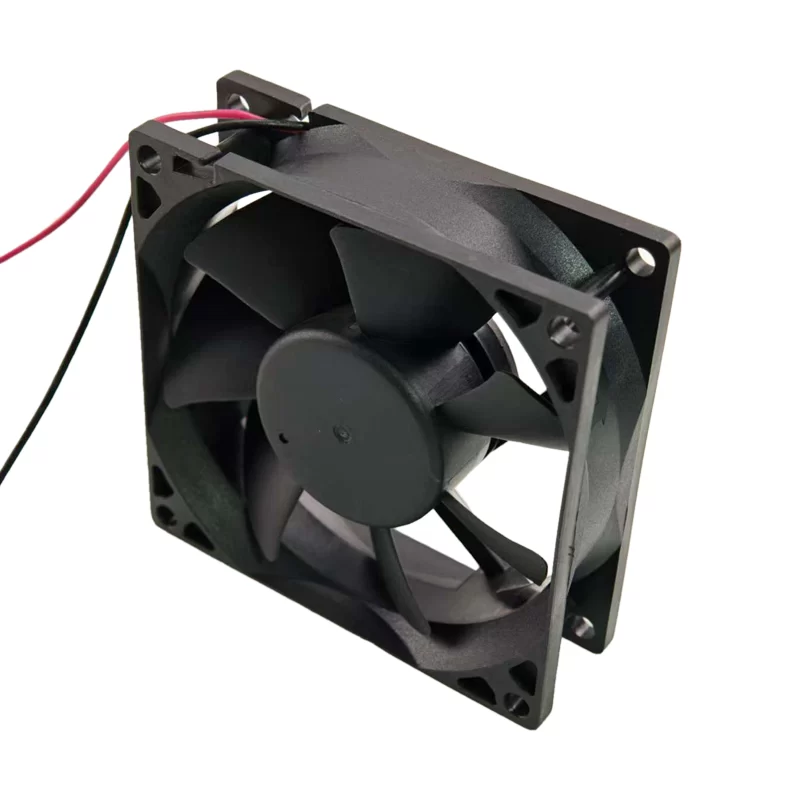

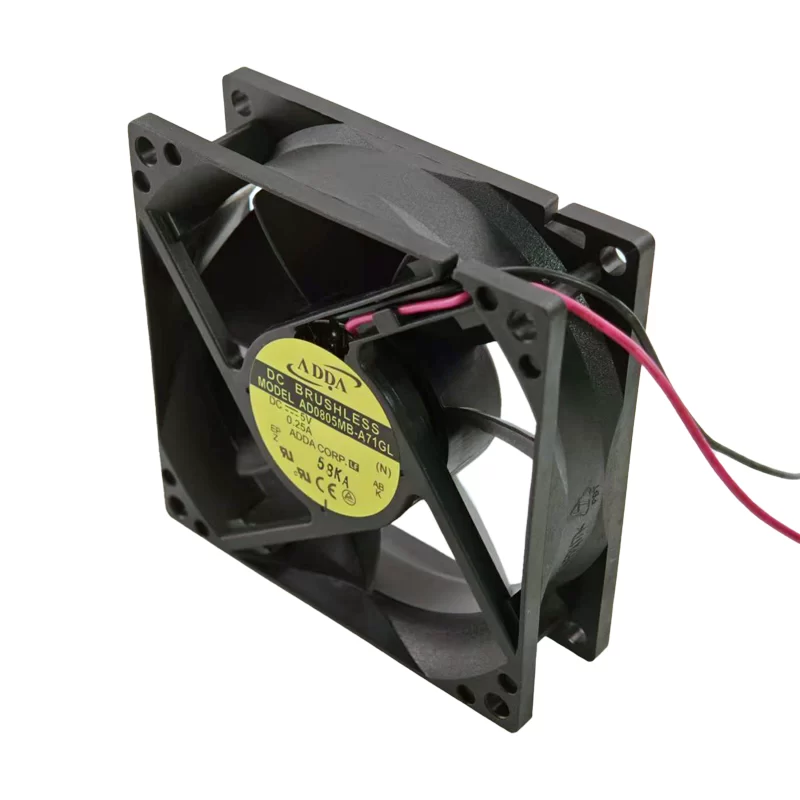

The ADDA AD0805MB-A71GL is a high-performance DC Axial Fan with dimensions of 80 x 80 x 25 mm. This 5 V DC fan, measuring 80 x 80 x 25 mm, operates at a medium speed of 2500 RPM, delivering an airflow of 55.0 m³/h (32.4 CFM) and a static pressure of 25.5 Pa. It draws a low current of 0.25 A for a power consumption of 1.25 W, and features a quiet noise level of 29.4 dB(A). Equipped with a Ball Bearing system, this fan is an excellent, low-voltage solution for cooling sensitive electronic equipment, embedded systems, and compact industrial enclosures.
AD0805MB-A71GL Fan Parameters
Model: AD0805MB-A71GL
Manufacturer: ADDA
Type: DC Axial Fan
Dimensions: 80 x 80 x 25 mm
Voltage: 5 V DC
Current: 0.25 A
Power: 1.25 W
Speed: 2500 RPM
Airflow: 55.0 m³/h
Airflow (CFM): 32.4 CFM
Static Pressure: 25.5 Pa
Noise Level: 29.4 dB(A)
Bearing Type: Ball Bearing
Weight: 82 g
Frame Material: Plastic (UL94V-0)
Impeller Material: Plastic (UL94V-0)
Termination: 2 Wires lead
Application
The ADDA AD0805MB-A71GL is optimized for high-reliability cooling in 5 V powered devices. Its balanced performance makes it suitable for desktop computer cases, DVRs, small networking devices, and any low-voltage electronic assembly that requires constant, effective air circulation and low acoustic output.
