Description

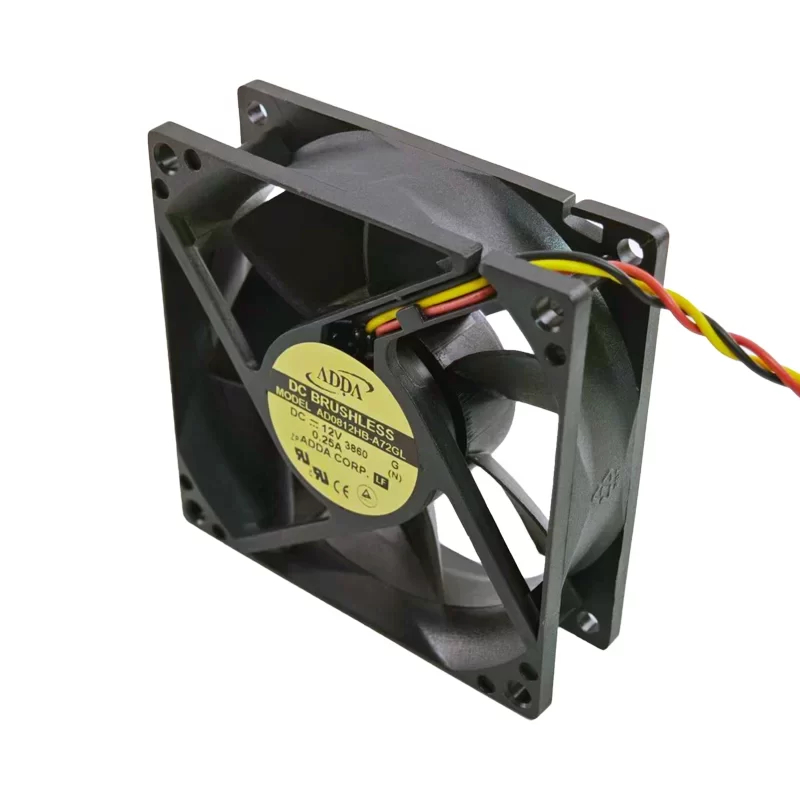

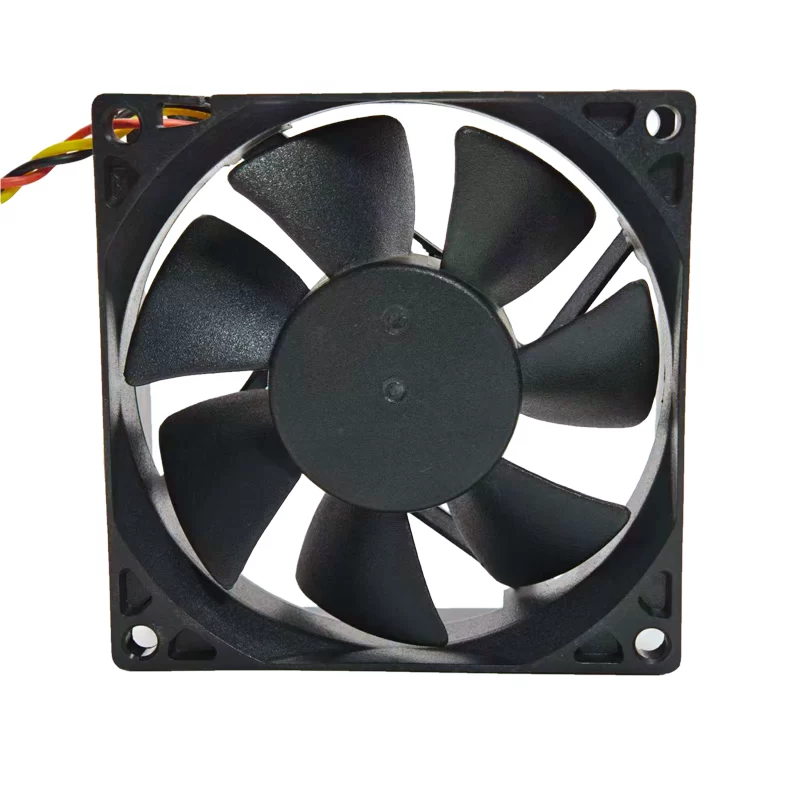

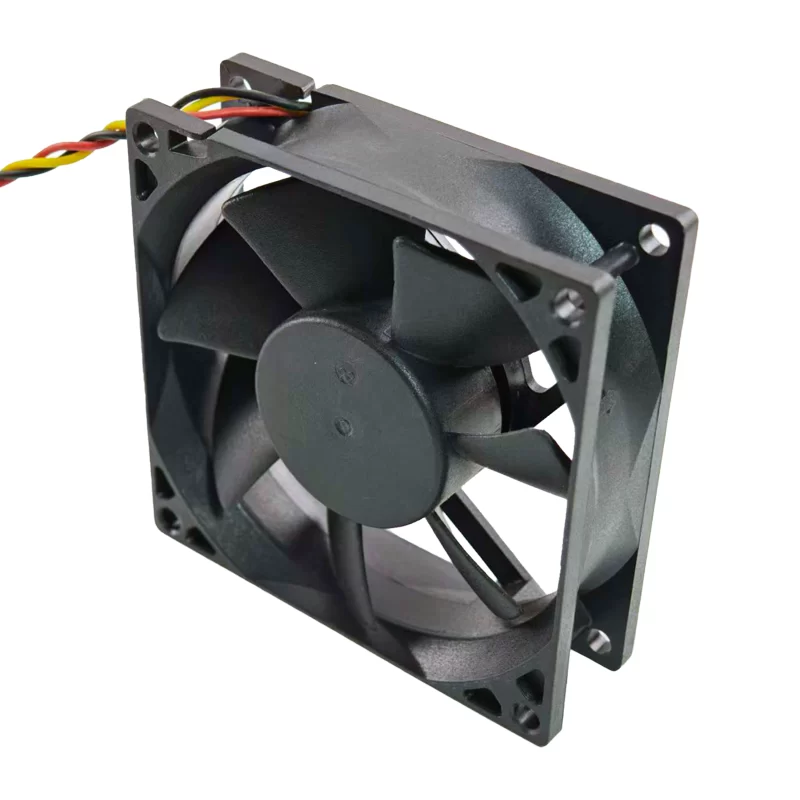

The ADDA AD0812HB-A72GL is a high-performance DC Axial Fan with dimensions of 80×80×25 mm. Operating on 12 VDC with a voltage range of 10.8 to 13.2 VDC, it delivers a robust airflow of 1.09 m3/h (38.6 CFM) at 3,010 RPM and a rated power of 3.00 W. Featuring ball bearings and 3−Wire termination (including a signal wire for monitoring), this fan offers reliable and monitored cooling for critical electronic components.
AD0812HB-A72GL Fan Parameters
Model: AD0812HB-A72GL
Manufacturer: ADDA
Fan Type: DC Axial Fan
Dimensions: 80×80×25 mm
Nominal Voltage: 12 VDC
Operating Voltage Range: 10.8 to 13.2 VDC
Rated Current: 0.25 A
Rated Power: 3.00 W
Rated Speed: 3,010 RPM
Airflow: 1.09 m3/h
Static Air Pressure: 39.8 Pa
Noise Level: 34.4 dBA
Bearing System: Ball Bearing
Motor Protection: By Impedance
Termination: 3-Wire Leads
Frame Material: UL94V−0 Glass Filled P.B.T
Blade Material: UL94V−0 Glass Filled P.B.T
Application
The AD0812HB-A72GL is highly effective for focused cooling and heat dissipation in environments where fan status monitoring is essential. Its robust design is ideal for various applications in electronic equipment, including cooling internal components of industrial control panels, inverters, power supplies, and computer systems. The 3-wire configuration typically allows for a tachometer or locked-rotor signal output, enabling system performance oversight.
