AD0812HB-F73 ADDA 12V DC Axial Fan

Description

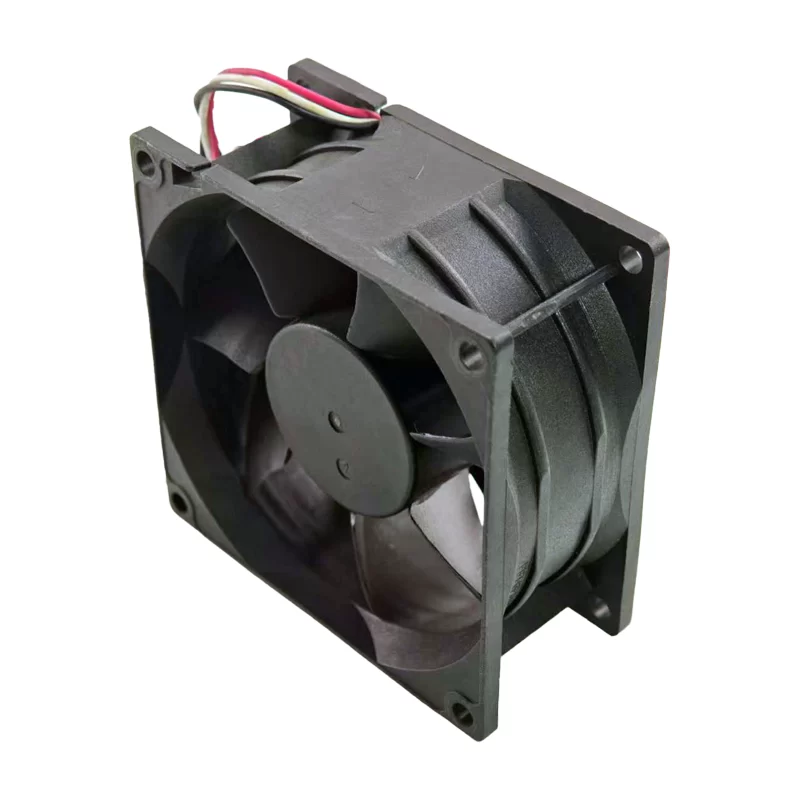

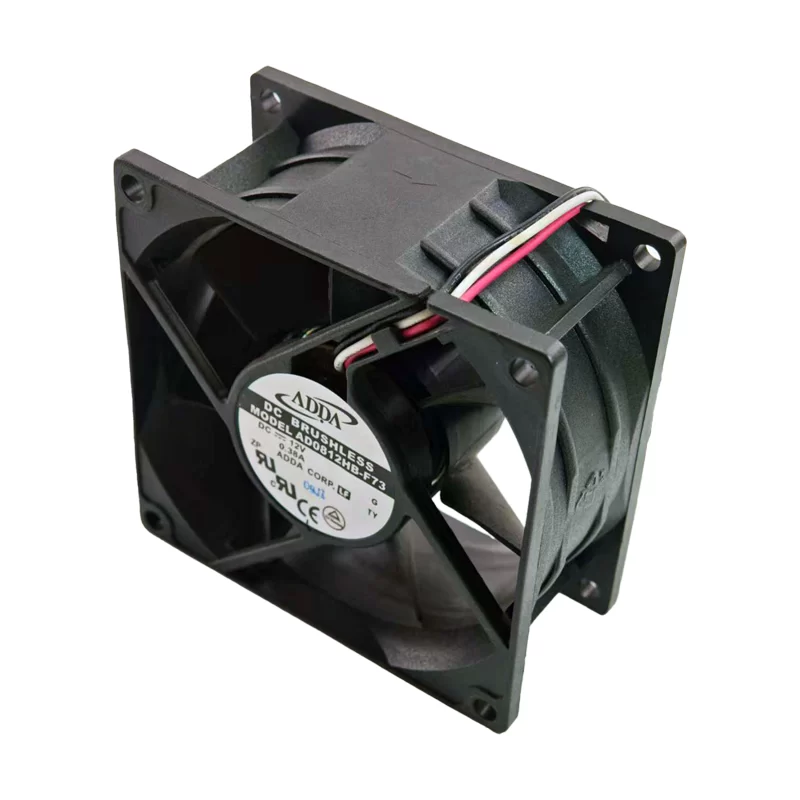

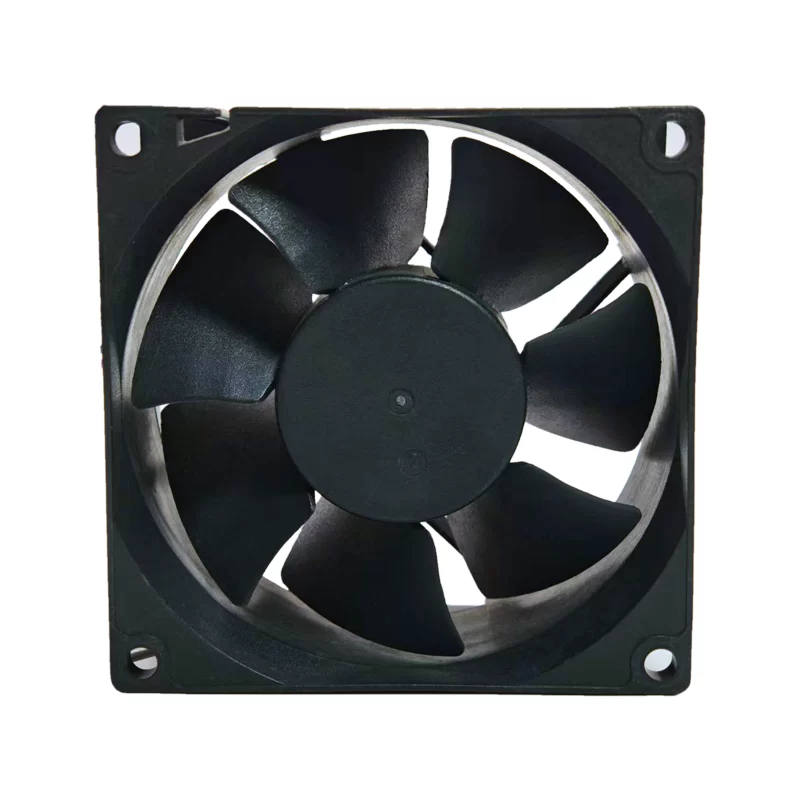

The ADDA AD0812HB-F73 is a high-performance DC Axial Fan with dimensions of 80 x 80 x 38 mm. It operates on a nominal voltage of 12 V DC, drawing 0.24 A for a power consumption of 2.88 W. Operating at 3500 RPM, the fan delivers a powerful airflow of 90.57 m3/h and achieves a high static pressure of 54.80 Pa, all while maintaining a relatively low noise level of 39.9 dBA. This robust 120 g unit utilizes a 3-wire connection, making it suitable for applications requiring high airflow density and static pressure capability, such as server cooling, network switches, and industrial control equipment.

AD0812HB-F73 Fan Parameters
Model: AD0812HB-F73
Manufacturer: ADDA
Type: DC Axial Fan
Nominal Voltage: 12 V DC
Current Draw: 0.24 A
Label Current: 0.38 A
Power Consumption: 2.88 W
Airflow: 90.57 m3/h
Airflow in CFM: 53.31 CFM
Static Pressure: 54.80 Pa
Static Pressure in inH2O: 0.22 inH2O
Speed: 3500 RPM
Noise Level: 39.9 dBA
Dimensions: 80 x 80 x 38 mm
Weight: 120 g
Termination: 3 Wires
Number of blades: 7
AC/DC: DC
Frame Material: Plastic (UL94V-0)
Impeller Material: Plastic (UL94V-0)

Application
The ADDA AD0812HB-F73 is engineered for demanding thermal management applications where high static pressure is required to overcome system impedance. This makes the fan highly effective in areas such as high-density electronic enclosures, industrial power supplies, and telecommunications infrastructure.
