Description

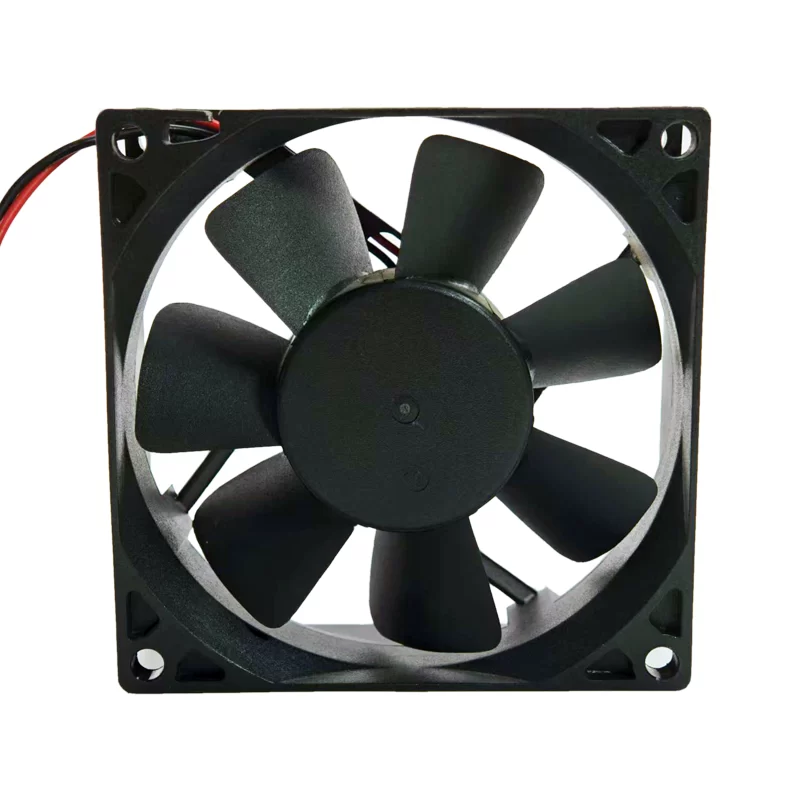

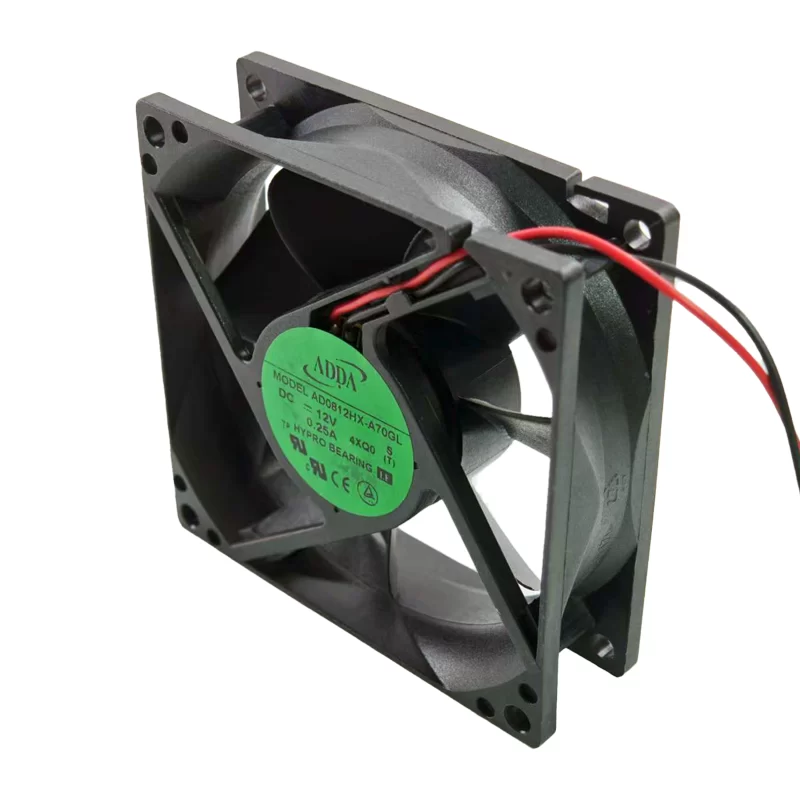

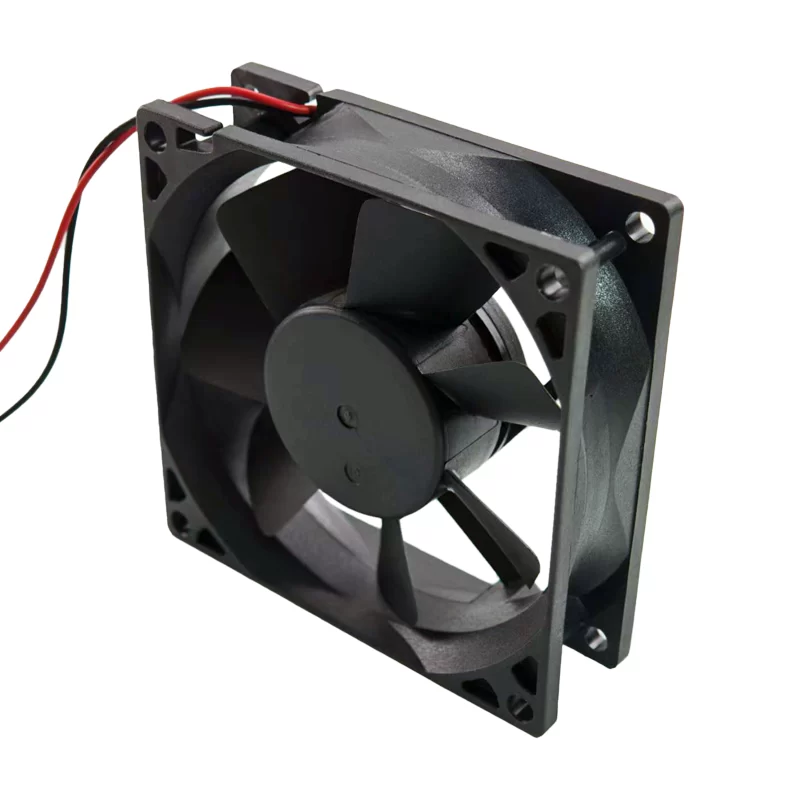

The ADDA AD0812HX-A70GL is a high-reliability DC axial fan with measuring dimensions of 80 x 80 x 25 mm, commonly used for component cooling in electronic enclosures. It operates on a 12 V DC power supply, drawing 0.25 A for a power rating of 3.00 W. This fan is engineered with Hypro Bearing technology, a sleeve-type system designed to offer a long lifespan comparable to ball bearings. At a speed of 3010 RPM, the fan generates an airflow of 38.6 CFM (65.6 m3/h) and a static pressure of 0.160 Inch H₂O while maintaining a low noise level of 34.4 dB(A). The fan is constructed with a robust Plastic (PBT) frame and impeller, and it includes integrated impedance protection against rotor lock conditions.
AD0812HX-A70GL Fan Parameters
Manufacturer: ADDA
Model: AD0812HX-A70GL
Fan Type: DC Axial Fan
Dimensions: 80 x 80 x 25 mm
Rated Voltage: 12 V DC
Current Rating: 0.25 A
Power Consumption: 3.00 W
Airflow: 38.6 CFM (65.6 m3/h)
Static Pressure: 0.160 Inch H₂O
Speed: 3010 RPM
Noise Level: 34.4 dB(A)
Bearing Type: Hypro Bearing
Frame Material: Plastic (PBT)
Impeller Material: Plastic (PBT)
Motor Protection: Impedance protected
Termination: Wire Leads
Approval: UL, TUV, CSA, CE
Application
This fan is suitable for a wide range of cooling applications, including computer cases, small power supplies, networking equipment, industrial control cabinets, and other electronic devices where quiet yet effective cooling is necessary.
