Description

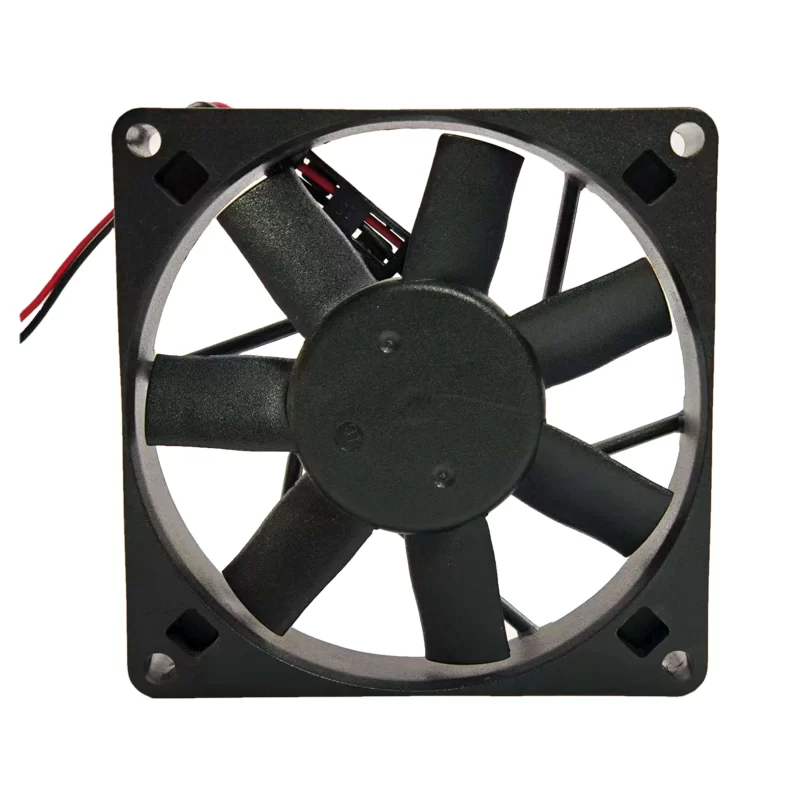

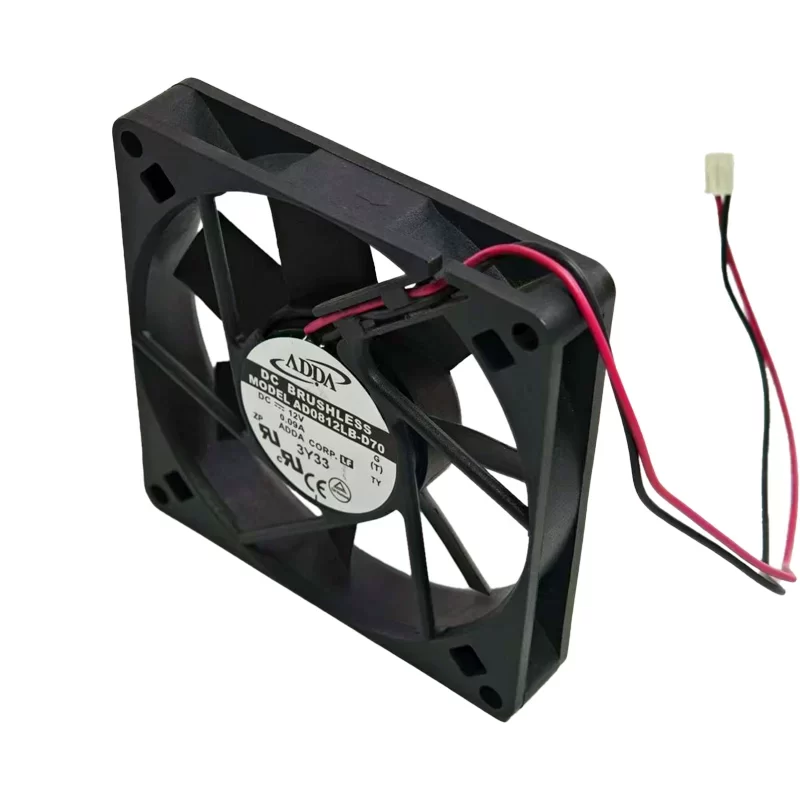

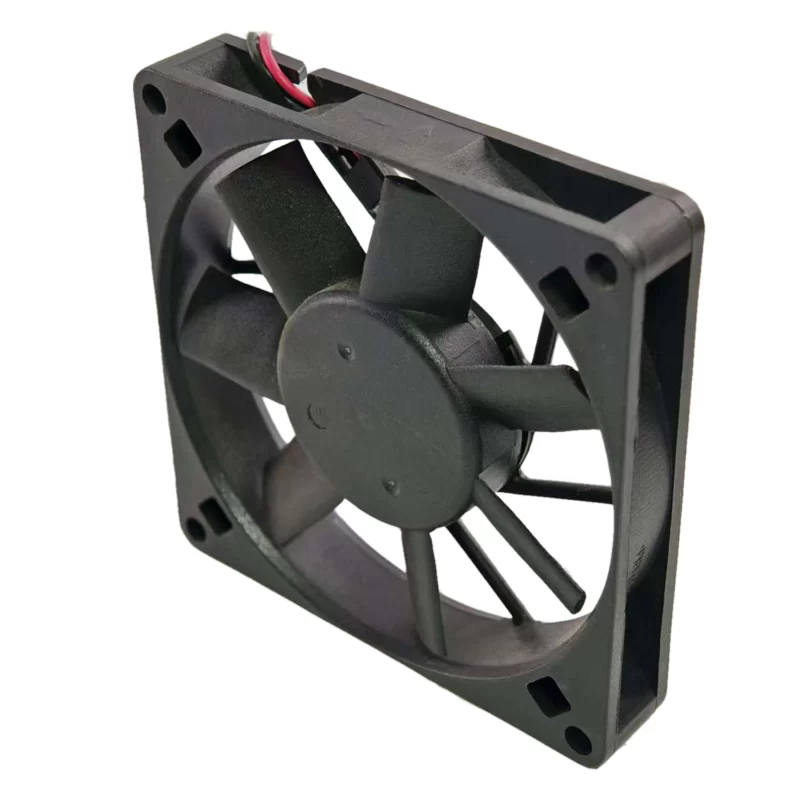

The ADDA AD0812LB-D70 is a high-performance DC Axial Fan with dimensions of 80×80×15 mm. Operating at 12 V, this Low Speed model (LB) has a Rated Current of 0.09 A and Power Consumption of 1.08 W. It delivers an Airflow of 33.98 m3/h (20.0 CFM) at a Nominal Speed of 2,000 RPM, while producing a low Noise Level of 19.6 dB(A). It features a Dual Ball Bearing system for an extended Life Expectancy.
AD0812LB-D70 Fan Parameters
Model: AD0812LB-D70
Manufacturer: ADDA
Type: DC Axial Fan
Dimensions: 80×80×15 mm
Operating Voltage: 12 V
Rated Current: 0.09 A
Power Consumption: 1.08 W
Nominal Speed: 2,000 RPM
Airflow: 33.98 m3/h (20.0 CFM)
Static Pressure: 12.45 Pa (0.050 inH2O)
Noise Level: 19.6 dB(A)
Bearing Type: Dual Ball
Motor Design: Brushless DC Motor
Termination: 2-Wire Leads
Number of blades: 7
Frame Material: Plastic UL94V-0
Impeller Material: Plastic UL94V-0
Life Expectancy: 70,000 hours (at 40 °C)
Application
The AD0812LB-D70 is primarily used in compact electronic enclosures, desktop computer chassis, low-profile heat sink cooling, 1U and 2U server power supplies, and various small-scale industrial control devices where quiet, continuous airflow and space-saving design are required.
