Description

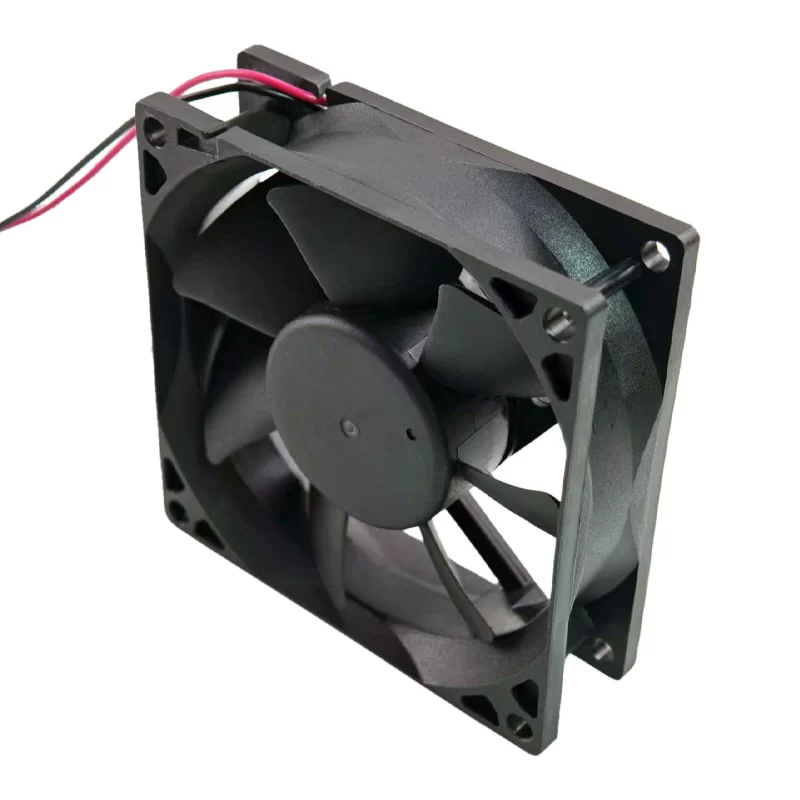

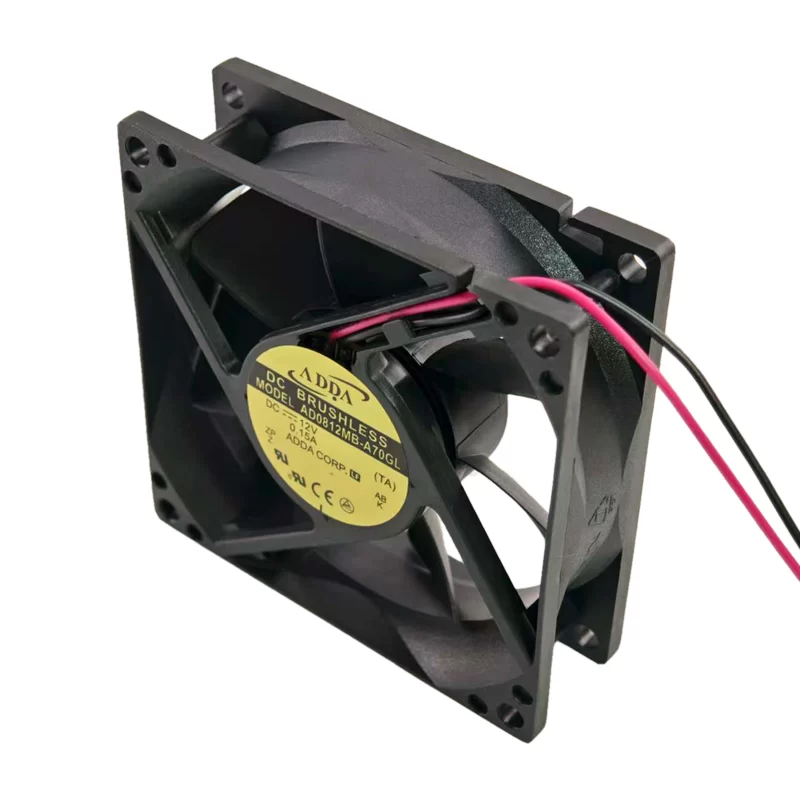

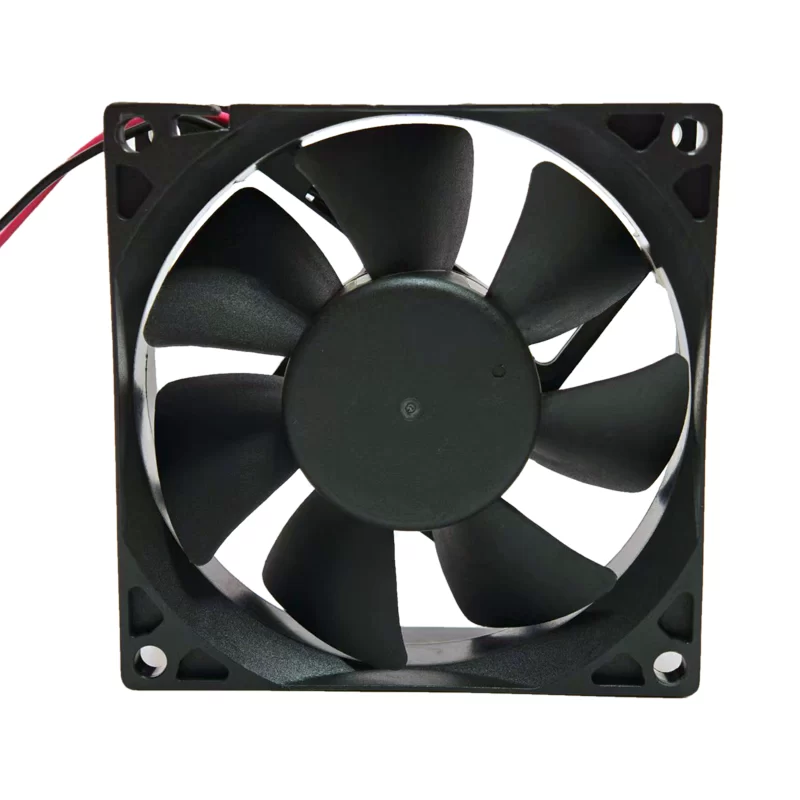

The ADDA AD0812MB-A70GL is a high-performance DC Axial Fan with dimensions of 80 x 80 x 25 mm and operates on a nominal 12 V DC voltage. This fan, constructed with plastic materials, features a robust Ball Bearing system to ensure long-term reliability. Key specifications include a nominal current draw of 0.15 A, a power consumption of 1.8 W, and an air flow of 53.35 m3/h. With a moderate speed of 2440 RPM and low noise level of 28.3 dBA, this model is ideally suited for personal computers, compact electronic devices, and ventilation within small to medium-sized enclosures.
AD0812MB-A70GL Fan Parameters
Model: AD0812MB-A70GL
Manufacturer: ADDA
Type: Axial Fan
Nominal Voltage: 12 V DC
Current Draw: 0.15 A
Power Consumption: 1.8 W
Airflow: 53.35 m3/h
Static Pressure: 28.3 Pa
Speed: 2440 RPM
Noise Level: 28.3 dBA
Dimensions: 80 x 80 x 25 mm
Weight: 86 g
Bearing Type: Ball Bearing
Frame Material: Plastic (UL94V-0)
Impeller Material: Plastic (UL94V-0)
Termination: 2 Wire Leads
AC/DC: DC
Application
The AD0812MB-A70GL is a general-purpose cooling fan widely used in computer systems (PC cases and CPUs), network hardware (routers and switches), small industrial control panels, and other applications where quiet, reliable spot cooling is essential.
