Description

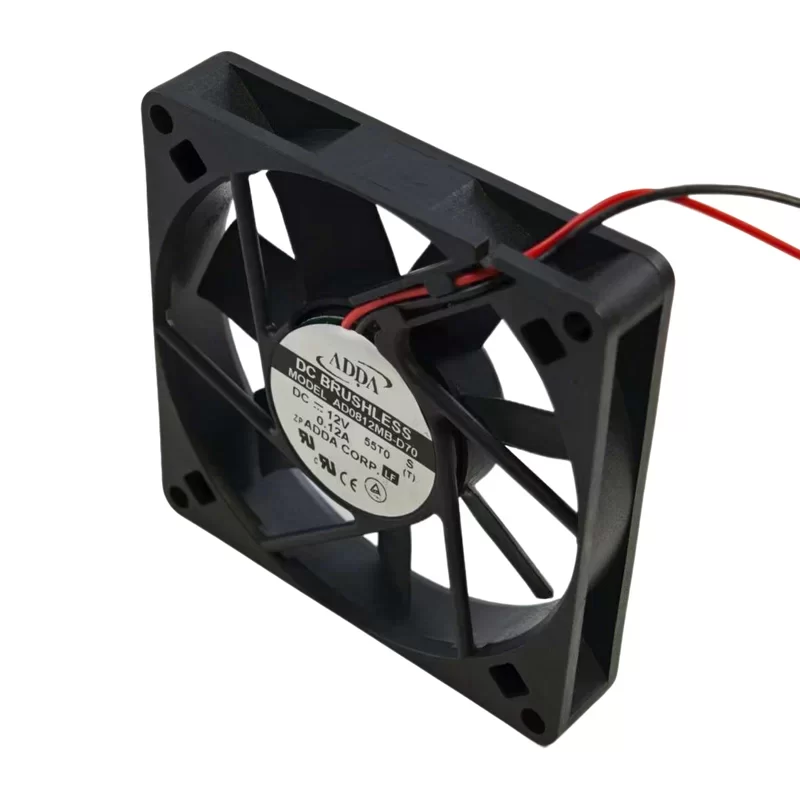

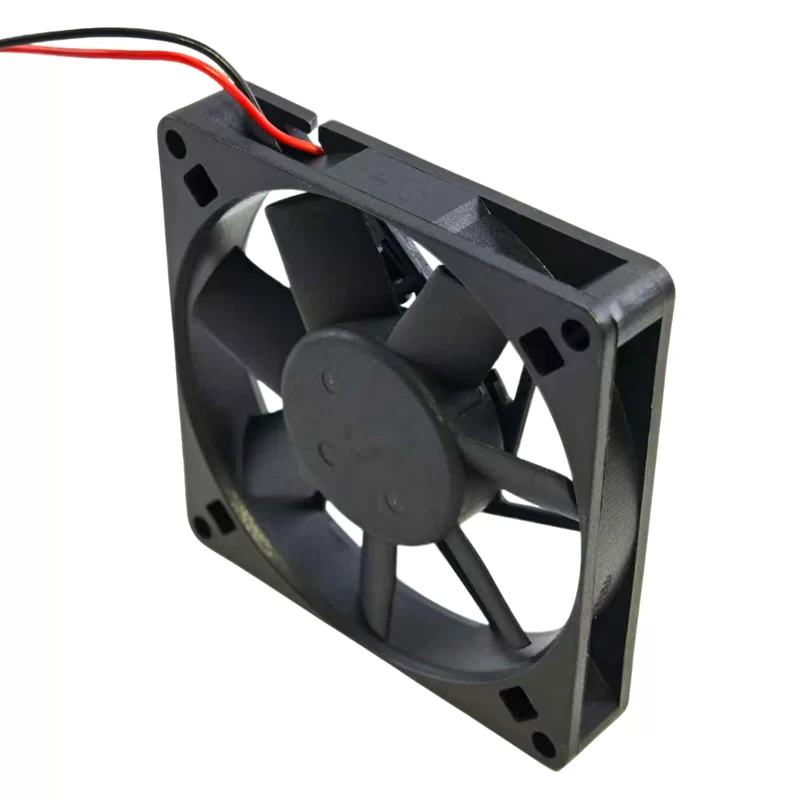

The ADDA AD0812MB-D70 is a DC axial fan with dimensions of 80 x 80 x 15 mm. It operates on 12V DC, drawing 0.12 A of current and consuming 1.44 W of power. This fan runs at a speed of 2440 RPM, delivering an airflow of 22.4 CFM with a static pressure of 0.083 inch H₂O. It produces a low noise level of 26 dB(A). The fan features a ball bearing and is terminated with two-wire leads. It weighs 63 g, is constructed from plastic, and is certified by UL, CUL, TUV, and CE. It is designed to operate within a temperature range of -10 °C to 60 °C.
AD0812MB-D70 Fan Parameters
Manufacturer: ADDA
Model: AD0812MB-D70
Fan Type: DC Axial Fan
Dimensions: 80 x 80 x 15 mm
Rated Voltage: 12V DC
Current Rating: 0.12 A
Power Consumption: 1.44 W
Airflow: 22.4 CFM
Static Pressure: 0.083 inch H₂O
Speed: 2440 RPM
Noise Level: 26 dB(A)
Weight: 63 g
Bearing Type: Ball Bearing
Termination: 2-Wire Leads
Housing Material: Plastic
Impeller Material: Plastic
Operating Temperature: -10 °C to 60 °C
Certifications: UL, CUL, TUV, CE
Application
The AD0812MB-D70 fan is particularly suited for inverter cooling. It is also suitable for a wide range of applications that require a balance of efficient cooling and quiet operation in a compact form factor, such as in computer equipment, electronics enclosures, and medical devices.
