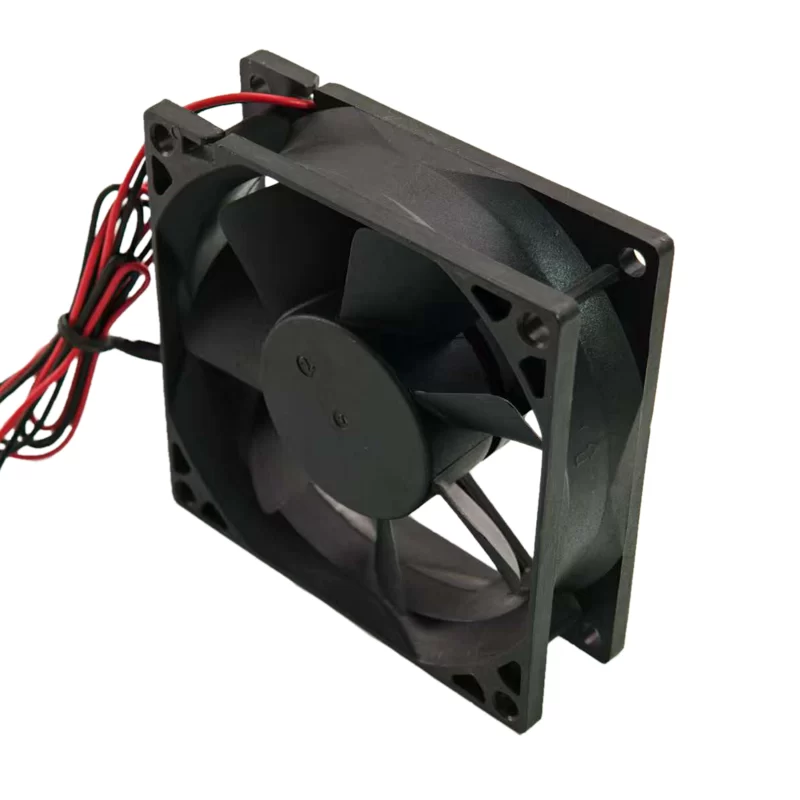

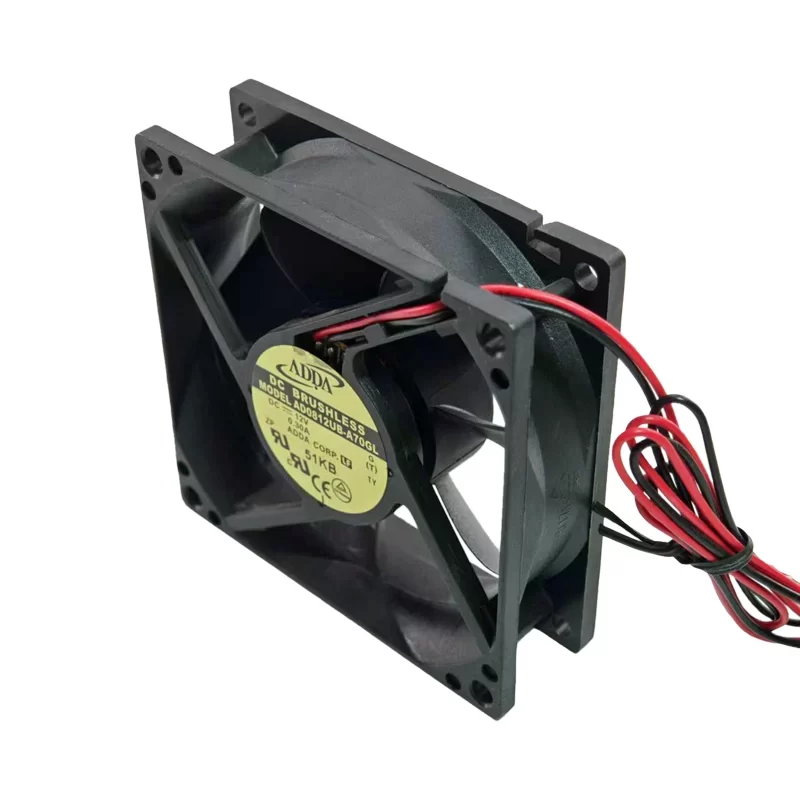

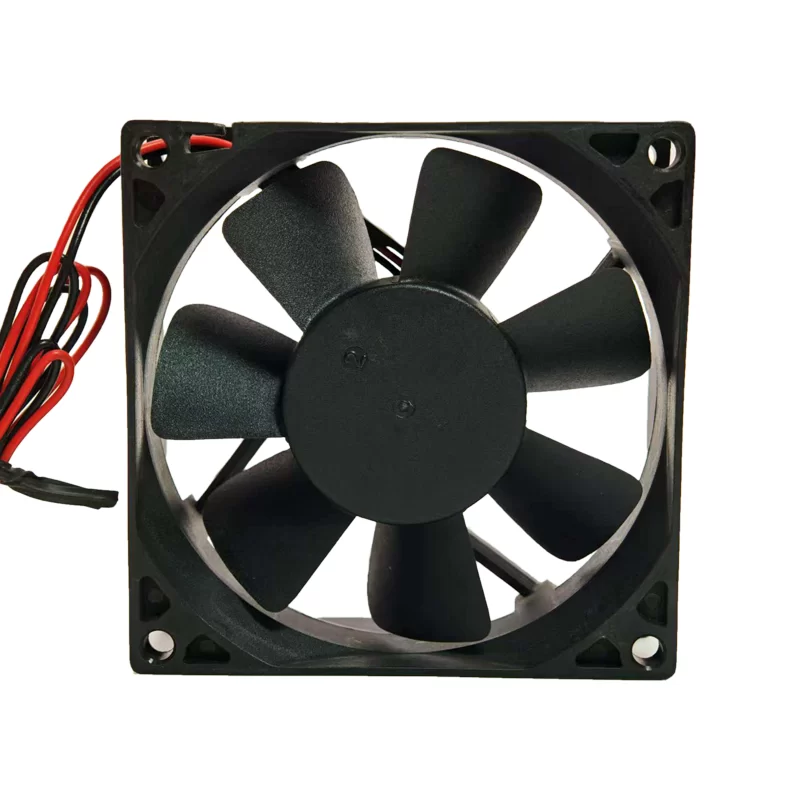

AD0812UB-A70GL ADDA 12V DC Axial Fan

Description

The ADDA AD0812UB-A70GL is a high-performance DC Axial Fan with dimensions of 80×80×25 mm. Operating at 12 V, this Ultra-High Speed fan has a Rated Current of 0.30 A and a Power Consumption of 3.60 W. It utilizes a Ball Bearing system and operates at a Nominal Speed of 3,400 RPM. It delivers an Airflow of 74.4 m3/h (43.8 CFM) and Static Pressure of 47.3 Pa (0.190 inAq), with a Noise Level of 40.0 dB(A).

AD0812UB-A70GL Fan Parameters
Model: AD0812UB-A70GL
Manufacturer: ADDA
Type: DC Axial Fan
Dimensions: 80×80×25 mm
Operating Voltage: 12 V
Rated Current: 0.30 A
Power Consumption: 3.60 W
Nominal Speed: 3,400 RPM
Airflow: 74.4 m3/h (43.8 CFM)
Static Pressure: 47.3 Pa (0.190 inAq)
Noise Level: 40.0 dB(A)
Bearing Type: Ball Bearing
Termination: 2-Wire Leads
Number of blades: 7
Frame Material: Plastic (UL94V-0)
Impeller Material: Plastic (UL94V-0)
Weight: 86 g
Safety Approvals: UL, cUL, TUV, CE
RoHS Status: Compliant

Application
The AD0812UB-A70GL is a highly capable cooling solution for high-density electronic equipment that demands significant airflow within a standard 80 mm footprint. It is commonly used in servers, power supplies, industrial control systems, and telecommunication gear where effective heat dissipation is critical, and is suitable for general equipment cooling applications.
