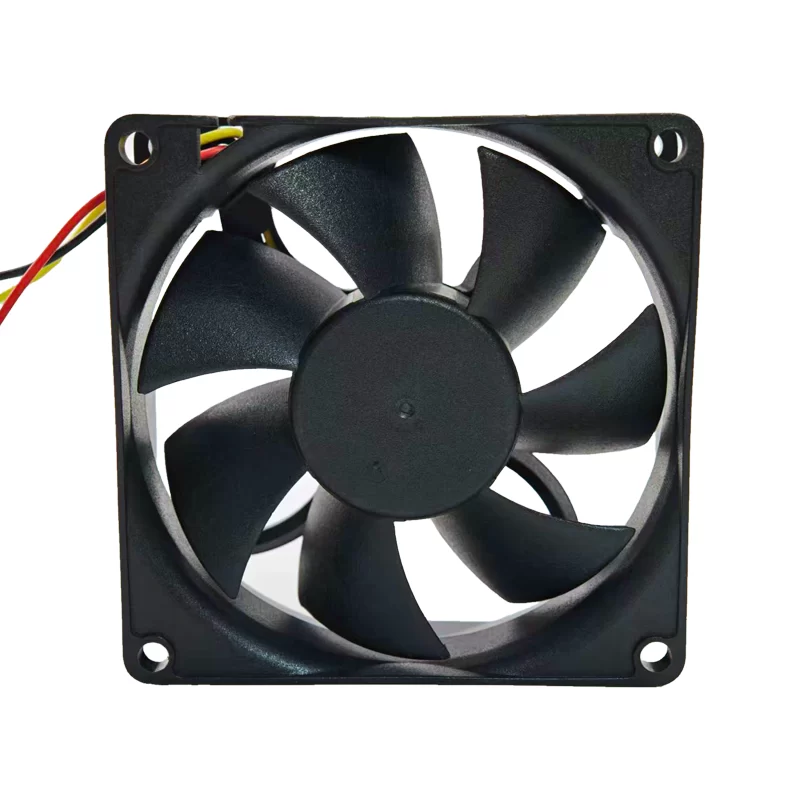

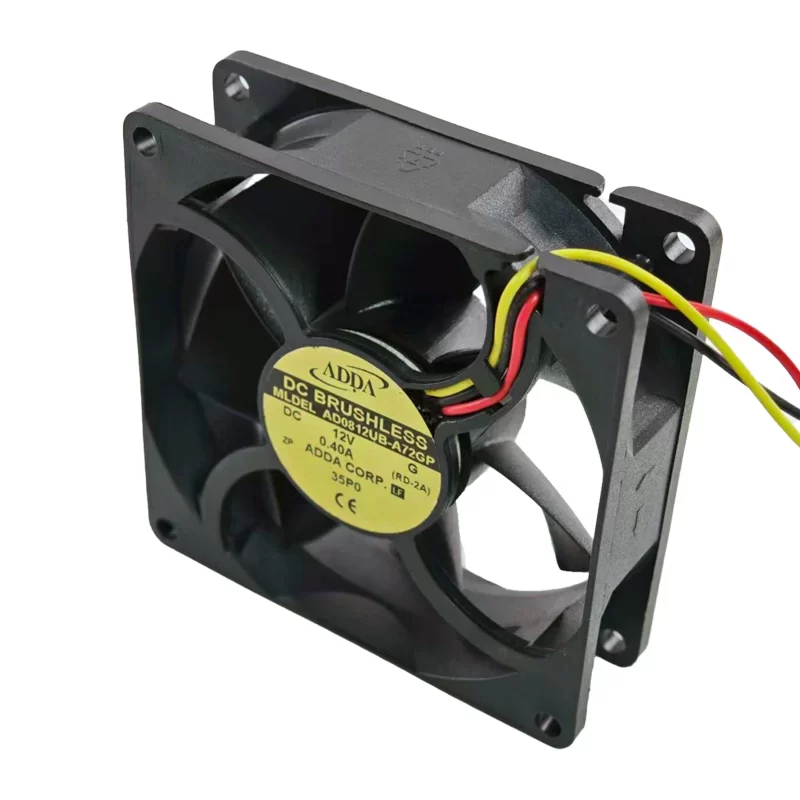

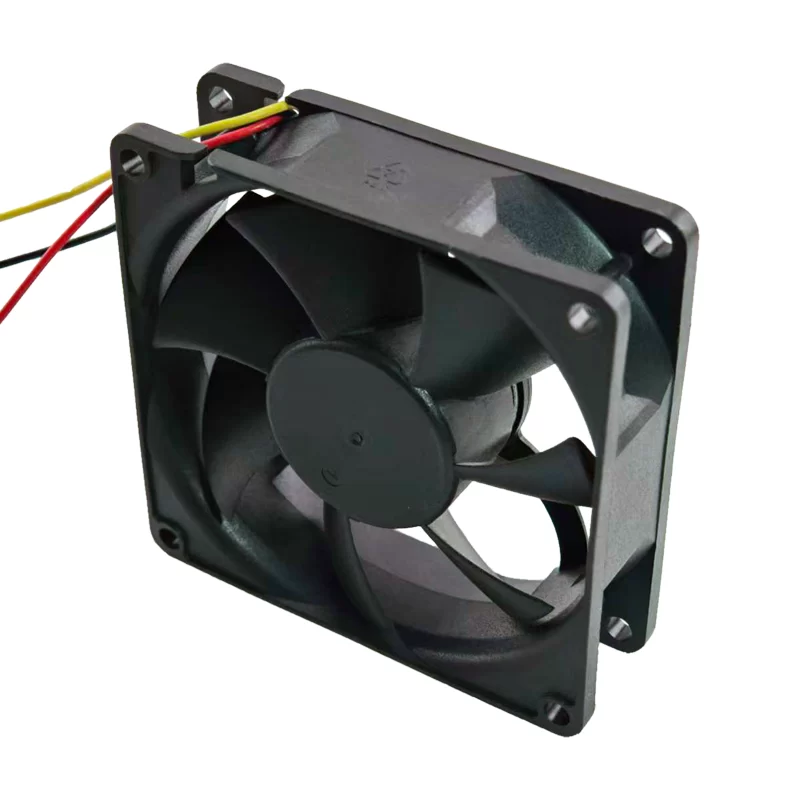

AD0812UB-A72GP ADDA 12V DC Axial Fan

Description

The ADDA AD0812UB-A72GP is a high-performance DC Axial Fan with dimensions of 80×80×25 mm. This fan operates on 12 VDC, delivering a high airflow of approximately 85.0 m3/h (50.0 CFM) and a static pressure of approximately 69.7 Pa (0.279 inH2O) at a speed of 3,900 RPM. It utilizes a Ball Bearing system, features a UL94V−0 rated PBT housing, and has a typical rated current of 0.45 A.

AD0812UB-A72GP Fan Parameters
Model: AD0812UB-A72GP
Manufacturer: ADDA
Fan Type: DC Axial Fan
Dimensions: 80×80×25 mm
Nominal Voltage: 12 VDC
Rated Current: 0.45 A
Label Current: 0.40 A
Rated Power: 5.40 W
Rated Speed: 3,900 RPM
Airflow: 85.0 m3/h (50.0 CFM)
Static Pressure: 69.7 Pa (0.279 inH2O)
Noise Level: 41.0 dB(A)
Bearing System: Ball Bearing
Material – Housing: Polybutylene Terephthalate (PBT, UL94V−0)
Termination: 3-Wire Leads
Weight: 86 g

Application
The AD0812UB-A72GP is typically used in applications requiring an ultra-high-speed cooling solution within the 80 mm form factor, such as cooling personal computers, high-density networking routers and switches, small servers, data storage arrays (NAS/SAN), and industrial control equipment.
