Description

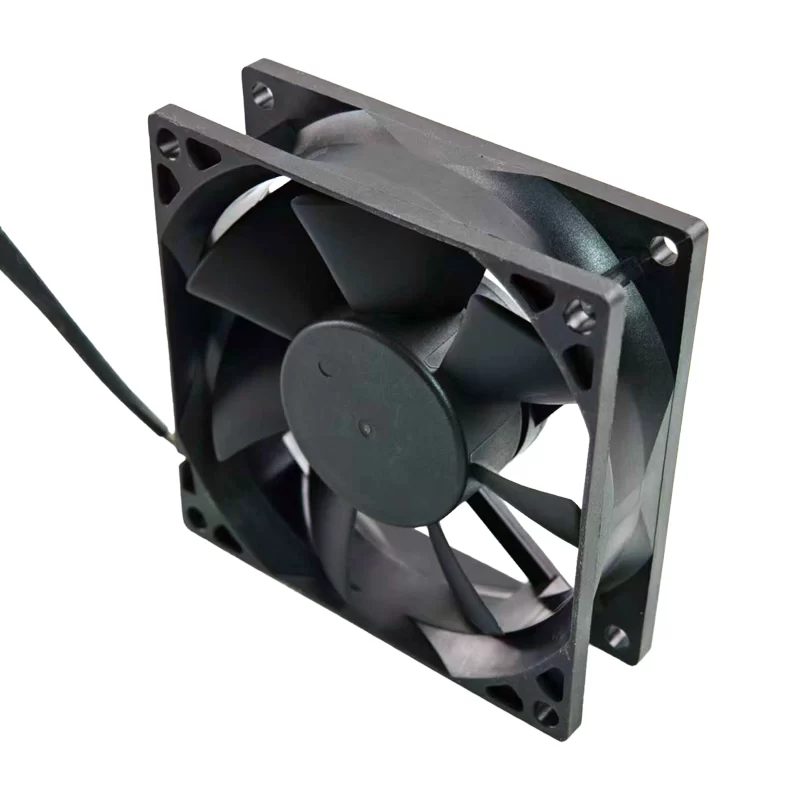

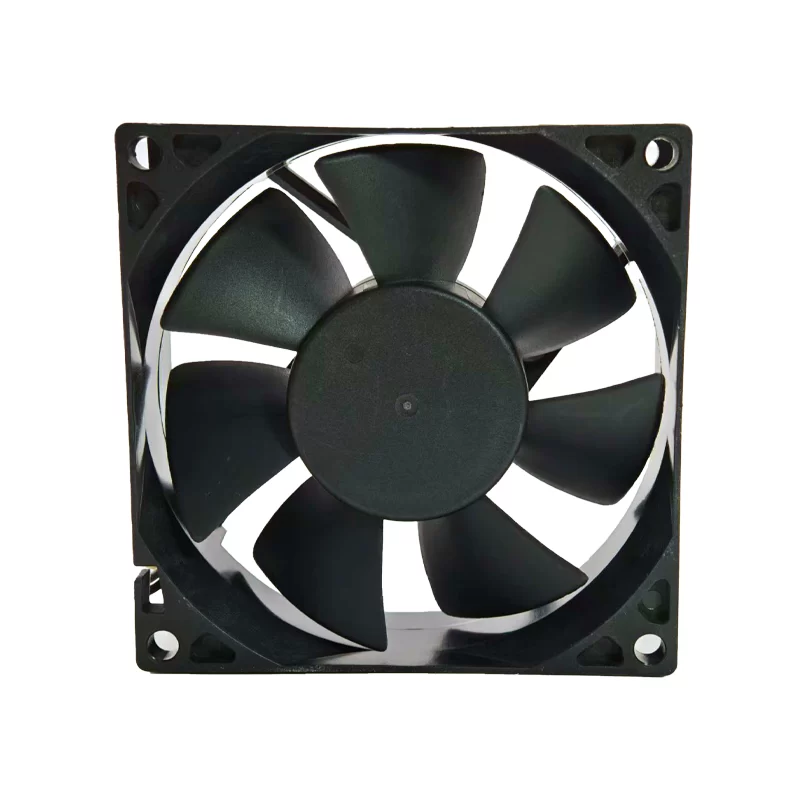

The ADDA AD0812UX-A76GL is a high-performance DC Axial Fan with measuring dimensions of 80×80×25 mm. It operates on a nominal 12 VDC voltage, drawing 0.30 A of current. With an Ultra High (U) speed rating, this fan achieves a speed of 3700 RPM and provides an airflow of 78.15 m3/h (46 CFM). It features ADDA’s proprietary Hypro bearing system for extended life and is typically used in desktop computer cases, power supplies, and network devices requiring a powerful 80 mm cooling solution.
AD0812UX-A76GL Fan Parameters
Model: AD0812UX-A76GL
Manufacturer: ADDA
Fan Type: DC Axial Fan
Dimensions: 80×80×25 mm
Nominal Voltage: 12 VDC
Rated Current: 0.30 A
Power Consumption: 3.6 W
Rated Speed: 3700 RPM
Airflow: 78.15 m3/h
Bearing System: Hypro Bearing
Termination: 3-Wire Connector
Number of blades: 7
Frame Material: Plastic (UL94V-0)
Impeller Material: Plastic (UL94V-0)
Application
The AD0812UX-A76GL is an Ultra High speed 80 mm fan suited for thermal management in applications that require significant airflow within a standard fan footprint. Its typical uses include computer case cooling, ATX power supplies, mid-range servers, and network equipment where balancing high performance with reliability is necessary.
