Description

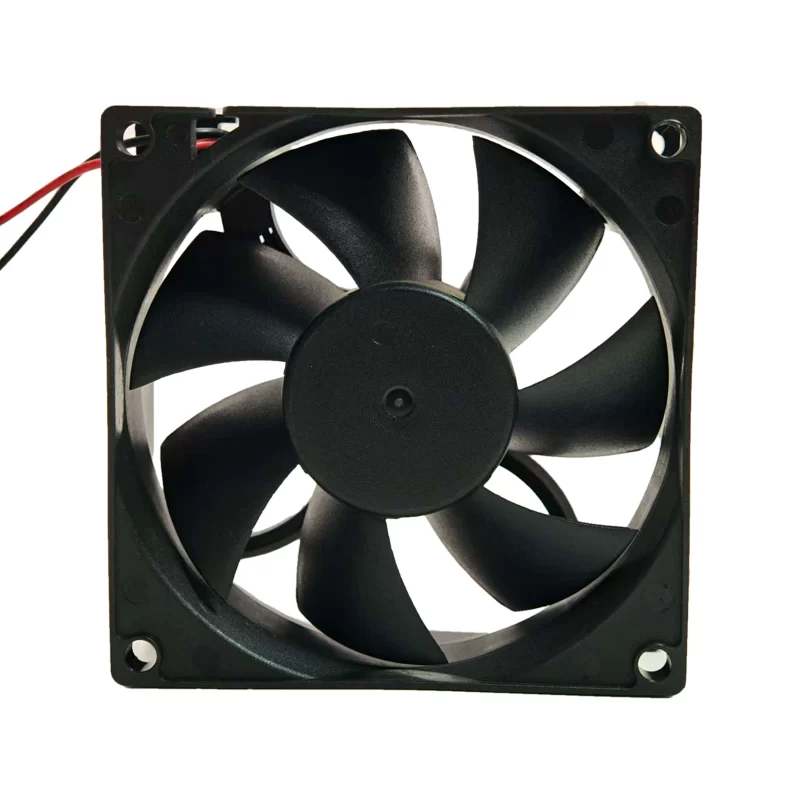

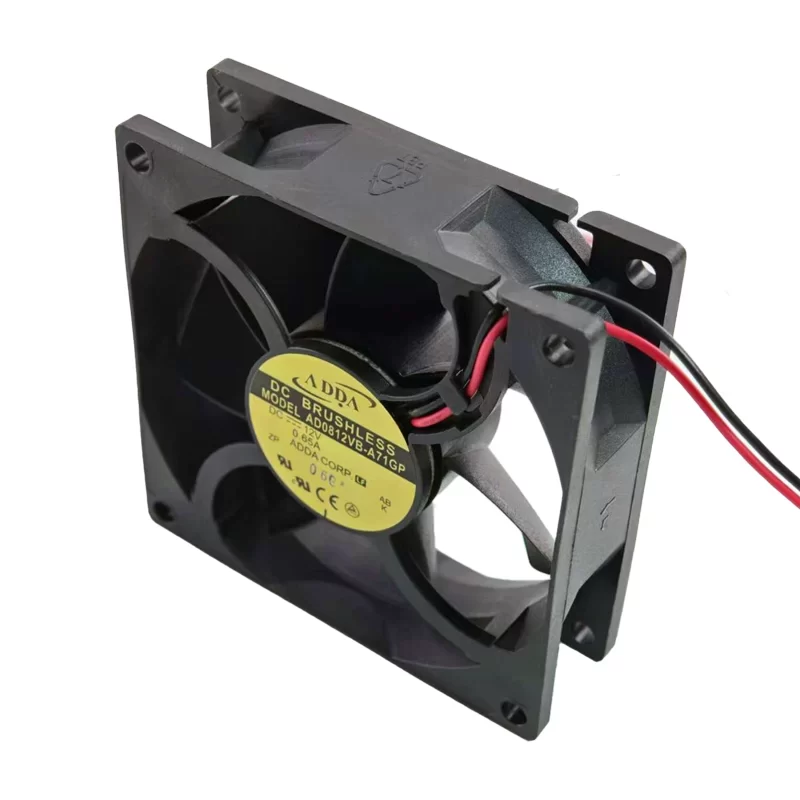

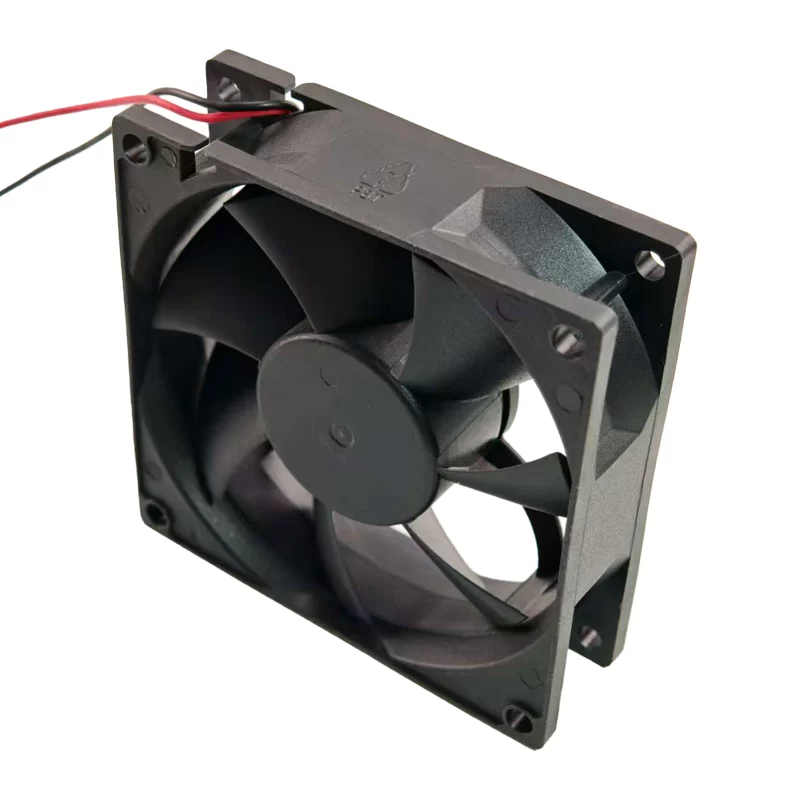

The ADDA AD0812VB-A71GP is a high-performance DC Axial Fan with dimensions of 80×80×25 mm. Operating at 12 V, this Very High Speed fan has a Rated Current of 0.53 A and a Power Consumption of 6.36 W. It utilizes a Ball Bearing system and operates at a high Nominal Speed of 5,000 RPM. It delivers an exceptional Airflow of 122.3 m3/h (72.0 CFM) and Static Pressure of 91.4 Pa (0.360 inAq), with a Noise Level of 49.0 dB(A).
AD0812VB-A71GP Fan Parameters
Model: AD0812VB-A71GP
Manufacturer: ADDA
Type: DC Axial Fan
Dimensions: 80×80×25 mm
Operating Voltage: 12 V
Rated Current: 0.65 A
Power Consumption: 7.8 W
Nominal Speed: 5,000 RPM
Airflow: 122.3 m3/h (72.0 CFM)
Static Pressure: 91.4 Pa (0.360 inAq)
Noise Level: 49.0 dB(A)
Bearing Type: Ball Bearing
Number of blades: 7
Termination: 2-Wire Leads
Frame Material: Plastic (UL94V-0)
Impeller Material: Plastic (UL94V-0)
Weight: 95 g
Safety Approvals: UL, cUL, TUV, CE
RoHS Status: Compliant
Application
The AD0812VB-A71GP is engineered for severe cooling environments requiring maximum thermal dissipation in a standard 80 mm form factor. Its very high speed and pressure make it ideal for highly restricted applications, including high-end server equipment, networking switches, blade servers, high-wattage power supplies, and industrial machinery where air must be pushed through dense heat sinks or enclosures.
