AD0812VB-A72GP ADDA 12V DC Axial Fan 80x25mm

Description

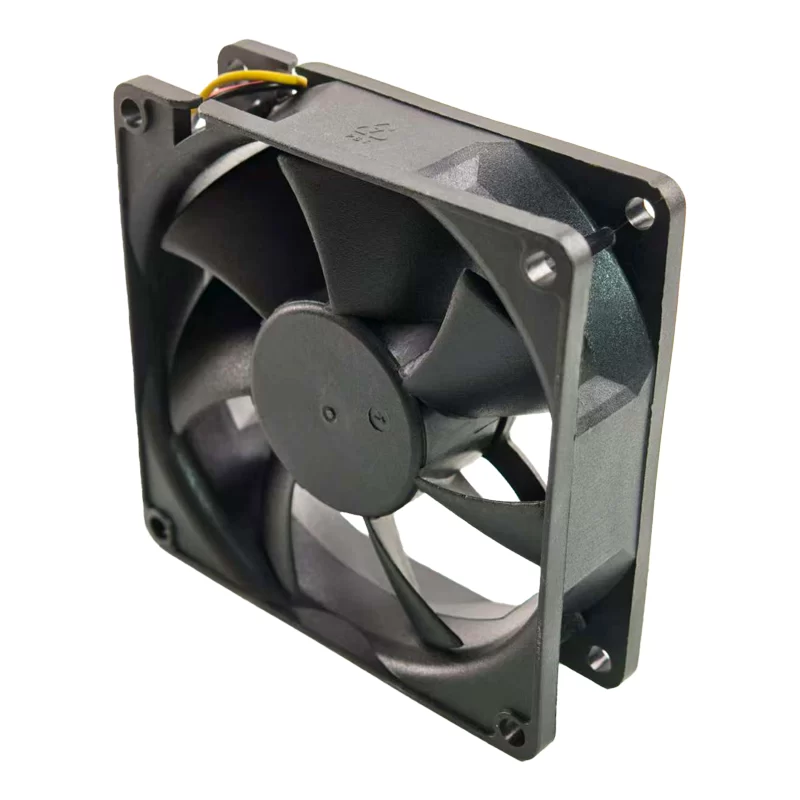

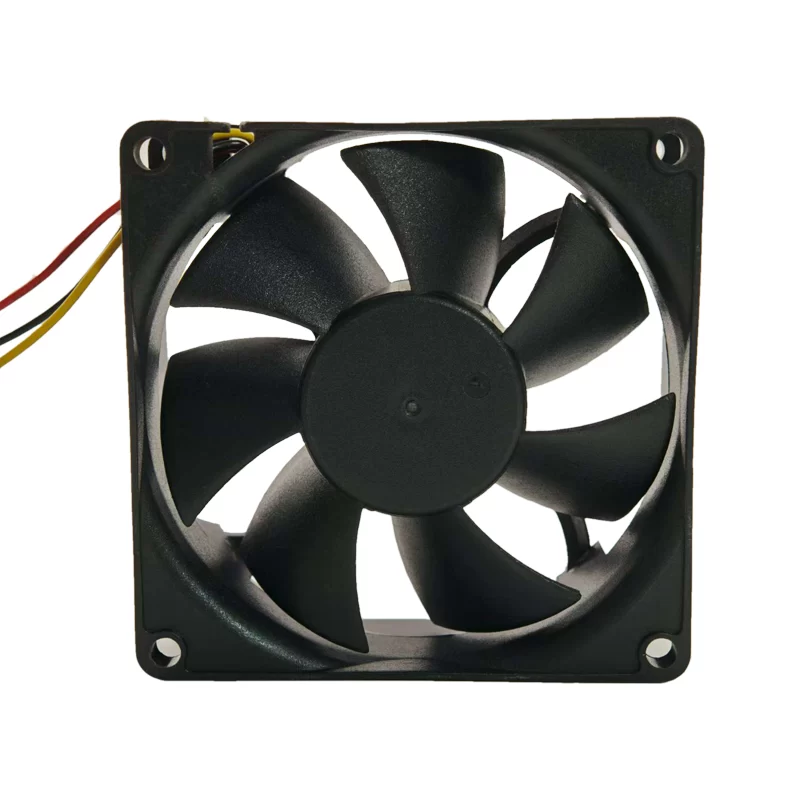

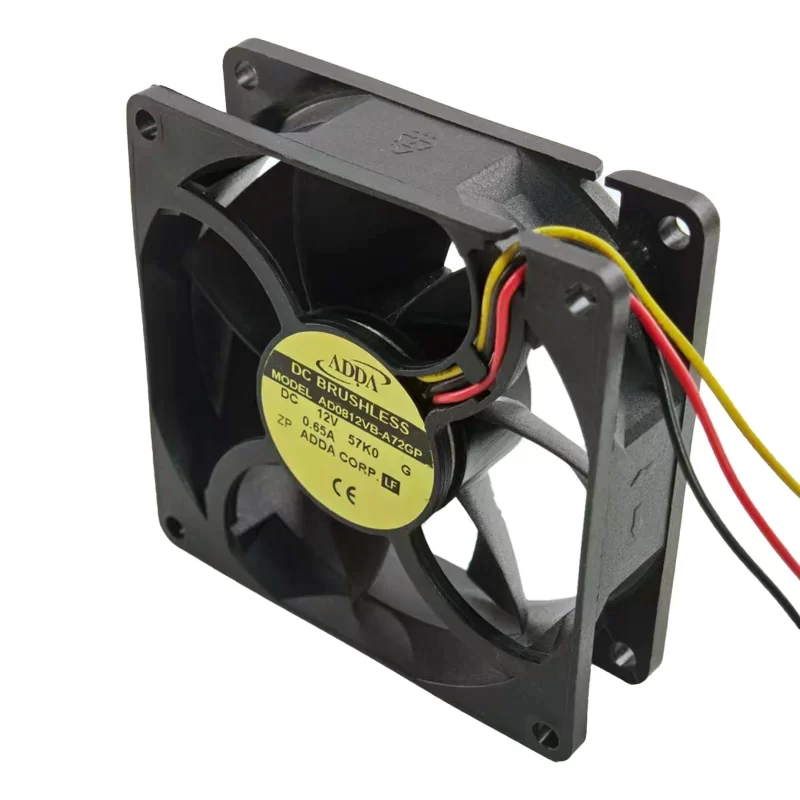

The ADDA AD0812VB-A72GP is a specialized, high-power DC axial fan, measuring 80 x 80 x 25 mm. Designed for applications demanding high thermal dissipation, this fan operates on a 12 V DC supply with a high current rating of 0.65 A, resulting in a power consumption of 7.8 W. It uses a durable double ball bearing system, providing an estimated life expectancy of 70,000 hours. The fan features a 3-Wire termination and is constructed with a robust Plastic (PBT) frame and impeller. This model is commonly used in server, chassis, and industrial equipment cooling where a high level of performance is required.

AD0812VB-A72GP Fan Parameters
Manufacturer: ADDA
Model: AD0812VB-A72GP
Fan Type: DC Axial Fan
Dimensions: 80 x 80 x 25 mm
Rated Voltage: 12 V DC
Current Rating: 0.65 A
Power Consumption: 7.8 W
Bearing Type: Double Ball Bearing
Frame Material: Plastic (PBT)
Impeller Material: Plastic (PBT)
Life Expectancy: 70000 Hours
Termination: 3-Wire Leads

Application
The high-power rating of the AD0812VB-A72GP makes it suitable for heavy-duty thermal management in environments such as servers, solar inverters, industrial power supplies, and chassis cooling where effective heat removal is critical.
