Description

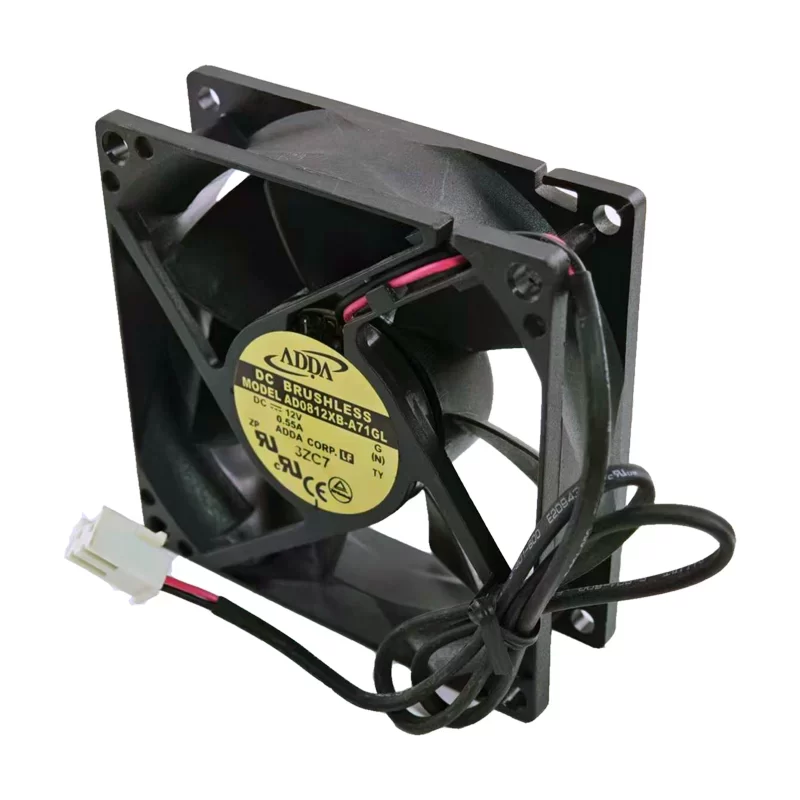

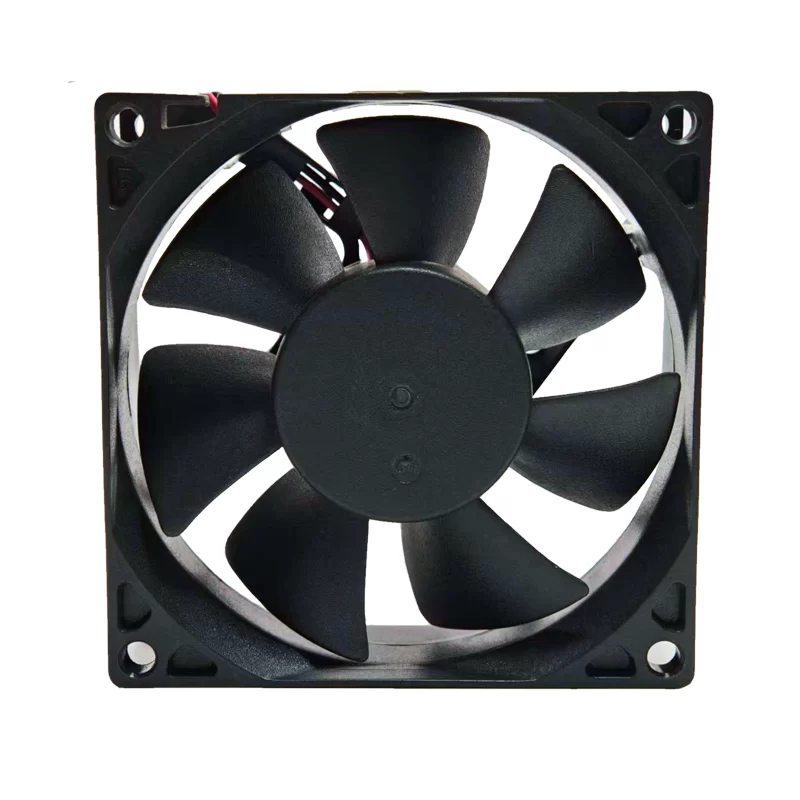

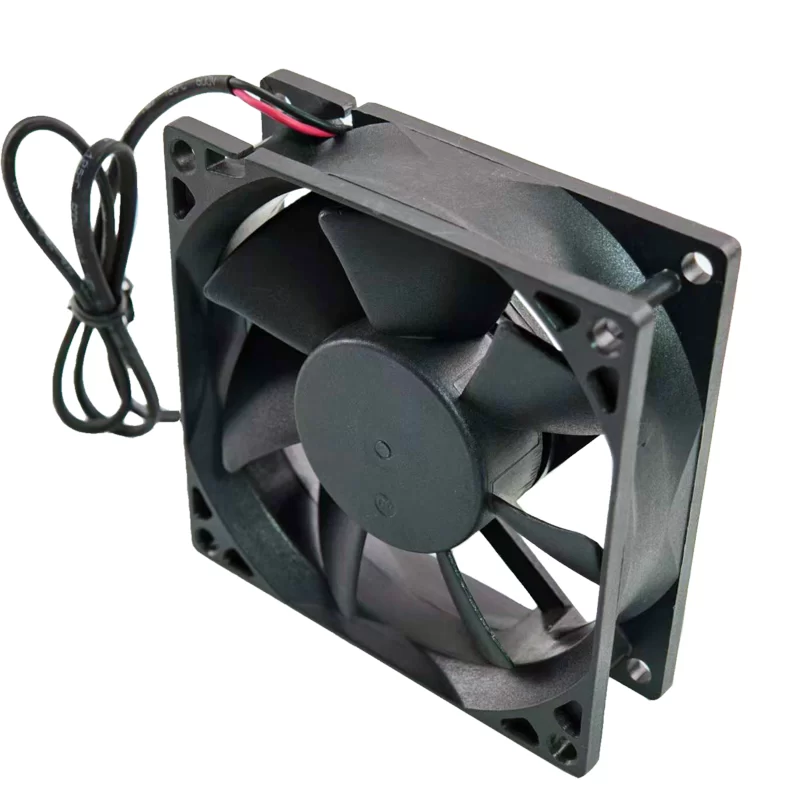

The ADDA AD0812XB-A71GL is a high-performance DC Axial Fan with dimensions of 80×80×25 mm. This Ultra-High Speed fan operates on 12 VDC, delivering a high airflow of approximately 96.9 m3/h (57.0 CFM) and a static pressure of approximately 109.2 Pa (0.439 inH2O) at a speed of 4,200 RPM. It features a Ball Bearing system, a typical rated current of 0.55 A, and includes an internal IC for motor protection.
AD0812XB-A71GL Fan Parameters
Model: AD0812XB-A71GL
Manufacturer: ADDA
Fan Type: DC Axial Fan
Dimensions: 80×80×25 mm
Nominal Voltage: 12 VDC
Rated Current: 0.55 A
Rated Power: 6.6 W
Rated Speed: 4,200 RPM
Airflow: 96.9 m3/h (57.0 CFM)
Static Pressure: 109.2 Pa (0.439 inH2O)
Noise Level: 42.5 dB(A)
Bearing System: Ball Bearing
Termination: 2-Wire Leads
Weight: 86 g
Number of blades: 7
Frame Material: Plastic (UL94V-0)
Impeller Material: Plastic (UL94V-0)
Application
The AD0812XB-A71GL is specifically designed for applications requiring maximum cooling performance and high static pressure against impedance, making it suitable for high-end desktop computers, server systems, networking hardware, telecommunication racks, and industrial automation equipment with confined spaces or dense components.
