Description

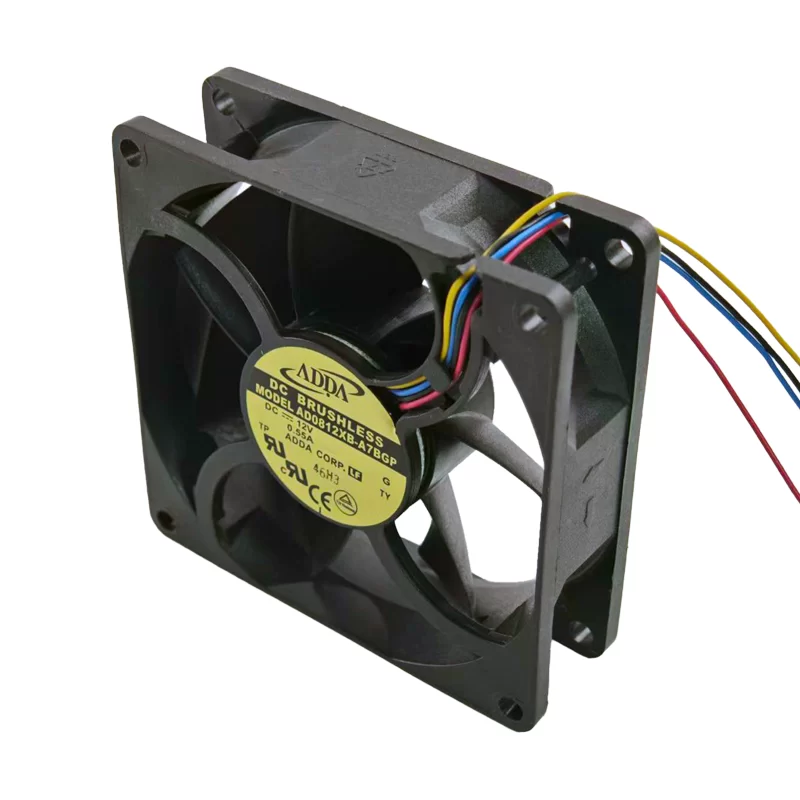

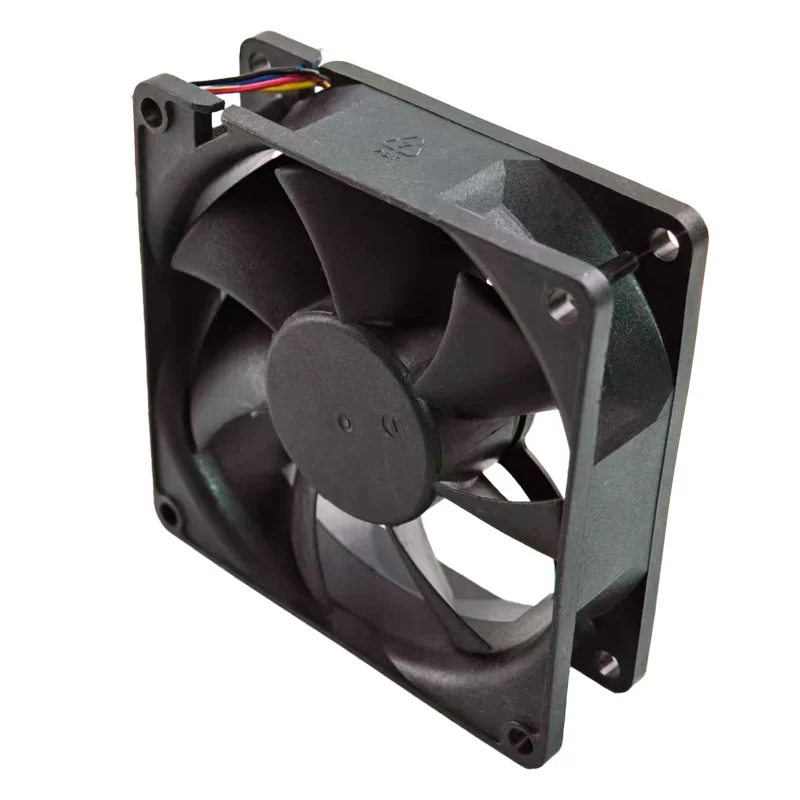

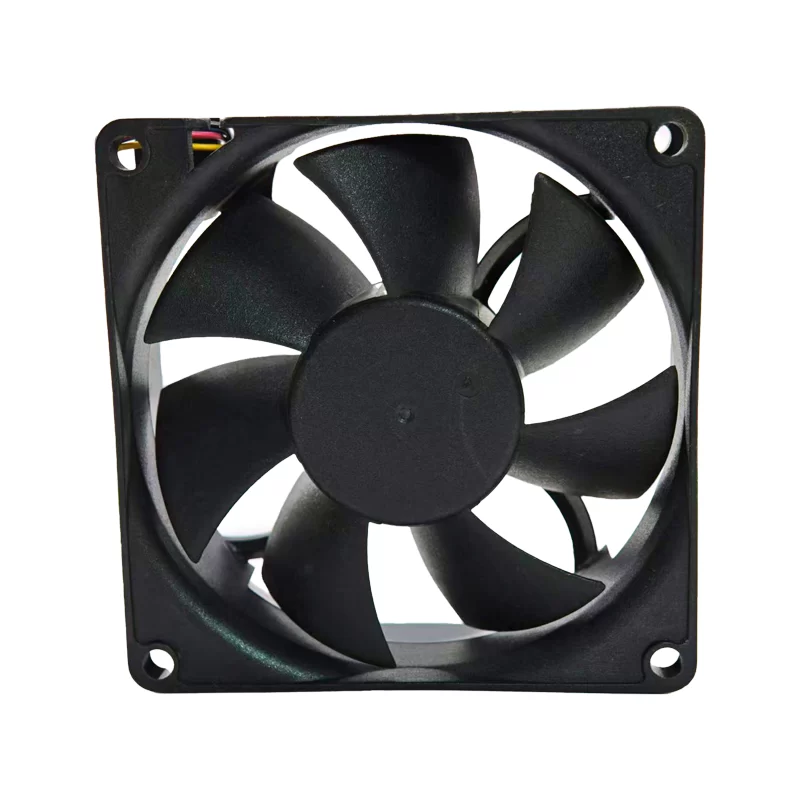

The ADDA AD0812XB-A7BGP is a high-performance DC Axial Fan with dimensions of 80×80×25 mm. This Over Ultra-High speed (X) fan operates on a nominal 12 VDC voltage, drawing 0.35 A of current for a power consumption of 4.20 W. It uses a Ball Bearing system, reaches a speed of 4,500 RPM, and delivers a substantial airflow of 113.8 m3/h (67.0 CFM) with a high static pressure of 75.9 Pa (0.30 inH2O). The fan generates a noise level of 46.0 dB(A) and features 4-wire termination, typically including PWM speed control.
AD0812XB-A7BGP Fan Parameters
Model: AD0812XB-A7BGP
Manufacturer: ADDA
Fan Type: DC Axial Fan
Dimensions: 80×80×25 mm
Nominal Voltage: 12 VDC
Rated Current: 0.35 A
Label Current: 0.55A
Rated Power: 4.20 W
Rated Speed: 4,500 RPM
Airflow: 113.8 m3/h (67.0 CFM)
Static Pressure: 75.9 Pa (0.30 inH2O)
Noise Level: 46.0 dB(A)
Bearing System: Ball Bearing
Termination: 4-Wire Leads
Frame Material: Plastic (UL94V−0)
Impeller Material: Plastic (UL94V−0)
Number of blades: 7
Motor Design: Brushless DC Motor
Application
The AD0812XB-A7BGP is an Over Ultra-High speed axial fan designed for systems requiring maximum cooling performance and precise speed management. Its high airflow and pressure make it ideal for telecom equipment, high-end server chassis cooling, industrial PCs, and power supplies where a balance between high thermal extraction and speed modulation is necessary.
