Description

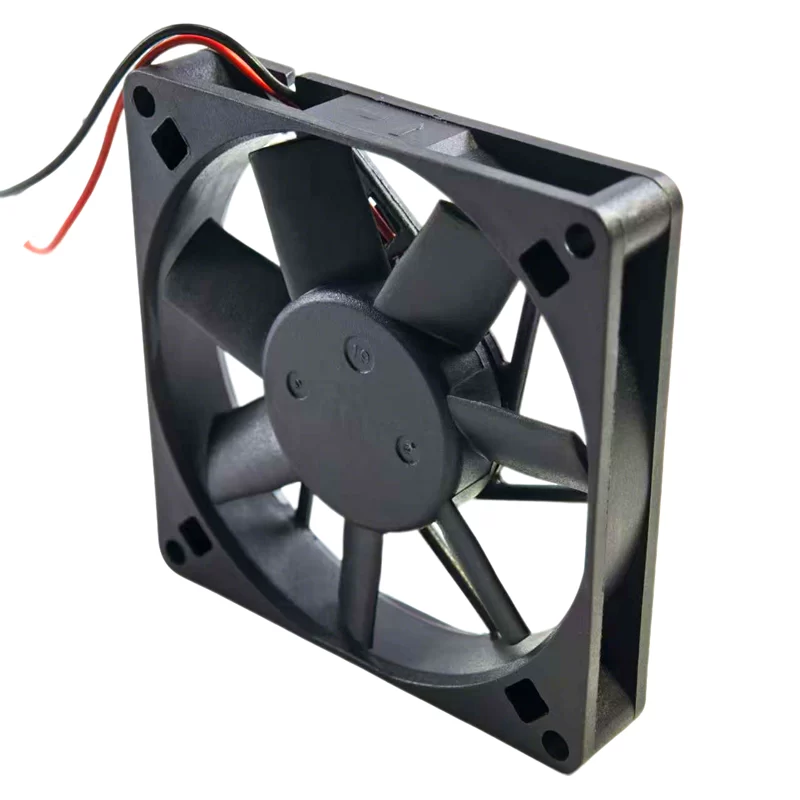

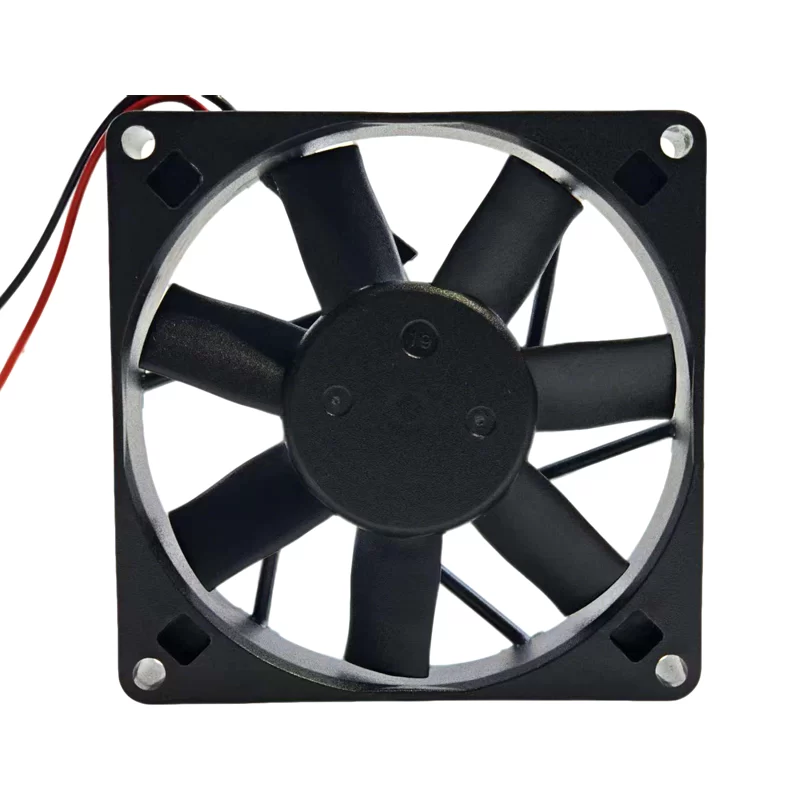

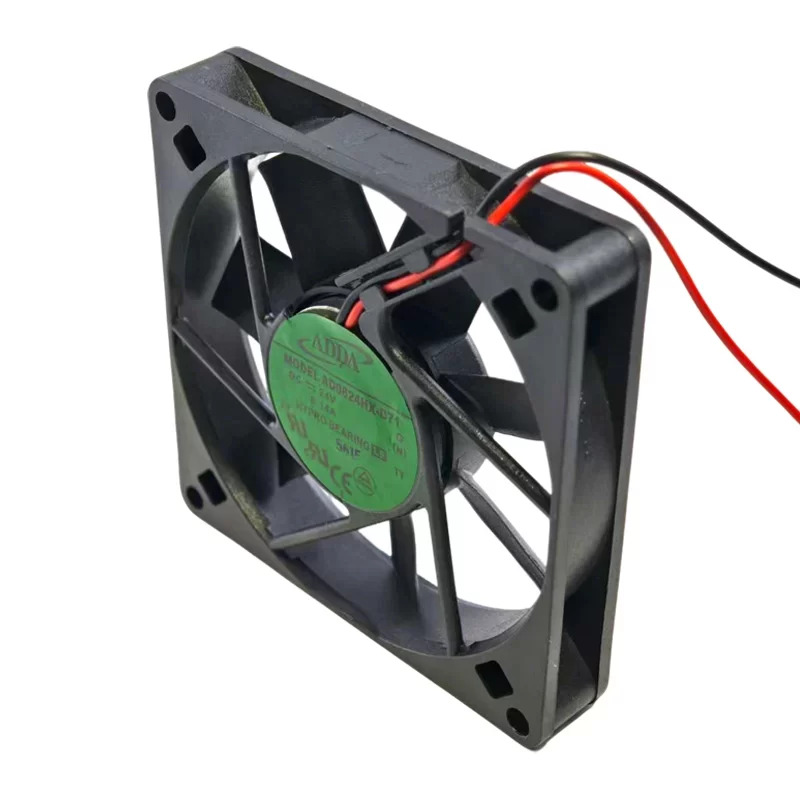

The ADDA AD0824HX-D71 is a DC axial fan with dimensions of 80 x 80 x 15 mm. It operates on 24V DC, drawing 0.14 A of current and consuming 3.12 W of power. The fan runs at a speed of 3200 RPM, delivering an airflow of 29.4 CFM with a static pressure of 0.116 inch H₂O. It produces a noise level of 33.5 dB(A). This fan features a durable Hypro Bearing and is terminated with two-wire leads. The fan weighs 63 g, is constructed from plastic, and is certified by UL, CUL, TUV, and CE. It is designed to operate within a temperature range of -10 °C to 60 °C.
AD0824HX-D71 Fan Parameters
Manufacturer: ADDA
Model: AD0824HX-D71
Fan Type: DC Axial Fan
Dimensions: 80 x 80 x 15 mm
Rated Voltage: 24V DC
Current Rating: 0.14 A
Power Consumption: 3.12 W
Airflow: 29.4 CFM
Static Pressure: 0.116 inch H₂O
Speed: 3200 RPM
Noise Level: 33.5 dB(A)
Weight: 63 g
Bearing Type: Hypro Bearing
Termination: 2-Wire Leads
Housing Material: Plastic
Impeller Material: Plastic
Operating Temperature: -10 °C to 60 °C
Certifications: UL, CUL, TUV, CE
Application
The AD0824HX-D71 fan is suitable for a wide range of applications that require efficient cooling in a compact form factor, such as in computer equipment, industrial controls, and electronic devices.
