Description

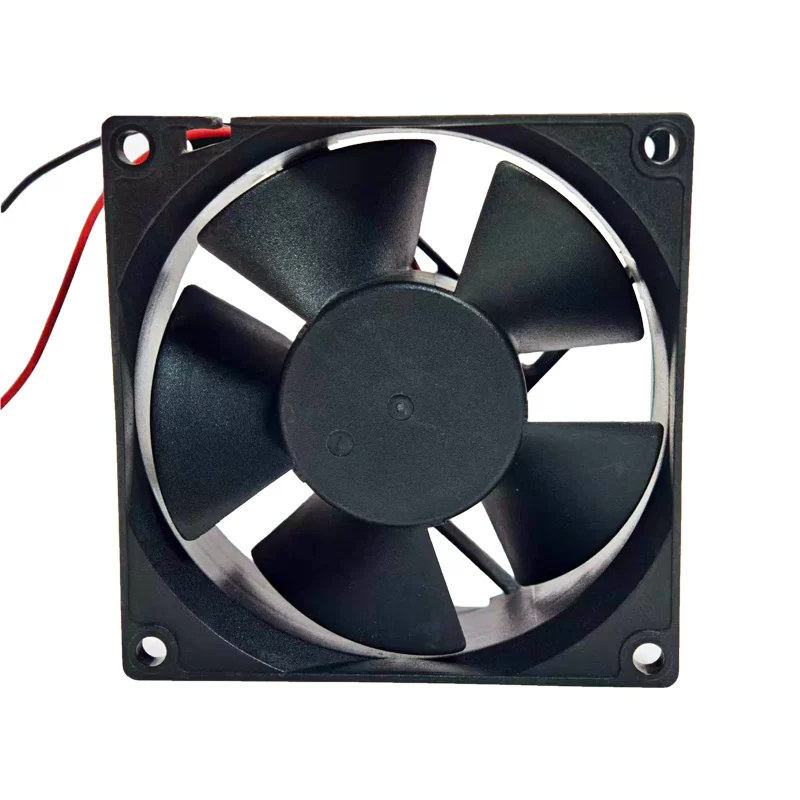

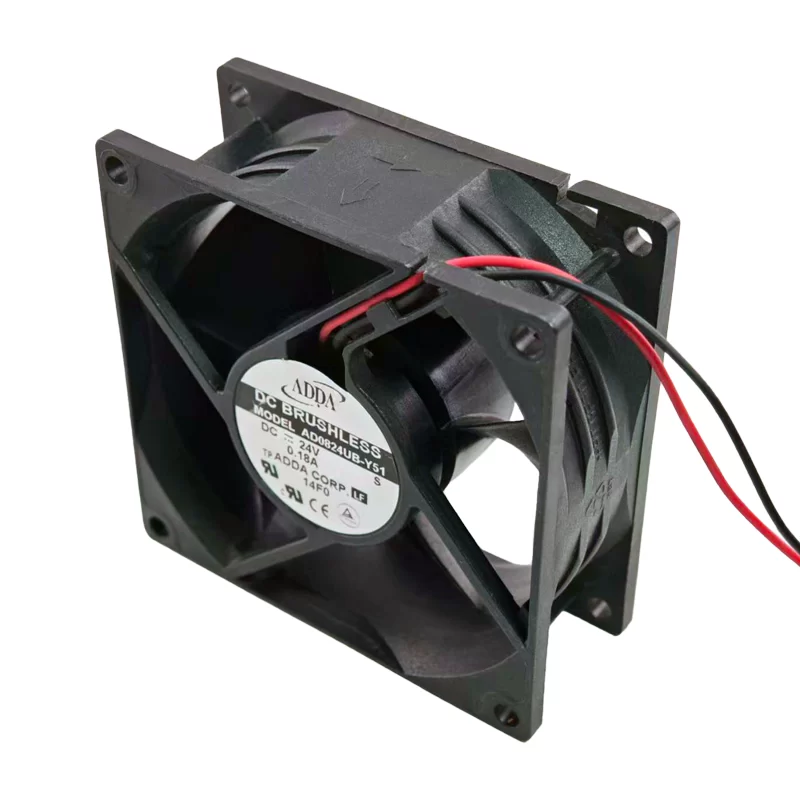

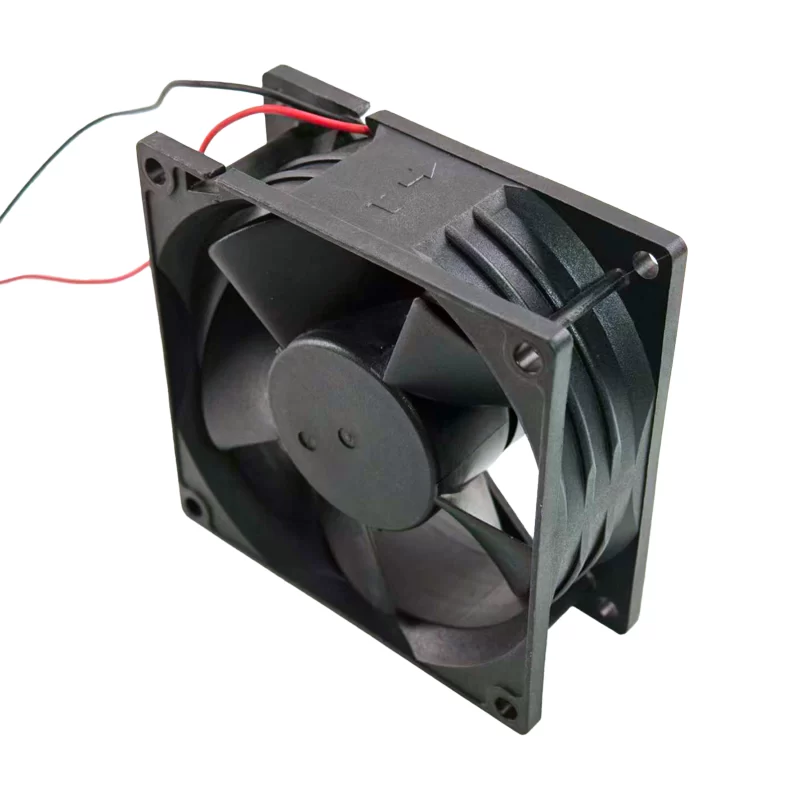

The ADDA AD0824UB-Y51 is a high-performance DC Axial Fan with dimensions of 80×80×32 mm. This Ultra High speed fan operates on a nominal 24 VDC voltage with 4.32 W of power consumption. It delivers a strong airflow of 94.8 m3/h (55.3 CFM) at a speed of 4200 RPM, generating a static pressure of 72.5 Pa (0.291 inH2O). The unit features a durable Ball Bearing system and holds multiple safety certifications including UL/CUL/TUV/CE.
AD0824UB-Y51 Fan Parameters
Model: AD0824UB-Y51
Manufacturer: ADDA
Fan Type: DC Axial Fan
Dimensions: 80×80×32 mm
Nominal Voltage: 24 VDC
Rated Current: 0.18 A
Power Consumption: 4.32 W
Rated Speed: 4200 RPM
Airflow: 94.8 m3/h (55.3 CFM)
Static Pressure: 72.5 Pa (0.291 inH2O)
Noise Rating: 43.8 dBA
Bearing System: Ball Bearing
Safety Approvals: UL/CUL/TUV/CE
Termination: 2 Lead Wires
Number of blades: 5
Frame Material: Plastic (UL94V-0)
Impeller Material: Plastic (UL94V-0)
Application
The AD0824UB-Y51 is a 32 mm thick, high-speed fan designed for efficient cooling in industrial and commercial 24 VDC systems that require a high static pressure and reliable air movement. Typical applications include telecommunications equipment, industrial control cabinets, automation devices, and other professional electronic enclosures.
