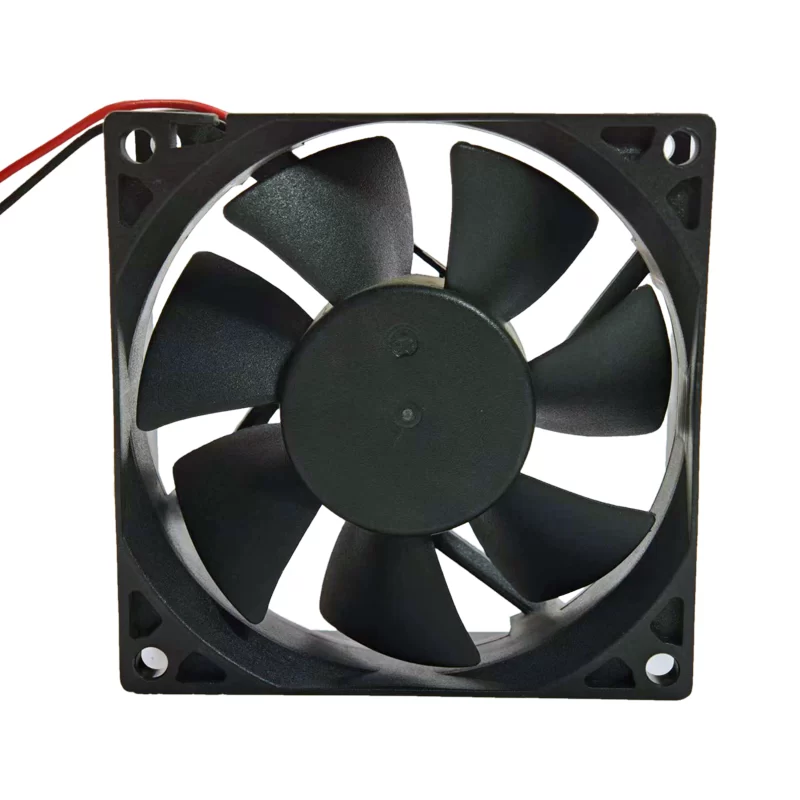

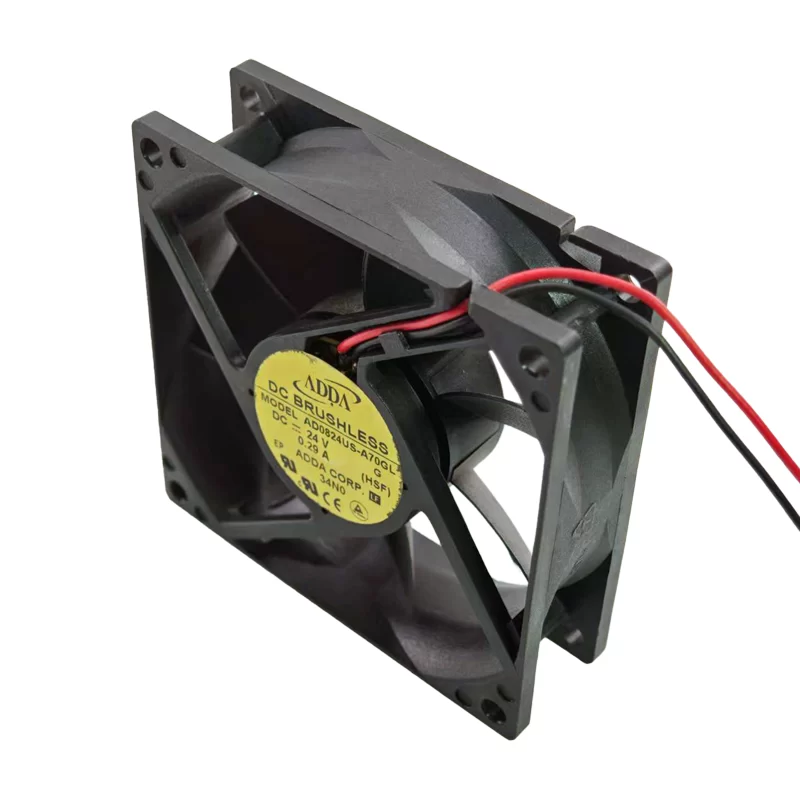

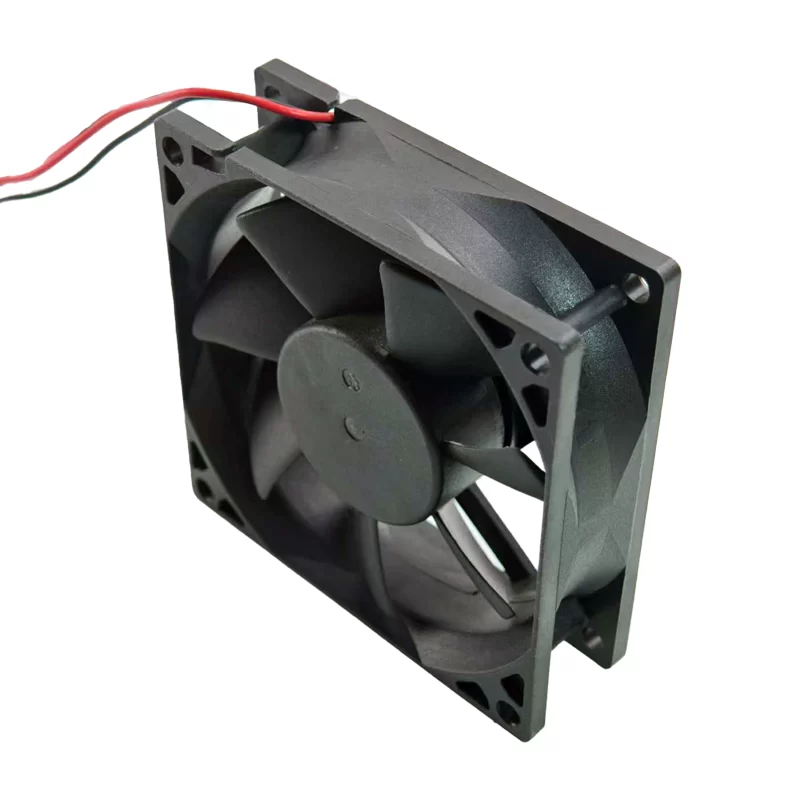

AD0824US-A70GL ADDA 24V DC Axial Fan

Description

The ADDA AD0824US-A70GL is a high-performance DC Axial Fan with dimensions of 80 x 80 x 25 mm. Operating on 24 V DC, the fan draws 0.29 A for a power consumption of 6.96 W. It delivers 89.20 m3/h airflow and 63.02 Pa static pressure at 4100 RPM with 42.0 dBA noise. This fan features a reliable Sleeve bearing and 2-wire termination, making this 86 g unit an excellent thermal solution for applications that require a balance of consistent performance and acoustic control.

AD0824US-A70GL Fan Parameters
Model: AD0824US-A70GL
Manufacturer: ADDA
Type: DC Axial Fan
Nominal Voltage: 24 V DC
Current Draw: 0.29 A
Power Consumption: 6.96 W
Airflow: 89.20 m3/h
Airflow in CFM: 52.5 CFM
Static Pressure: 63.02 Pa
Speed: 4100 RPM
Noise Level: 42.0 dBA
Dimensions: 80 x 80 x 25 mm
Bearing Type: Sleeve
Weight: 86 g
Number of blades: 7
Frame Material: Plastic (UL94V-0)
Impeller Material: Plastic (UL94V-0)
Termination: 2 Wires
AC/DC: DC

Application
The ADDA AD0824US-A70GL is engineered for critical thermal management applications that demand a balanced output of high airflow and static pressure to effectively cool constrained spaces. It is highly suitable for integration into telecommunications equipment, network servers, and high-density industrial control cabinets.
