AD0824UX-A71GL ADDA 24V DC Axial Fan

$9.99

SKU: AD0824UX-A71GL
Tag:

Description

The ADDA AD0824UX-A71GL is a high-performance DC Axial Fan with dimensions of 80×80×25 mm. Operating at 24 V, this Ultra High Speed fan delivers 84.95 m3/h Airflow and a high 69.5 Pa Static Pressure at a Nominal Speed of 3,900 RPM. Consuming 6.24 W (Rated Current 0.26 A) and weighing 86 g, the fan incorporates a reliable HYPRO Bearing system, making it suitable for demanding, high-impedance thermal management applications.

AD0824UX-A71GL Fan Parameters
Model: AD0824UX-A71GL
Manufacturer: ADDA
Type: DC Axial Fan
Dimensions: 80×80×25 mm
Operating Voltage: 24 V
Rated Current: 0.26 A
Power Consumption: 6.24 W
Nominal Speed: 3,900 RPM
Airflow: 84.95 m3/h (50.0 CFM)
Static Pressure: 69.5 Pa (7.09 mmAq)
Noise Level: 41.0 dB(A)
Weight: 86 g
Bearing Type: HYPRO
Frame Material: PBT (UL94V-0)
Impeller Material: PBT (UL94V-0)
Operating Temperature: −10 °C to 75 °C
Storage Temperature: −40 °C to 75 °C
Life Expectancy: 50,000 hours (at 25 °C)
Termination: Wire Leads
Safety Approvals: UL, cUL, TÜV, CSA, CE

Application
The AD0824UX-A71GL is engineered as a high-performance, 24 VDC Ultra High Speed axial fan with superior 69.5 Pa Static Pressure and 84.95 m3/h Airflow, making it essential for critical cooling in high-impedance environments. This power density and flow characteristic are ideal for forced air cooling in industrial control cabinets, providing thermal relief to components like variable frequency drives (VFDs) and PLCs, and for integration into high-density rack-mount servers or network switches where effective heat removal against restricted pathways is non-negotiable.

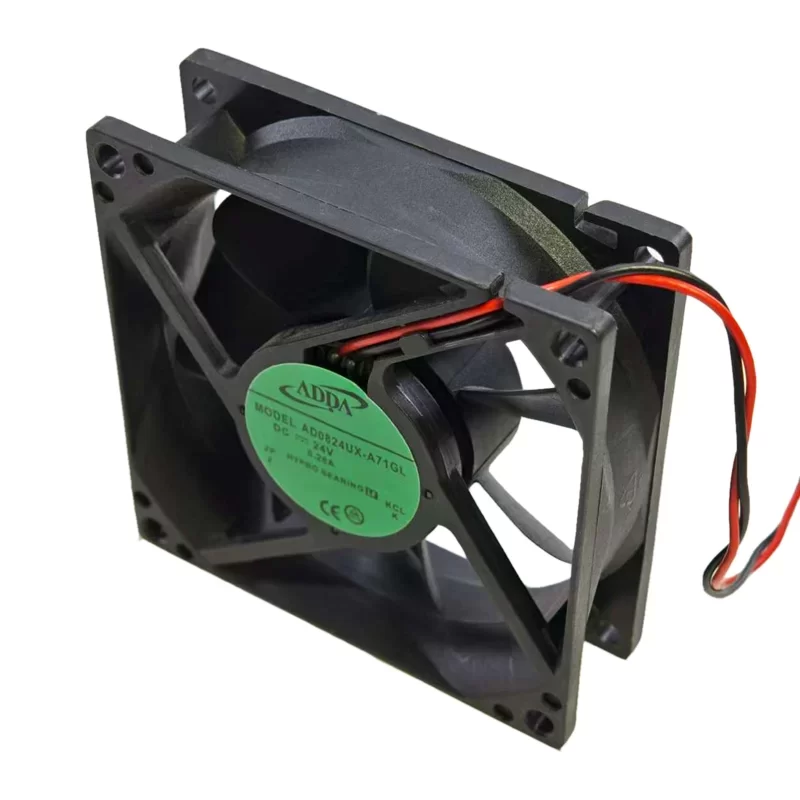

AD0824UX-A71GL ADDA 24V DC Axial Fan

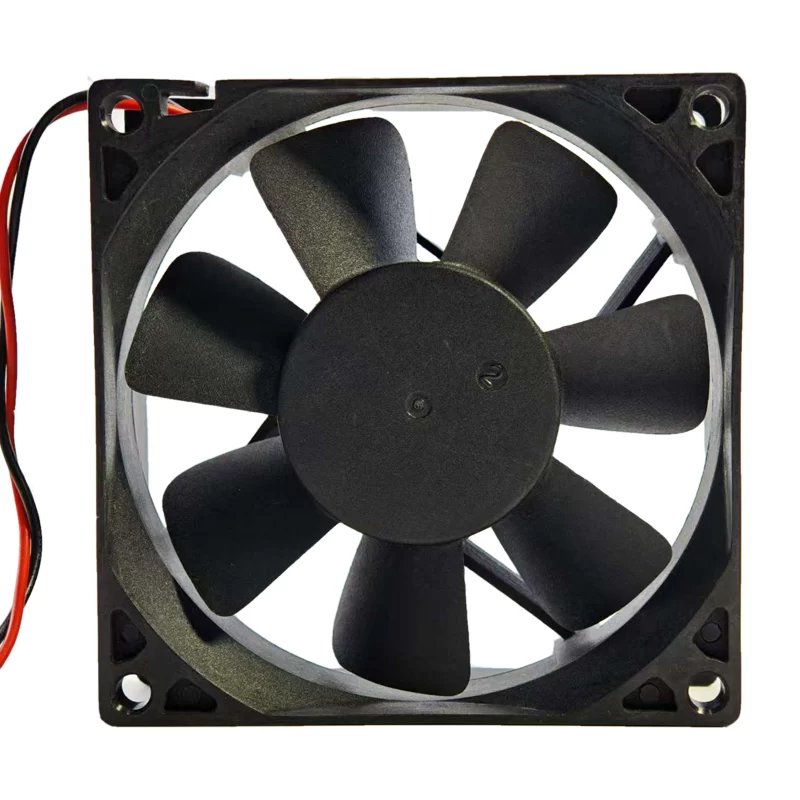

AD0824UX-A71GL ADDA 24V DC Axial Fan

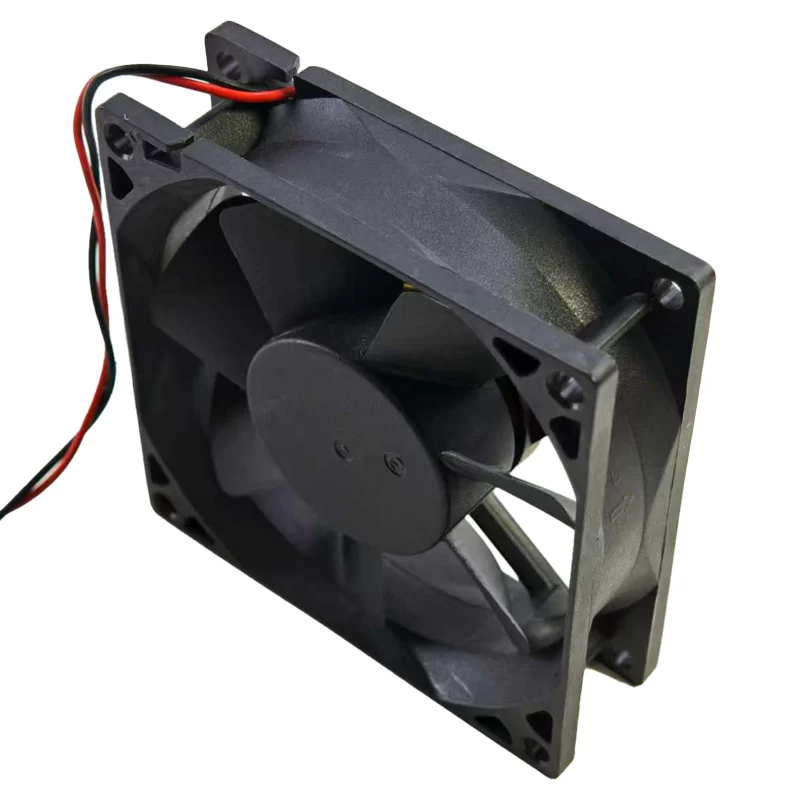

AD0824UX-A71GL ADDA 24V DC Axial Fan
AD0824UX-A71GL ADDA 24V DC Axial Fan
