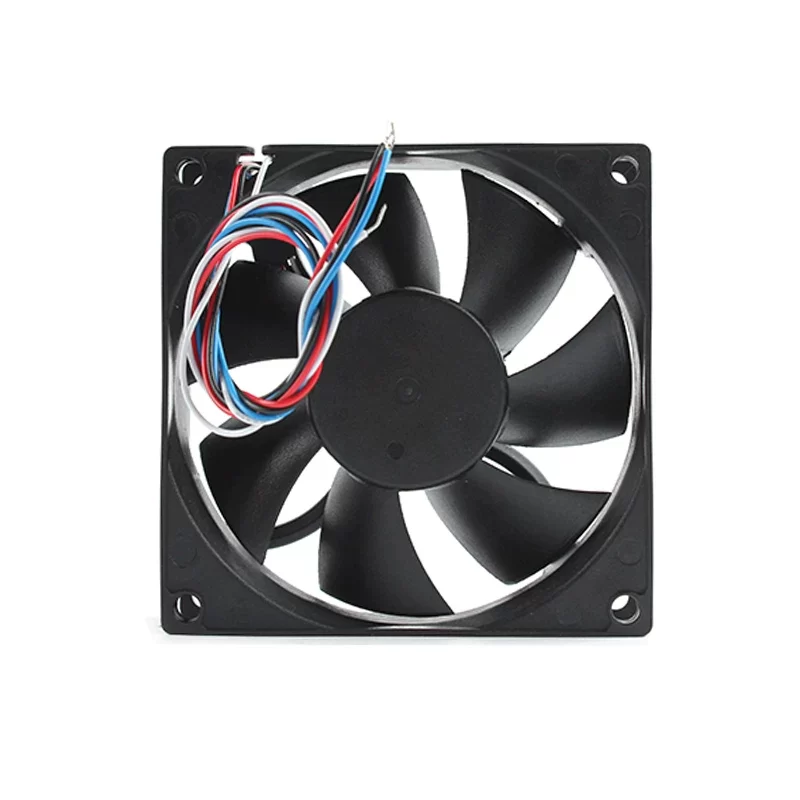

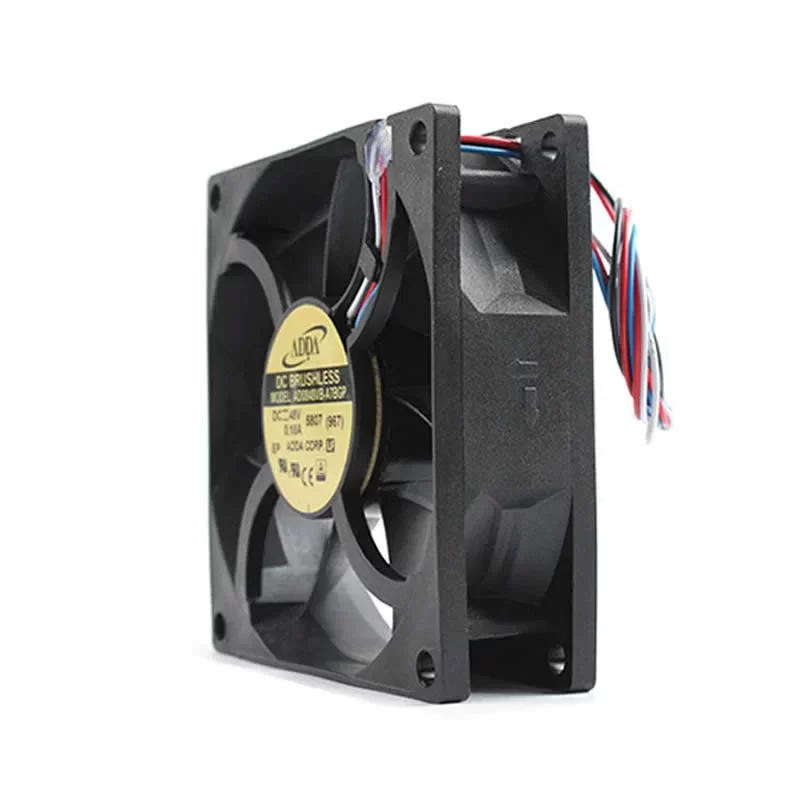

AD0848VB-A7BGP ADDA 48V 0.18A DC Axial Fan 80x80x25mm

Description

The ADDA AD0848VB-A7BGP is a high-performance industrial DC Axial Fan with dimensions of 80 x 80 x 25 mm. Driven by a high-torque Brushless DC Motor, this 0848 series model is engineered as a robust thermal solution operating on a nominal 48 VDC. It delivers a powerful maximum airflow of 69 CFM (117.2 m³/h) at a high rated speed of 5000 RPM. With a rated current of 0.18 A and a power input of 8.64 W, it is specifically designed to generate the high static pressure (0.38 inAq) required to overcome the airflow resistance in densely packed 48V telecommunications cabinets and industrial inverter systems. This specialized 4-wire version features a premium dual-ball bearing system and a 7-blade aerodynamic impeller for maximum service life. Equipped with both PWM speed control and tacho signal output, the AD0848VB-A7BGP provides intelligent, energy-efficient thermal management for high-density networking equipment and mission-critical power electronics.

AD0848VB-A7BGP Fan Parameters
Manufacturer: ADDA
Model Number: AD0848VB-A7BGP
Motor Design: Brushless DC Motor
Type: DC Axial Fan (High Speed PWM Series)
Dimensions: 80 x 80 x 25 mm
Impeller Size: 76 mm
Nominal Voltage: 48 VDC
Operating Voltage Range: 36.0 to 56.0 VDC
Starting Voltage: 30.0 VDC
Speed: 5000 RPM
Power Input: 8.64 W
Rated Current: 0.18 A
Max. Airflow: 69 CFM (117.2 m³/h)
Max. Static Pressure: 94.6 Pa (0.38 inAq)
Noise Level: 49 dB(A)
Weight: 95 g
Termination: 4 Wire Leads (Red: +, Black: -, Yellow: Tacho, Blue: PWM)
Lead Wire Length: 300 mm (24 AWG)
Bearing Type: Dual Ball Bearing
Housing Material: Plastic (UL 94V-0 PBT)
Impeller Material: Plastic (UL 94V-0 PBT)
Number of Blades: 7
Direction of Rotation: Clockwise (viewed toward rotor)
Direction of Airflow: Struts Side Out (Exhaust)
Degree of Protection: IP20
Insulation Class: A
Dielectric Strength: 500 VAC / 1 min
Insulation Resistance: 10M Ω or over with a DC500V Megger
Operating Temp. Range: -10 °C to +70 °C
Storage Temp. Range: -40 °C to +70 °C
Life Expectancy (L10) at 40 °C: 70,000 h
Control Signal: PWM Speed Control
Signal Output: Tacho signal (FG)
Safety Protections: Auto-restart, Polarity protection, Locked-rotor protection
Approvals: CE, UL, TUV, CSA

Application
The AD0848VB-A7BGP is primarily utilized as a primary cooling fan for 48V DC telecommunications equipment and industrial frequency drives where high-voltage bus efficiency is required. Its 5000 RPM high-speed motor generates the 0.38 inAq of static pressure necessary to force air through the dense internal heat sinks and dust filters of 48V power cabinets. The 4-wire configuration allows the system to use PWM signals for dynamic speed adjustment, moving from low-noise operation to a maximum 69 CFM output during peak thermal loads. This is critical for 24/7 mission-critical infrastructure, such as 5G base stations and industrial UPS systems, where the dual-ball bearing system ensures 70,000 hours of maintenance-free operation, safeguarding sensitive IGBT modules and control circuitry from thermal stress in demanding 48V environments.
