AD0912DB-A73GL ADDA 12V 0.07A DC Axial Fan

Description

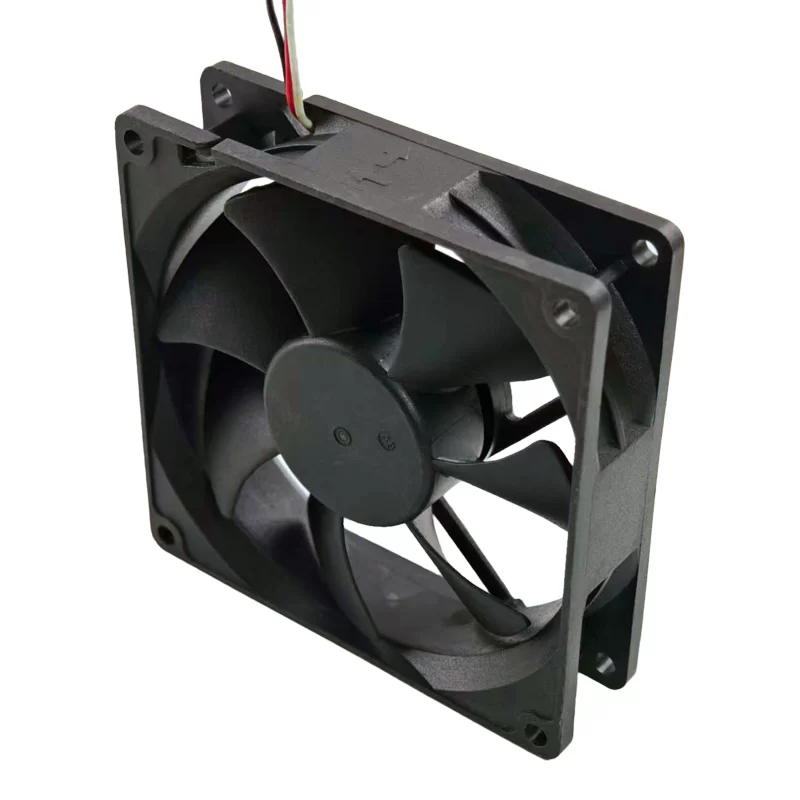

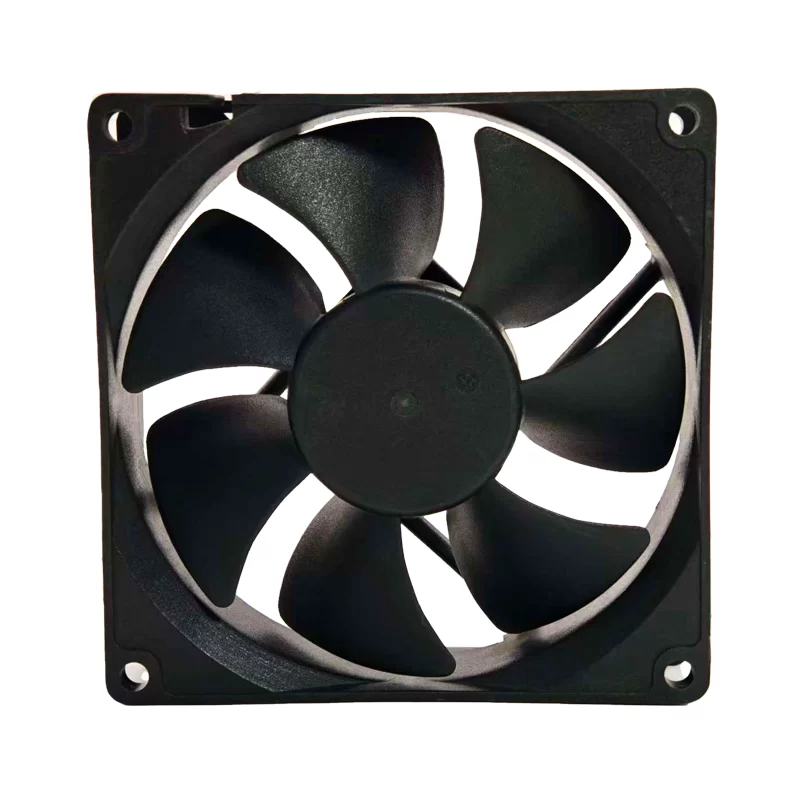

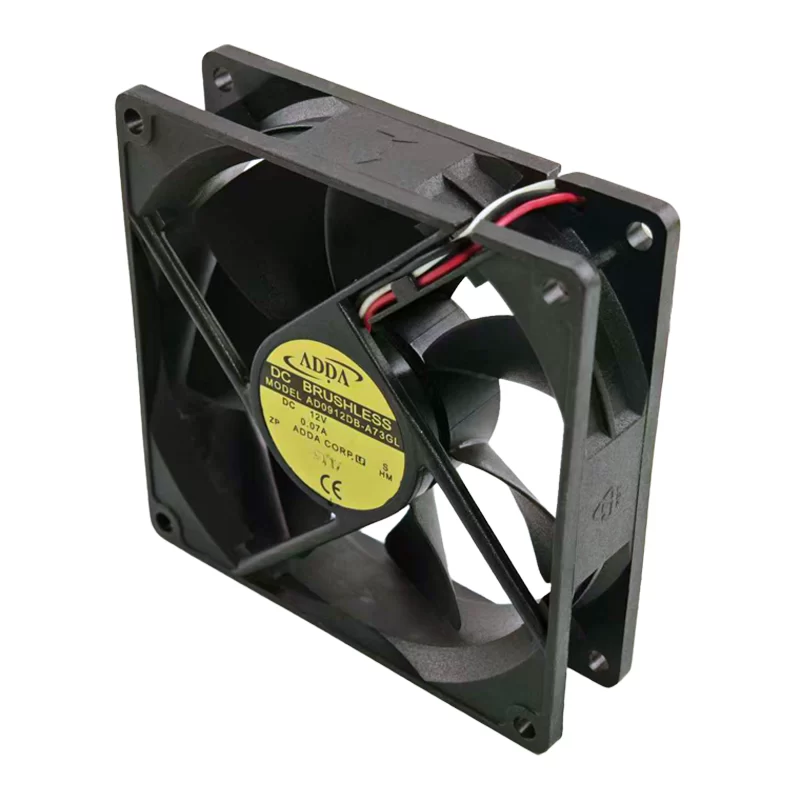

The ADDA AD0912DB-A73GL is a low-speed, low-noise DC Axial Fan with dimensions of 92×92×25 mm. It operates on a nominal voltage of 12 VDC, drawing a minimal rated current of 0.07 A for a power consumption of 0.84 W. The fan is designed with 7 blades and features a reliable Ball Bearing system. Running at a speed of 1,600 RPM, it provides a gentle airflow of 47.6 m3/h (28 CFM) and a static pressure of 14.9 Pa (0.060 inH2O). It is a 3-Wire model, allowing for speed monitoring, and operates quietly at 22 dB(A). Both the frame and impeller are constructed from UL94V−0 rated Plastic.

AD0912DB-A73GL Fan Parameters
Model: AD0912DB-A73GL
Manufacturer: ADDA
Fan Type: DC Axial Fan
Dimensions: 92×92×25 mm
Nominal Voltage: 12 VDC
Rated Current: 0.07 A
Rated Power: 0.84 W
Rated Speed: 1,600 RPM
Airflow: 47.6 m3/h (28 CFM)
Static Pressure: 14.9 Pa (0.060 inH2O)
Noise Level: 22 dB(A)
Weight: 101 g
Bearing System: Ball Bearing
Termination: 3-Wire Leads
Number of blades: 7
Frame Material: Plastic (UL94V−0)
Impeller Material: Plastic (UL94V−0)
Motor Design: Brushless DC Motor

Application
This fan is optimized for quiet operation and low power consumption, making it perfectly suited for noise-sensitive electronics. Typical uses include Home Theater PCs (HTPCs), network storage (NAS) enclosures, low-profile CPU coolers, and general ventilation in residential or quiet office equipment where continuous, unobtrusive airflow is needed.
