Description

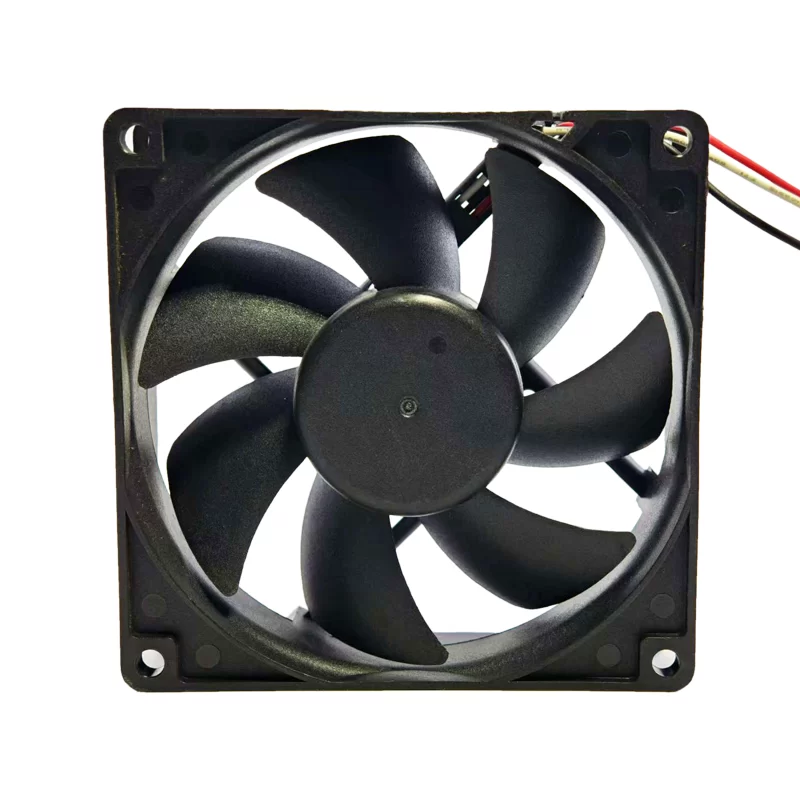

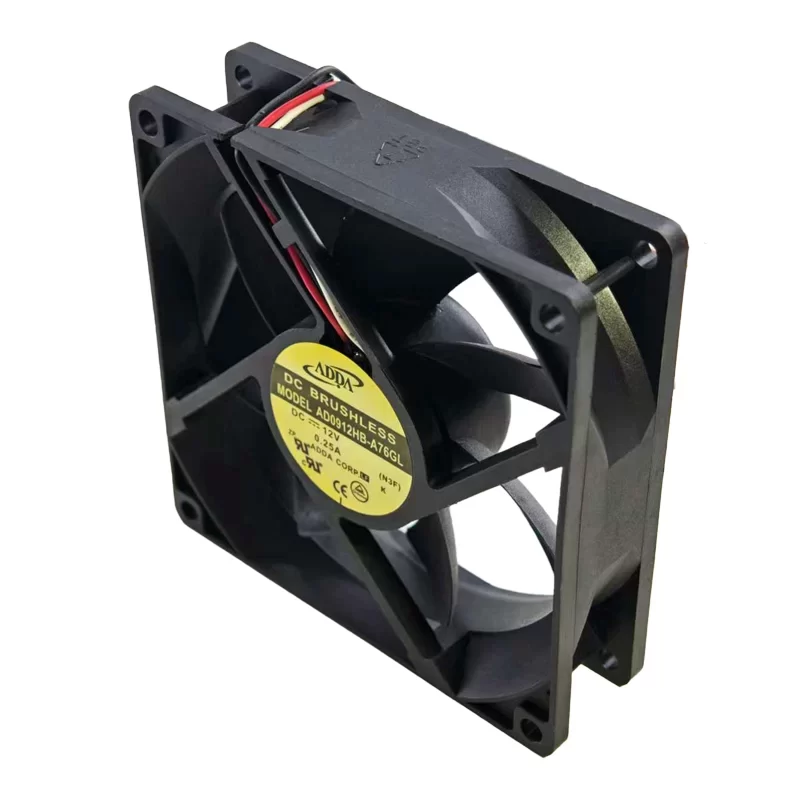

The ADDA AD0912HB-A76GL is a DC axial fan with dimensions of 92 x 92 x 25 mm. It operates on 12V DC, drawing 0.25 A of current and consuming 3 W of power. This fan runs at a speed of 2900 RPM, delivering an airflow of 52.5 CFM with a static pressure of 0.133 inch H₂O. It produces a noise level of 35.0 dB(A). The fan utilizes a ball bearing for durability and is terminated with three-wire leads. The fan weighs 101 g, is constructed from plastic, and is certified by UL, CUL, and CE.
AD0912HB-A76GL Fan Parameters
Manufacturer: ADDA
Model: AD0912HB-A76GL
Fan Type: DC Axial Fan
Dimensions: 92 x 92 x 25 mm
Rated Voltage: 12V DC
Current Rating: 0.25 A
Power Consumption: 3 W
Airflow: 52.5 CFM
Static Pressure: 0.133 inch H₂O
Speed: 2900 RPM
Noise Level: 35.0 dB(A)
Weight: 101 g
Bearing Type: Ball bearing
Termination: 3-Wire Leads
Housing Material: Plastic
Impeller Material: Plastic
Operating Temperature: -10 °C to 70 °C
Certifications: UL, CUL, CE
Application
The AD0912HB-A76GL fan is suitable for applications such as servers, workstations, and network equipment where reliable cooling and moderate airflow are required.
