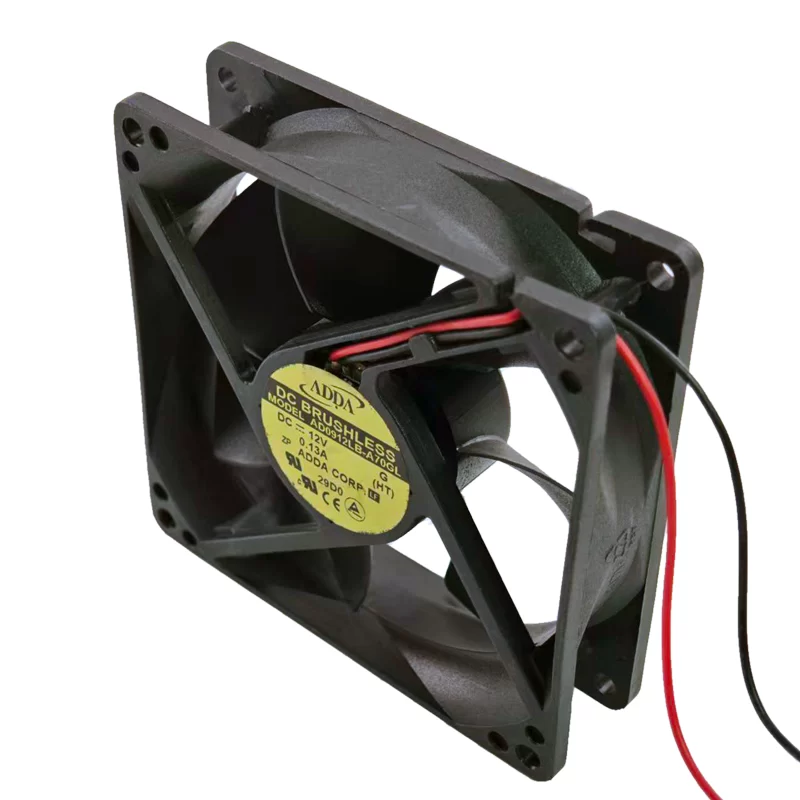

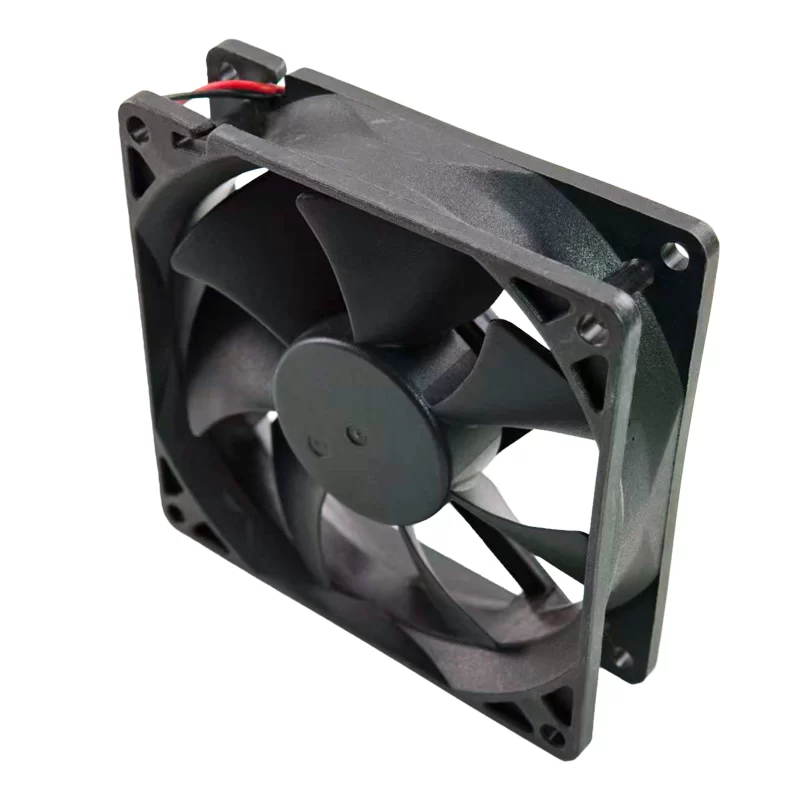

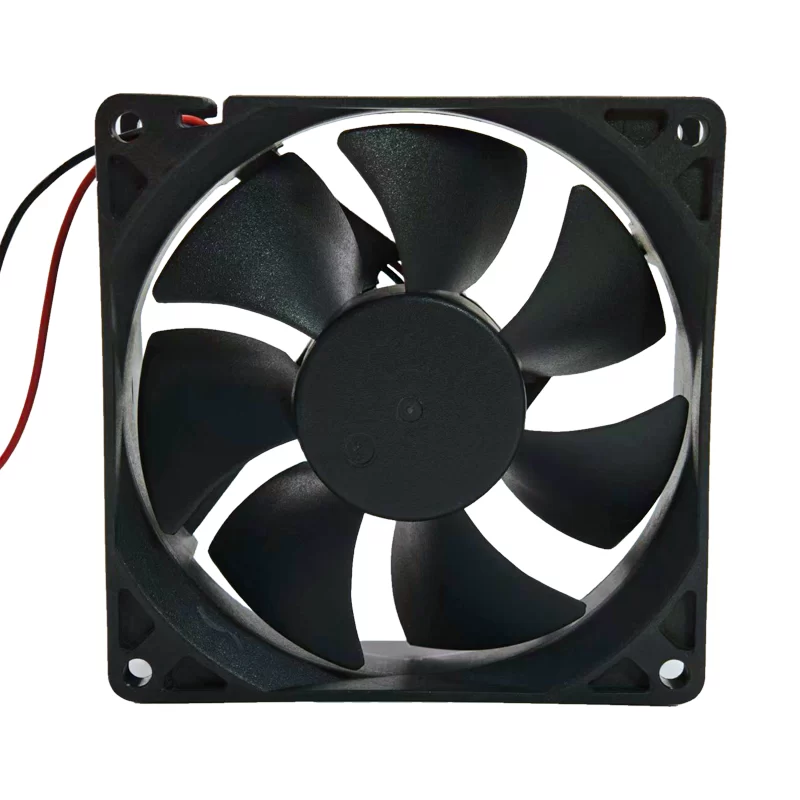

AD0912LB-A70GL ADDA 12V DC Axial Fan

$9.99

SKU: AD0912LB-A70GL
Tag:

Description

The ADDA AD0912LB-A70GL is a high-performance DC Axial Fan with dimensions of 92×92×25 mm. It operates on a low nominal voltage of 12 VDC, drawing a rated current of 0.13 A for a power consumption of 1.56 W. Featuring a durable Ball Bearing system, this fan achieves a speed of 2,050 RPM. It delivers a maximum airflow of 61.2 m3/h (36.0 CFM) and a static pressure of 15.7 Pa (0.063 inH2O). It is categorized as a low-speed (L) model, operating at a quiet noise level of 25.0 dB(A).

AD0912LB-A70GL Fan Parameters
Model: AD0912LB-A70GL
Manufacturer: ADDA
Fan Type: DC Axial Fan
Dimensions: 92×92×25 mm
Nominal Voltage: 12 VDC
Rated Current: 0.13 A
Rated Power: 1.56 W
Rated Speed: 2,050 RPM
Airflow: 61.2 m3/h (36.0 CFM)
Static Pressure: 15.7 Pa (0.063 inH2 O)
Noise Level: 25.0 dB(A)
Weight: 101 g
Bearing System: Ball Bearing
Termination: 2-Wire Leads
Number of blades: 7
Frame Material: Plastic (PBT, UL94V−0)
Impeller Material: Plastic (PBT, UL94V−0)
Motor Design: Brushless DC Motor
Safety Approvals: UL, cUL, TUV, CE

Application
The AD0912LB-A70GL is designed for general-purpose cooling in 12 VDC electronic systems where low noise operation and energy efficiency are prioritized over maximum airflow. Its quiet profile makes it ideal for use in desktop PCs, communication equipment, small instrumentation, and other applications that require consistent airflow in relatively unrestricted spaces.
