Description

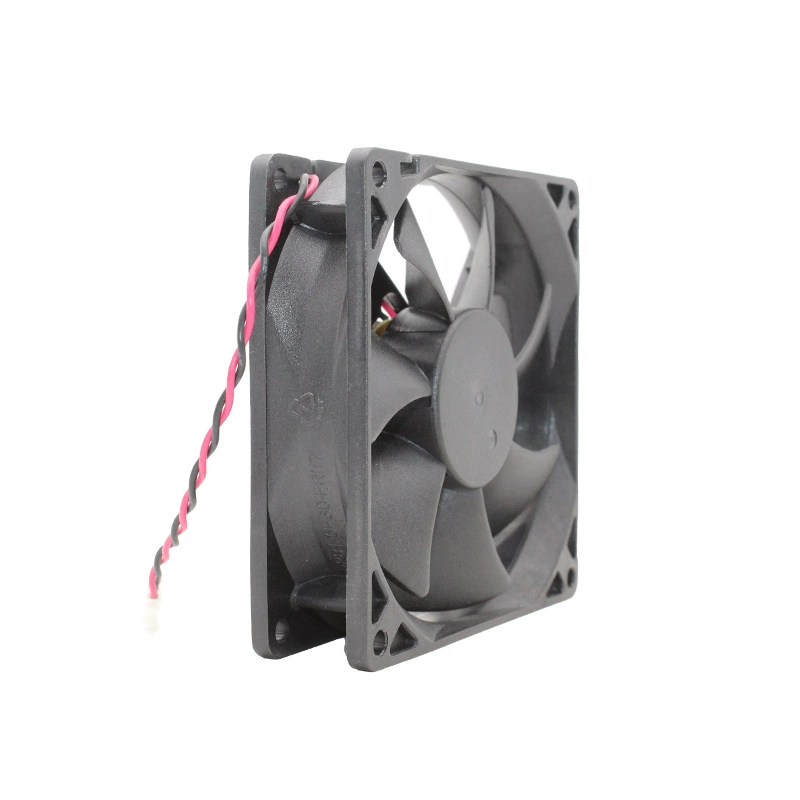

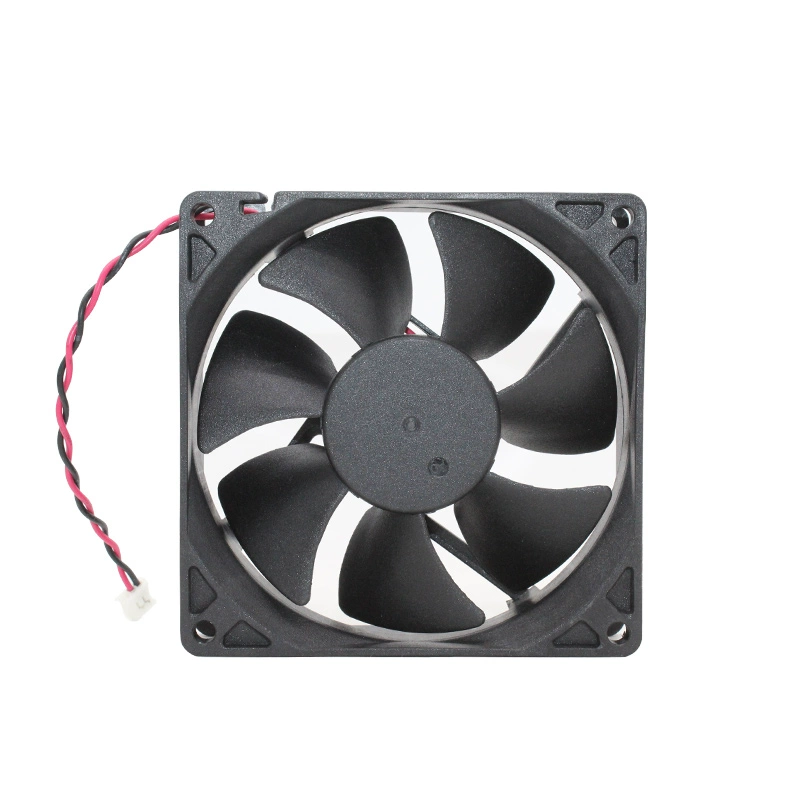

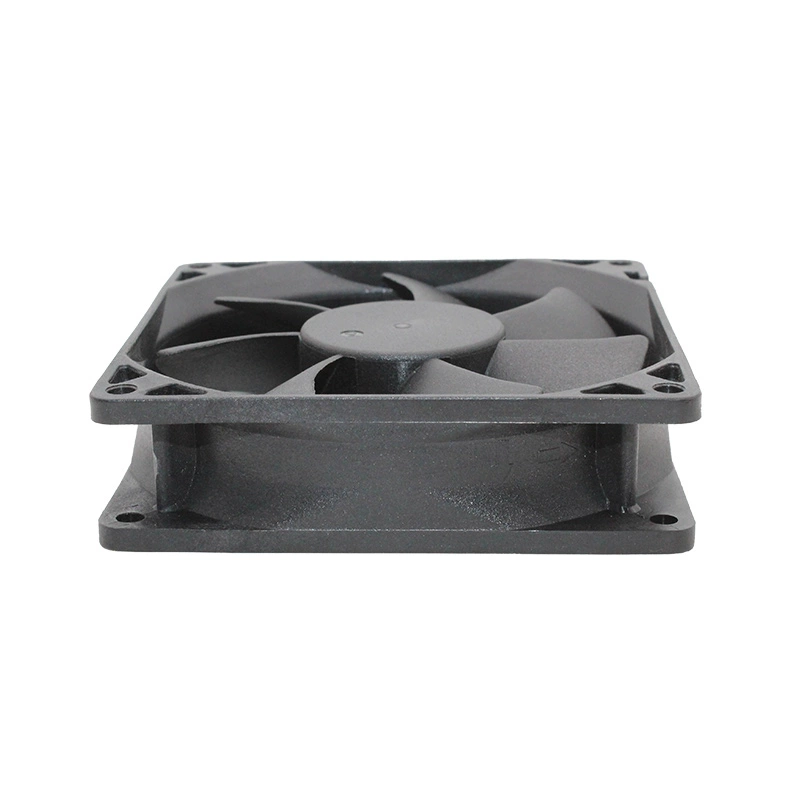

The ADDA AD0912UB-A70GL is a high-performance 12V DC axial cooling fan from ADDA Corporation, measuring 92mm x 92mm x 25mm. Operating at a rated current of 0.30A (3.6W), this fan is engineered to provide substantial airflow for various electronic cooling applications. It achieves a speed of 3300 RPM, delivering 62 CFM of airflow and a static pressure of 0.187 inch-H2O, while maintaining a noise level of 39.4 dBA. Equipped with robust dual ball bearings, it ensures a long operational life of 60,000 to 70,000 hours at 40°C. The fan utilizes 2-wire leads, incorporating motor protection, polarity protection, and auto-restart features, making it a reliable and efficient solution for systems requiring consistent cooling in a standard form factor.
Model Number: AD0912UB-A70GL
Manufacturer: ADDA Corporation
Type: DC Axial Cooling Fan
Dimensions: 92mm x 92mm x 25mm
Rated Voltage: 12V DC
Rated Current: 0.30A
Rated Power: 3.6W
Speed: 3300 RPM
Airflow: 62 CFM / 1.76 m³/min
Static Pressure: 0.187 inch-H2O / 46.5 Pa
Noise Level: 39.4 dBA
Connector: 2-Wire Leads
Bearing Type: Dual Ball Bearing
Life Expectancy: 60,000 to 70,000 hours at 40°C
Operating Temperature: -10°C to 70°C
Frame Material: Plastic
Impeller Material: Plastic
Features: Motor Protection, Polarity Protection, Auto Restart
