Description

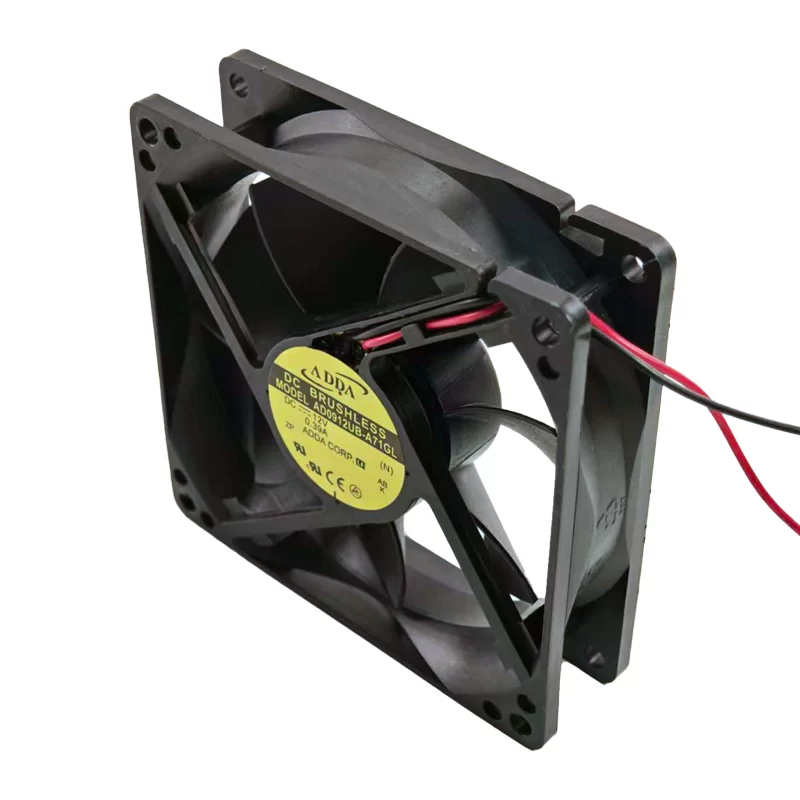

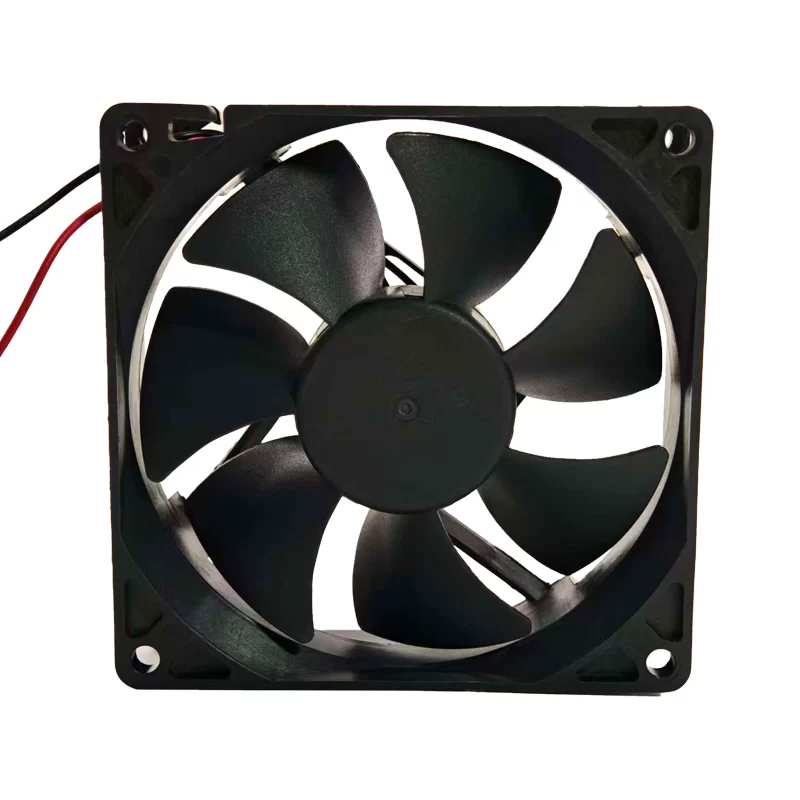

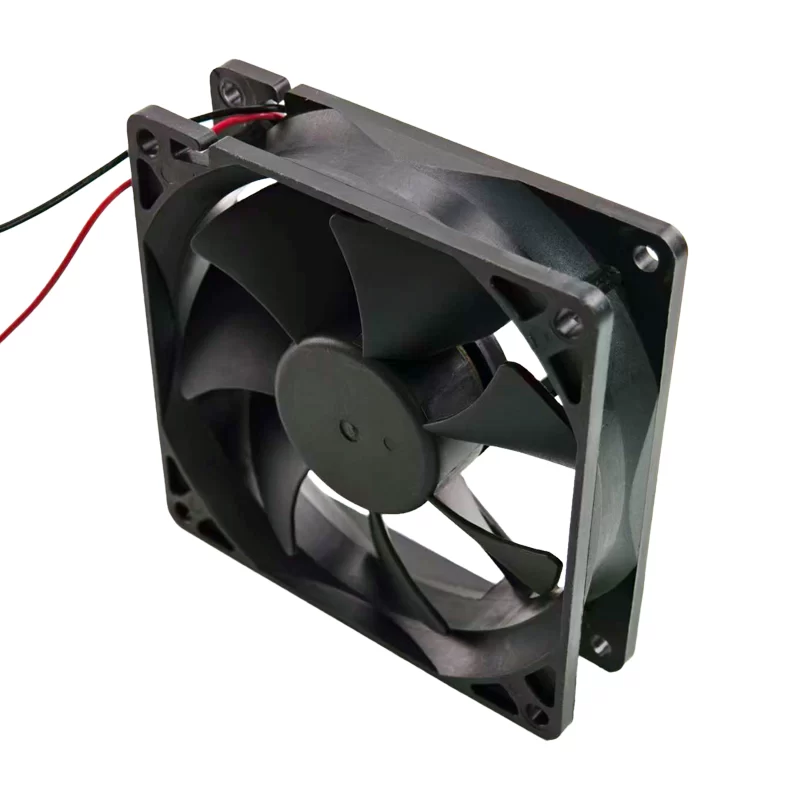

The ADDA AD0912UB-A71GL is a high-performance DC Axial Fan with dimensions of 92×92×25 mm. Operating on 12 VDC, this fan draws 0.39 A for a rated power of 4.68 W. It achieves a maximum airflow of 101.9 m3/h at a speed of 3300 RPM, while generating a static pressure of 41.4 Pa and an acoustical noise level of 39.4 dBA. Featuring a Ball Bearing system, this fan is designed for high-performance cooling applications in networking equipment, personal computers, and industrial control panels.
AD0912UB-A71GL Fan Parameters
Model: AD0912UB-A71GL
Manufacturer: ADDA Corporation
Fan Type: DC Axial Fan
Dimensions: 92×92×25 mm
Nominal Voltage: 12 VDC
Rated Current: 0.39 A
Rated Power: 4.68 W
Rated Speed: 3300 RPM
Airflow: 101.9 m3/h (60 CFM)
Maximum Static Pressure: 41.4 Pa
Acoustical Noise: 39.4 dBA
Weight: 101 g
Bearing System: Ball Bearing
Termination Type: 2 Wire Leads
Number of blades: 7
Frame Material: Plastic (UL94V-0)
Impeller Material: Plastic (UL94V-0)
Application
The ADDA AD0912UB-A71GL is commonly used for component-level cooling and ventilation within electronic enclosures, servers, power supplies, and in PC cases where maximizing airflow and static pressure is necessary for effective heat removal from restricted spaces.
