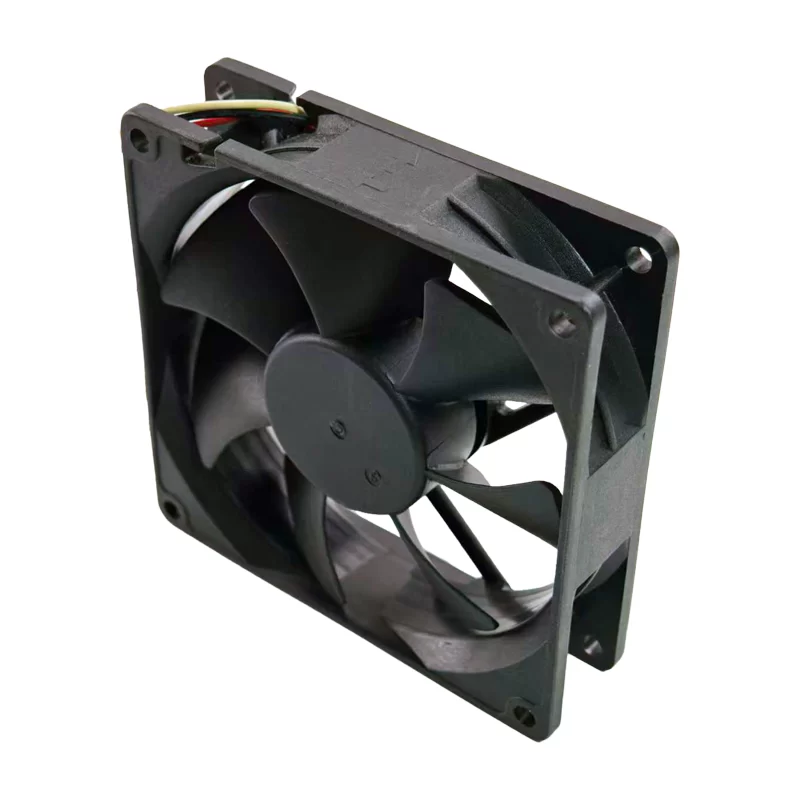

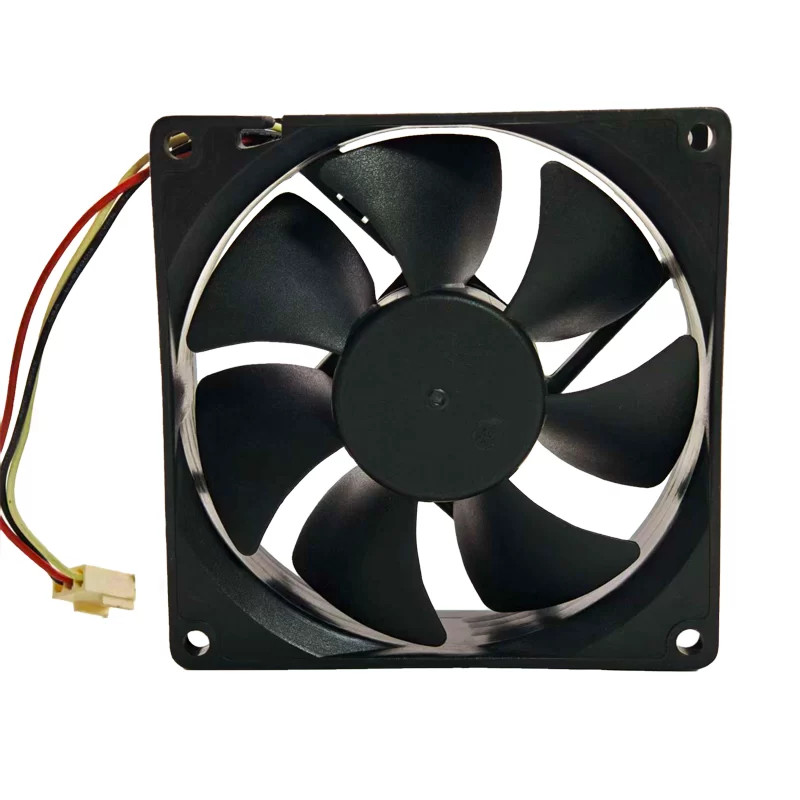

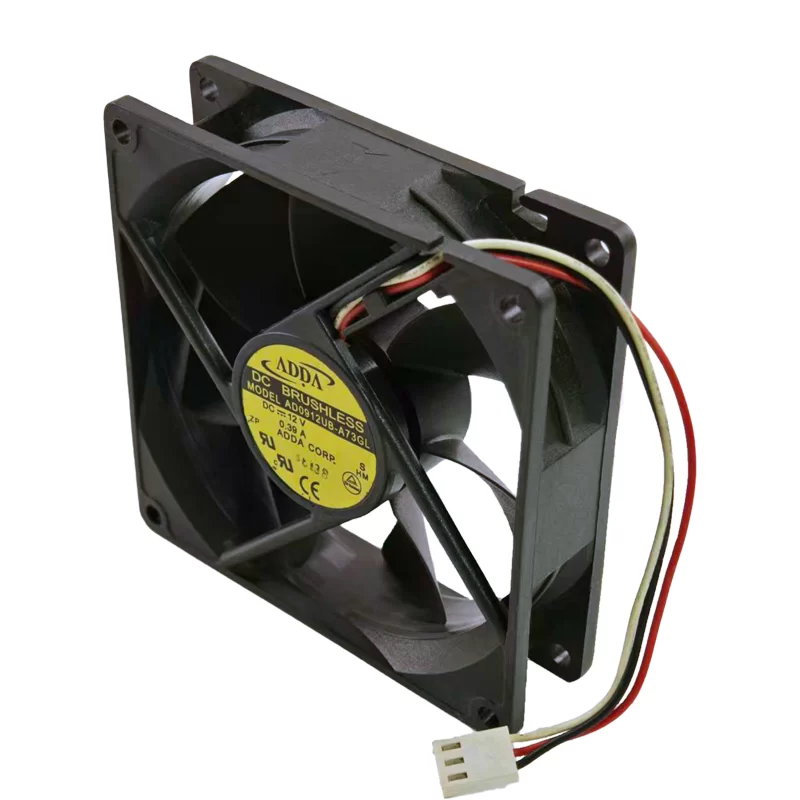

AD0912UB-A73GL ADDA 12V DC Axial Fan

$9.99

SKU: AD0912UB-A73GL
Tag:

Description

The ADDA AD0912UB-A73GL is a high-performance DC Axial Fan with dimensions of 92×92×25 mm. Operating on 12 VDC, this fan draws 0.39 A for a rated power of 4.44 W. It delivers an airflow of 122.3 m3/h at 3500 RPM, generating 56.9 Pa of static pressure with an acoustical noise level of 44 dBA. Constructed with UL94V-0 rated plastic for safety and featuring a Ball Bearing system, it is ideal for reliable, high-static pressure cooling in servers and industrial equipment.

AD0912UB-A73GL Fan Parameters
Model: AD0912UB-A73GL
Manufacturer: ADDA Corporation
Fan Type: DC Axial Fan
Dimensions: 92×92×25 mm
Nominal Voltage: 12 VDC
Rated Current: 0.39 A
Rated Power: 4.44 W
Rated Speed: 3500 RPM
Airflow: 122.3 m3/h (72 CFM)
Maximum Static Pressure: 56.9 Pa
Acoustical Noise: 44 dBA
Bearing System: Ball Bearing
Number of Blades: 7
Frame Material: Plastic (UL94V-0)
Impeller Material: Plastic (UL94V-0)
Termination Type: 3 Wires
Safety Approvals: UL, CUL, TUV, CE

Application
The ADDA AD0912UB-A73GL is designed for efficient cooling in thermal management systems that require high static pressure, such as enterprise server racks, industrial equipment, and high-performance computing systems with restrictive air paths.

AD0912UB-A73GL ADDA 12V DC Axial Fan
AD0912UB-A73GL ADDA 12V DC Axial Fan
AD0912UB-A73GL ADDA 12V DC Axial Fan
AD0912UB-A73GL ADDA 12V DC Axial Fan

Additional information

Weight 0.5 kg
