Description

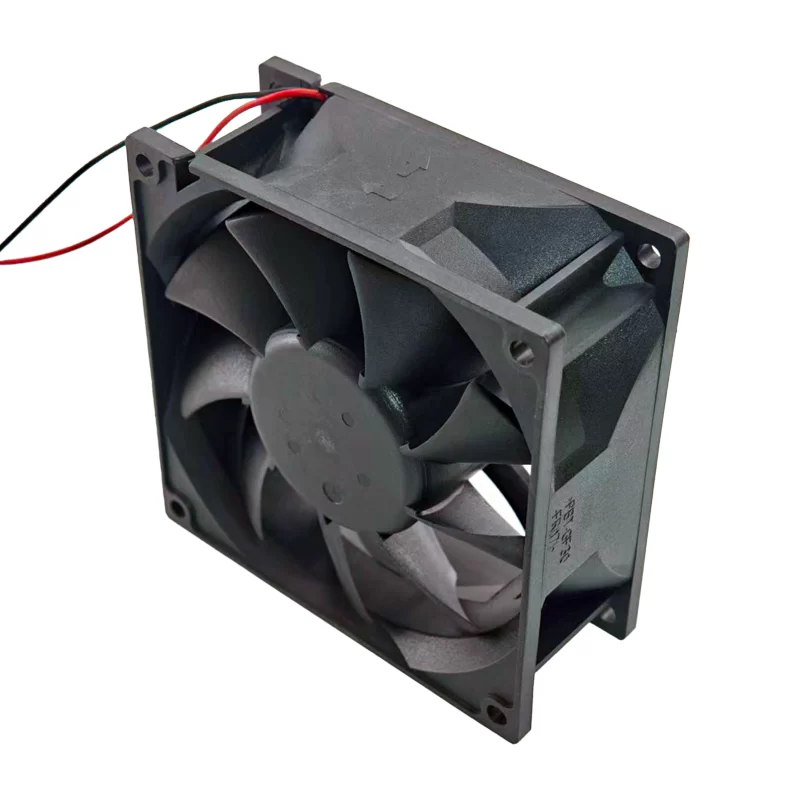

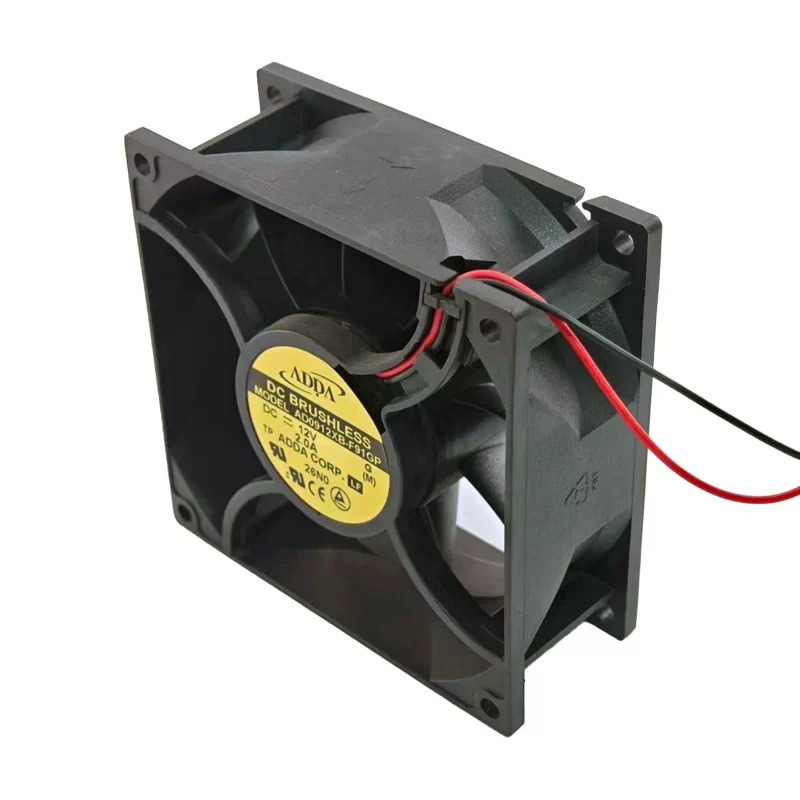

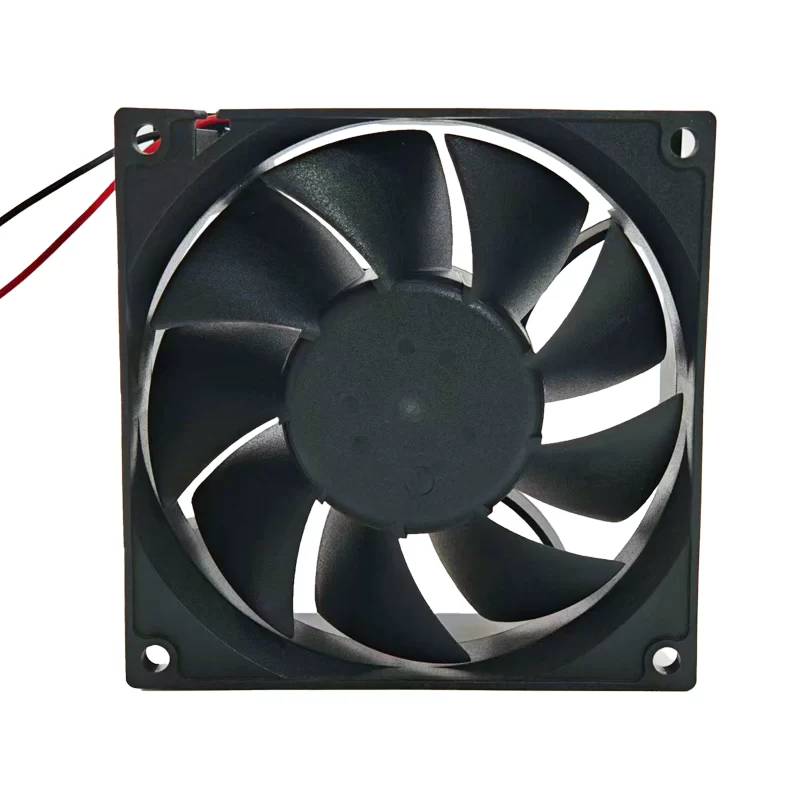

The ADDA AD0912XB-F91GP is a high-performance DC Axial Fan with dimensions of 92×92×38 mm. It operates on 12 VDC with a high Rated Current of 2 A and a calculated Rated Power of 24 W. The fan features a Ball Bearing system and is classified as Over Ultra High Speed. It is commonly supplied with a 2-Wire Leads termination. This fan is specifically designed for applications requiring extremely high airflow and static pressure from a compact 92 mm fan, such as high-end CPU coolers or dense rackmount server chassis.
AD0912XB-F91GP Fan Parameters
Model: AD0912XB-F91GP
Manufacturer: ADDA
Type: DC Axial Fan
Dimensions: 92×92×38 mm
Bearing Type: Ball Bearing
Operating Voltage: 12 V
Rated Current: 2 A
Rated Input: 24 W
Termination: 2-Wire Leads
Number of blades: 9
Frame Material: Plastic (PBT UL 94V-0), Glass-filled
Impeller Material: Plastic (PBT UL 94V-0)
Operating Temperature: −10 to +75 ∘ C
Expected Life: 50,000 h (25 ∘C) (Minimum)
Application
The AD0912XB-F91GP is a powerful fan suitable for demanding cooling tasks where space is limited but maximum airflow and pressure are essential. Its primary uses are in high-performance computing equipment, server power supplies, and telecom devices that require an Over Ultra High Speed fan to dissipate critical heat.
