Description

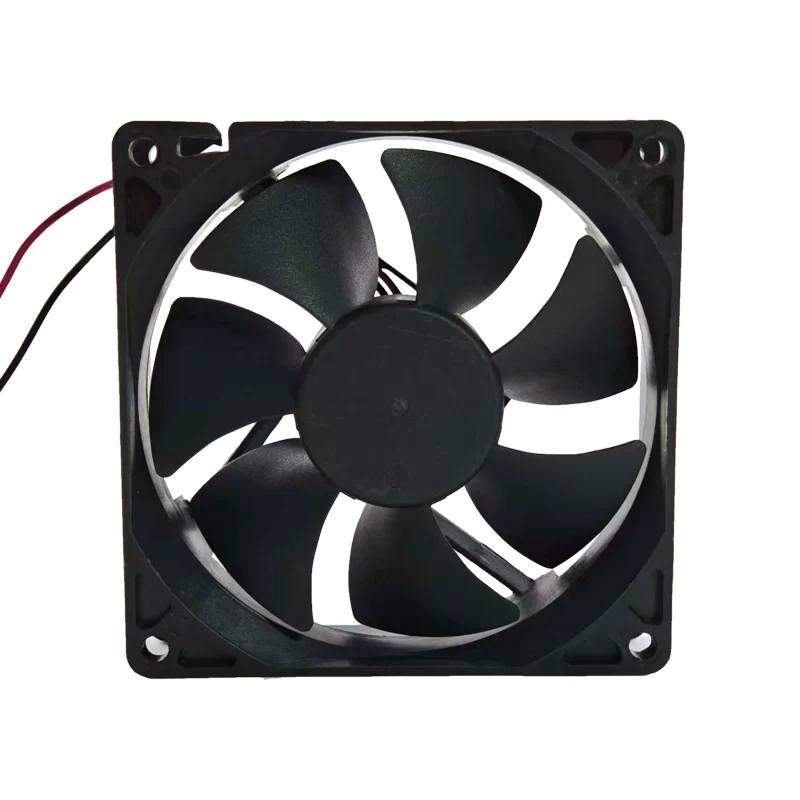

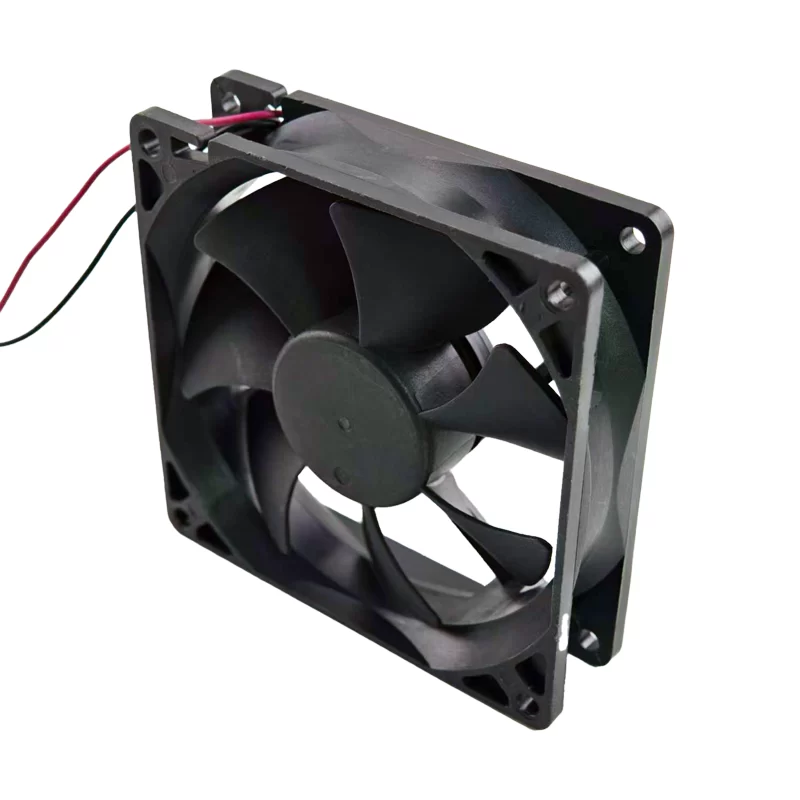

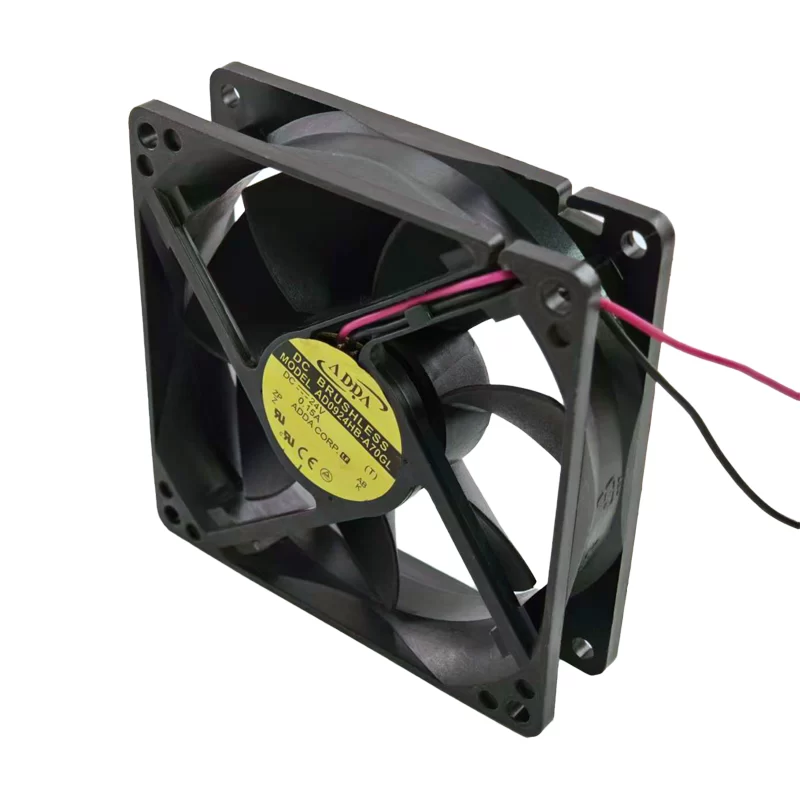

The ADDA AD0924HB-A70GL is a high-performance DC Axial Fan with dimensions of 92×92×25 mm. It operates on a nominal voltage of 24 VDC, drawing a rated current of 0.15 A for a power consumption of 3.6 W. Featuring a durable Ball Bearing system, this fan achieves a high speed of 2,900 RPM. It delivers a powerful maximum airflow of 95.2 m3/h (56.069 CFM) and a static pressure of 32.6 Pa (0.131 inH2O). It operates at a low to moderate noise level of 35.0 dB(A).
AD0924HB-A70GL Fan Parameters
Model: AD0924HB-A70GL
Manufacturer: ADDA
Fan Type: DC Axial Fan
Dimensions: 92×92×25 mm
Nominal Voltage: 24 VDC
Rated Current: 0.15 A
Rated Power: 3.6 W
Rated Speed: 2,900 RPM
Airflow: 95.2 m3/h (56.069 CFM)
Static Pressure: 32.6 Pa (0.131 inH2O)
Noise Level: 35.0 dB(A)
Weight: 101 g
Bearing System: Ball Bearing
Termination: 2-Wire Leads
Number of blades: 7
Housing Material: Plastic (PBT, UL94V−0)
Impeller Material: Plastic (PBT, UL94V−0)
Motor Design: Brushless DC Motor
Application
The AD0924HB-A70GL is designed for efficient cooling in industrial and commercial systems utilizing 24 VDC power. Its high airflow and good static pressure capabilities are suitable for applications such as inverters, control panel ventilation, telecommunication systems, and general electronic cabinet cooling where a balance between performance and acoustic level is desired.
