Description

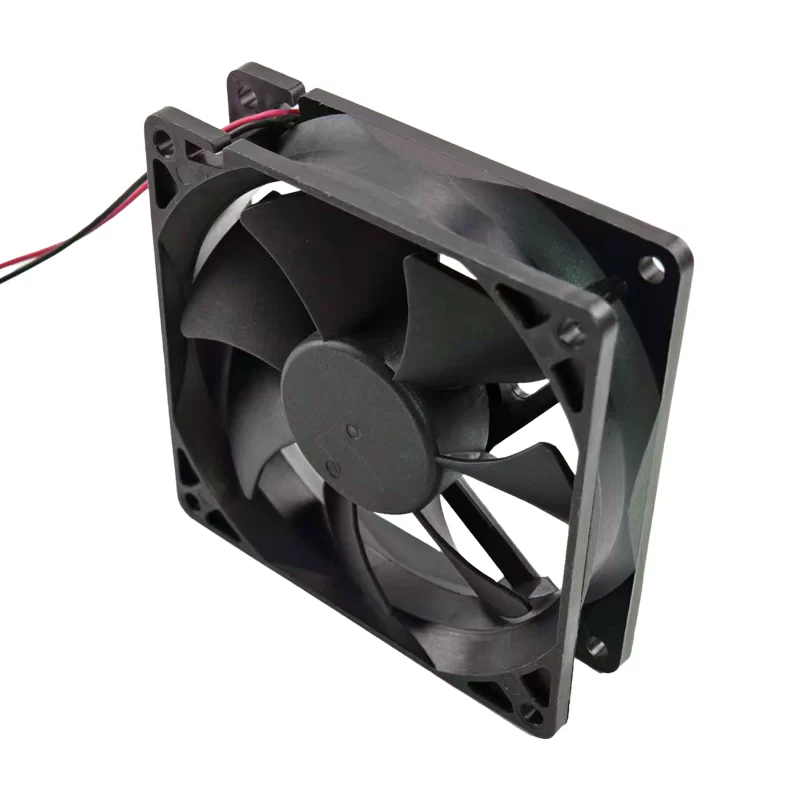

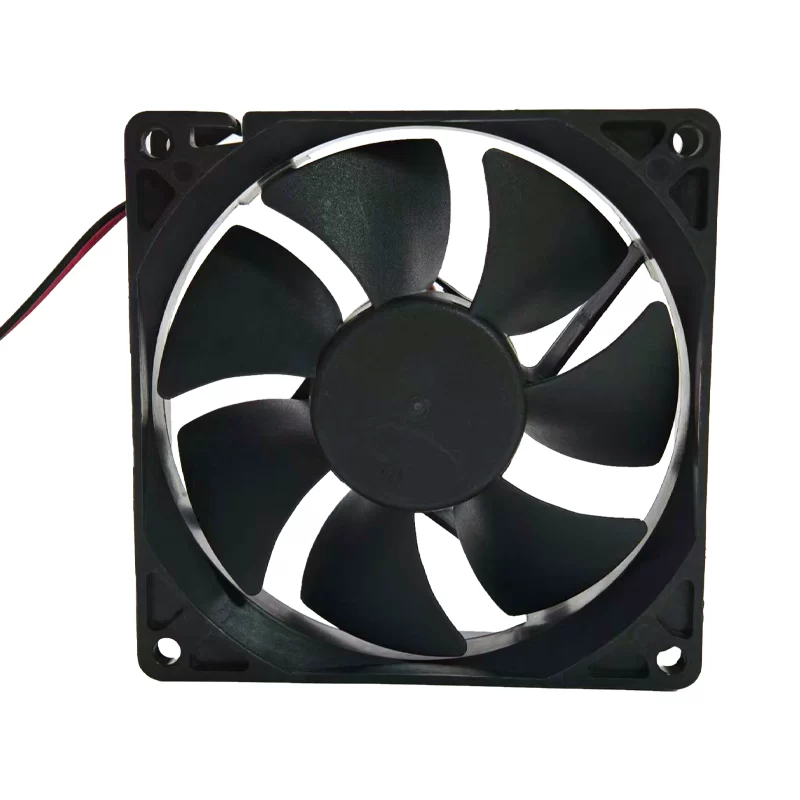

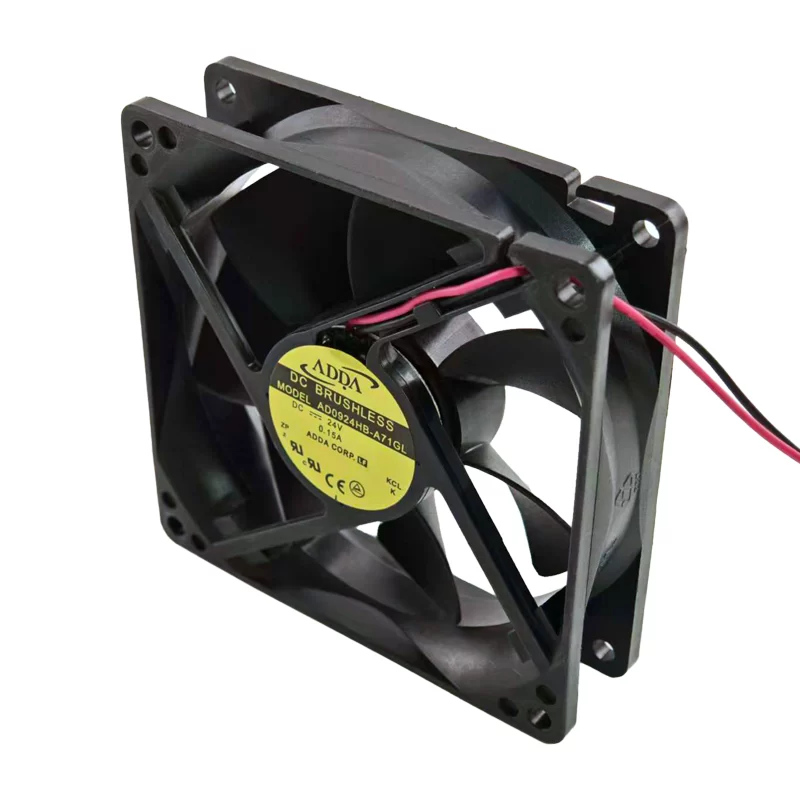

The ADDA AD0924HB-A71GL is a high-speed DC Axial Fan with dimensions of 92×92×25 mm. It operates on a nominal voltage of 24 VDC, drawing a rated current of 0.15 A for a power consumption of 3.6 W. Featuring a durable Ball Bearing system, this fan achieves a high speed of 2,900 RPM. It delivers a substantial maximum airflow of 88.7 m3/h (52.5 CFM) and a static pressure of 33.1 Pa (0.133 inH2O). The fan operates at a moderate noise level of 37.5 dB(A) and typically features 7 blades.
AD0924HB-A71GL Fan Parameters
Model: AD0924HB-A71GL
Manufacturer: ADDA
Fan Type: DC Axial Fan
Dimensions: 92×92×25 mm
Nominal Voltage: 24 VDC
Rated Current: 0.15 A
Rated Power: 3.6 W
Rated Speed: 2,900 RPM
Airflow: 88.7 m3/h (52.5 CFM)
Static Pressure: 33.1 Pa (0.133 inH2 O)
Noise Level: 37.5 dB(A)
Bearing System: Ball Bearing
Termination: 2-Wire Leads
Number of blades: 7
Housing Material: Plastic (UL94V−0)
Impeller Material: Plastic (UL94V−0)
Motor Design: Brushless DC Motor
Application
The AD0924HB-A71GL is an efficient high-speed fan primarily used in industrial and telecommunications applications running on 24 VDC. Its high airflow and good static pressure rating make it effective for cooling rack-mounted equipment, industrial automation cabinets, power supplies, and inverters where reliable, continuous operation is essential.
