Description

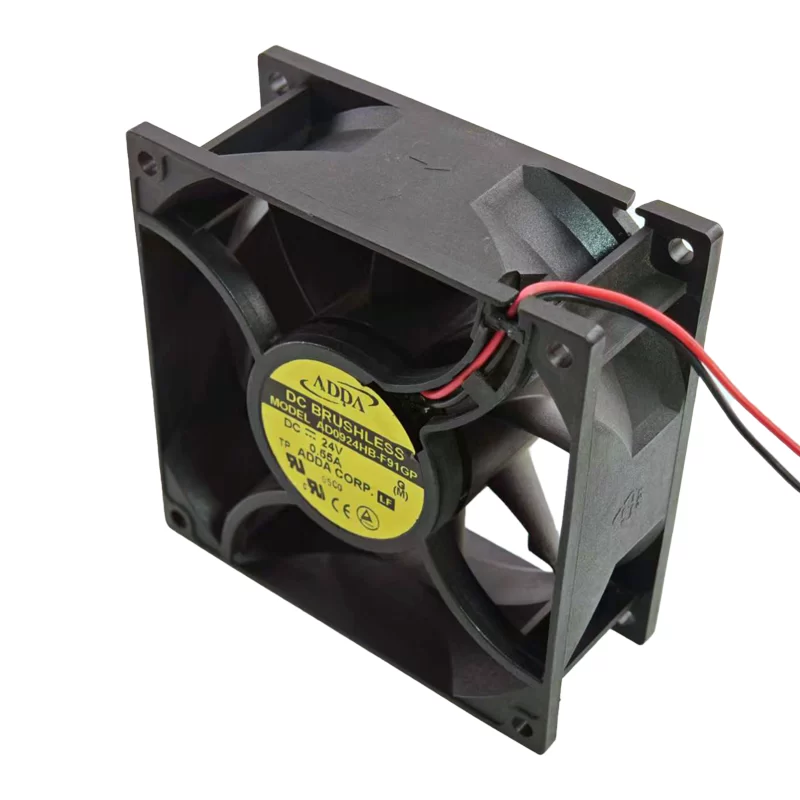

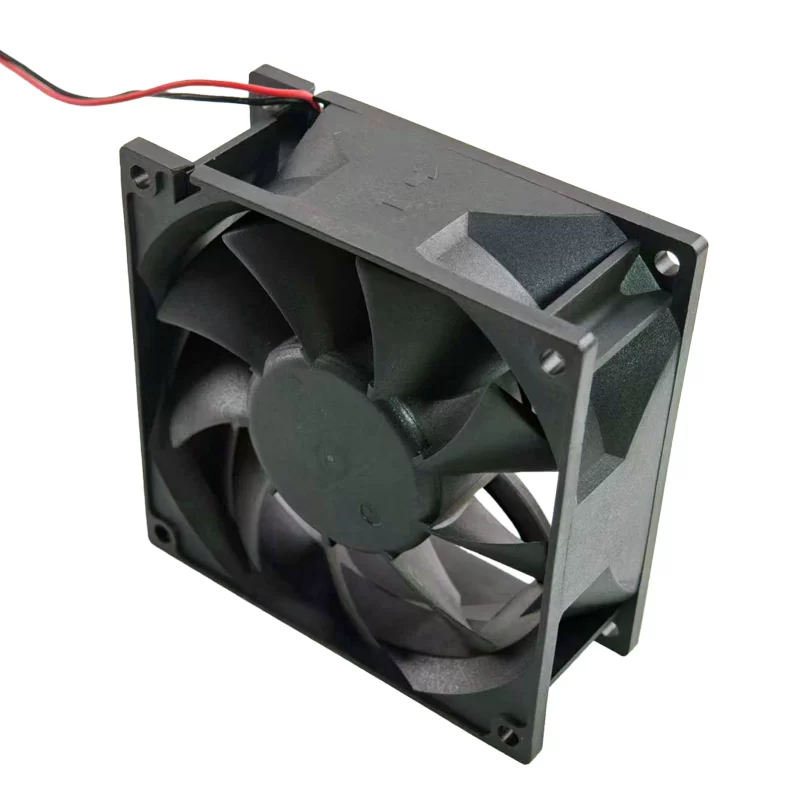

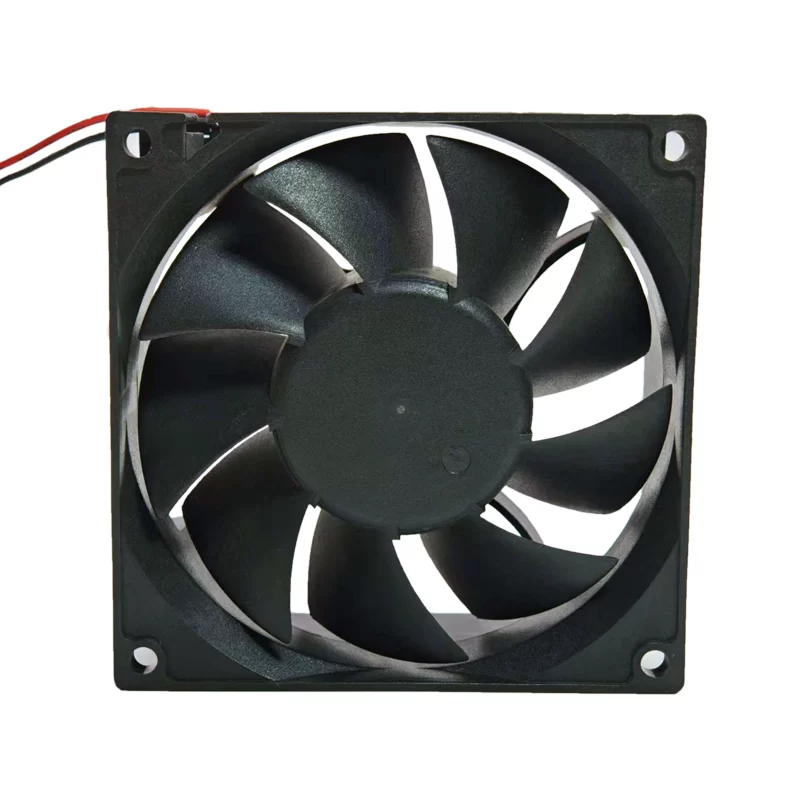

The ADDA AD0924HB-F91GP is a high-performance DC Axial Fan with dimensions of 92 x 92 x 38 mm. It operates on a nominal voltage of 24 V DC, drawing a current of 0.33 A for a power consumption of 7.92 W. Featuring a robust Ball Bearing system, the fan delivers a powerful airflow of 178.40 m3/h and a high static pressure of 112.09 Pa at a speed of 4400 RPM, with a noise level of 53 dBA. Both the frame and the impeller are made of Plastic. This high-speed unit is designed for demanding thermal management in industrial automation equipment and high-density server power supplies that require concentrated 24 V cooling.
AD0924HB-F91GP Fan Parameters
Model: AD0924HB-F91GP
Manufacturer: ADDA
Type: Axial Fan
Nominal Voltage: 24 V DC
Label Current:0.55A
Current Draw: 0.33 A
Power Consumption: 7.92 W
Airflow: 178.40 m3/h
Static Pressure: 112.09 Pa
Speed: 4400 RPM
Noise Level: 53 dBA
Dimensions: 92 x 92 x 38 mm
Weight: 210 g
Bearing Type: Ball Bearing
Frame Material: Plastic
Impeller Material: Plastic
Termination: 2 Wire Leads
AC/DC: DC
Application
The AD0924HB-F91GP is optimized for high-performance cooling in 24 V systems. Its high airflow and speed capabilities make it suitable for power-intensive electronic enclosures where heat dissipation is a critical concern, such as industrial automation equipment and high-density server power supplies.
