Description

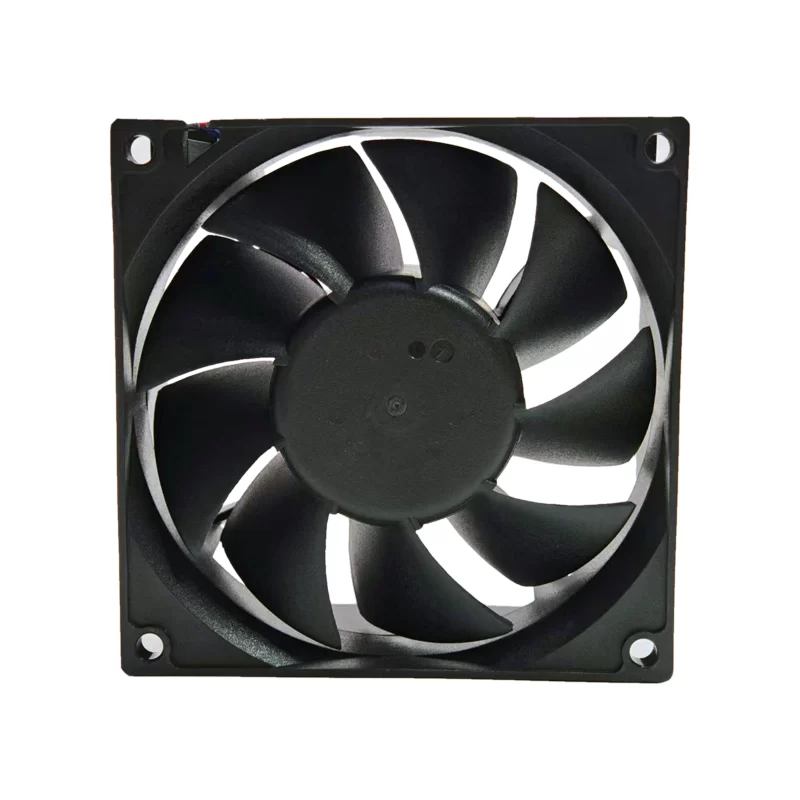

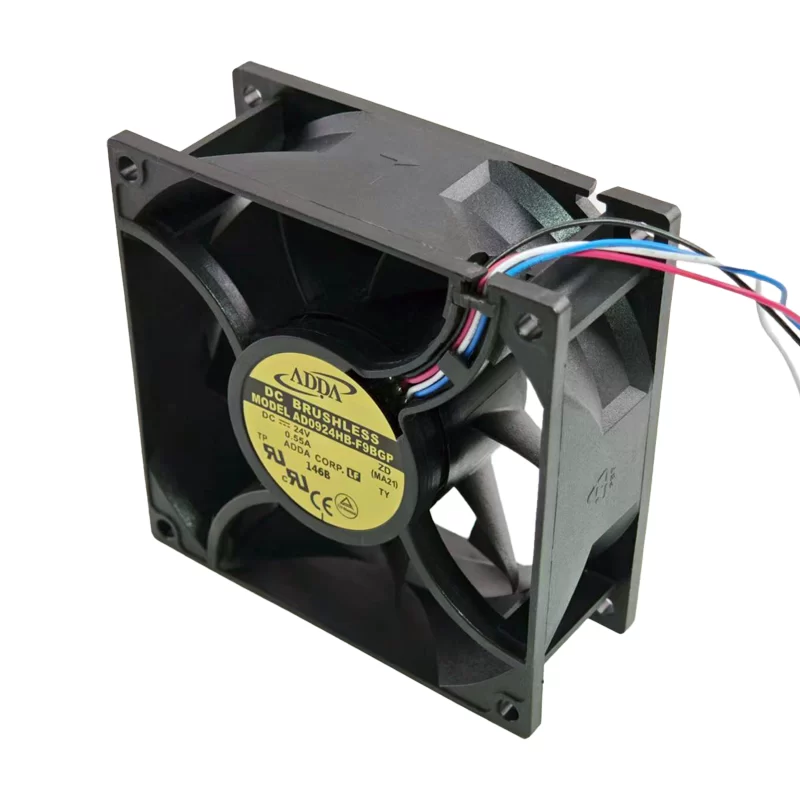

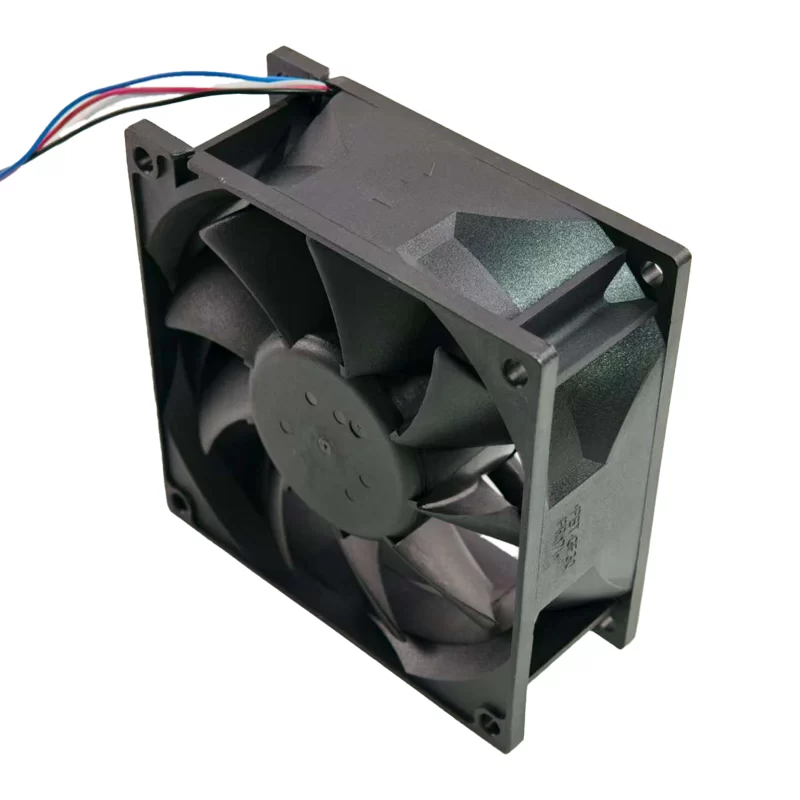

The ADDA AD0924HB-F9BGP is a high-performance DC axial fan with dimensions of 92 x 92 x 38 mm. It operates on a rated voltage of 24V DC within a range of 12-27.6V, drawing 0.55 A of current and consuming 13.2 W of power. This fan delivers a high airflow of 105 CFM (178.4m3/h) and a static pressure of 0.45 inch-H₂O (112Pa) at a speed of 4400 RPM. It operates at a noise level of 53 dB(A), features 9 blades and a ball bearing with a service life of up to 50,000 hours at 40°C. The fan housing and impeller are constructed from plastic, and this model includes a PWM function and a tachometer signal for advanced speed control and monitoring.
AD0924HB-F9BGP Fan Parameters
Manufacturer: ADDA
Model: AD0924HB-F9BGP
Fan Type: DC Axial Fan
Dimensions: 92 x 92 x 38 mm
Rated Voltage: 24V DC
Operating Voltage Range: 12-27.6 V
Current Rating: 0.55 A
Power Consumption: 13.2 W
Airflow: 105 CFM
Static Pressure: 0.45 inch-H₂O
Speed: 4400 RPM
Noise Level: 53 dB(A)
Weight: 0.088 kg
Bearing Type: Ball bearing
Number of blades: 9
Termination: 4-Wire Leads
Housing Material: Plastic
Impeller Material: Plastic
Operating Temperature: -10 °C to 70 °C
Service Life: 50000 h at 40 °C
Motor Protection: Protection against reverse polarity, locked rotor, and thermal overload
Approval: UL, cUL, CE, TUV
Application
The AD0924HB-F9BGP fan is suitable for high-performance computing, server cooling, and other applications that require powerful cooling in a compact size.
