Description

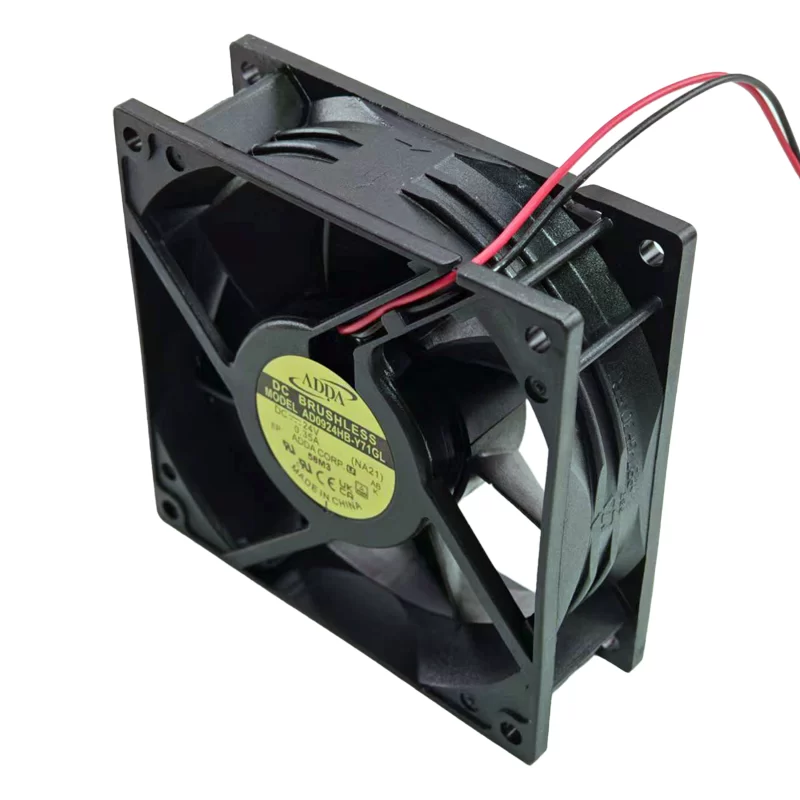

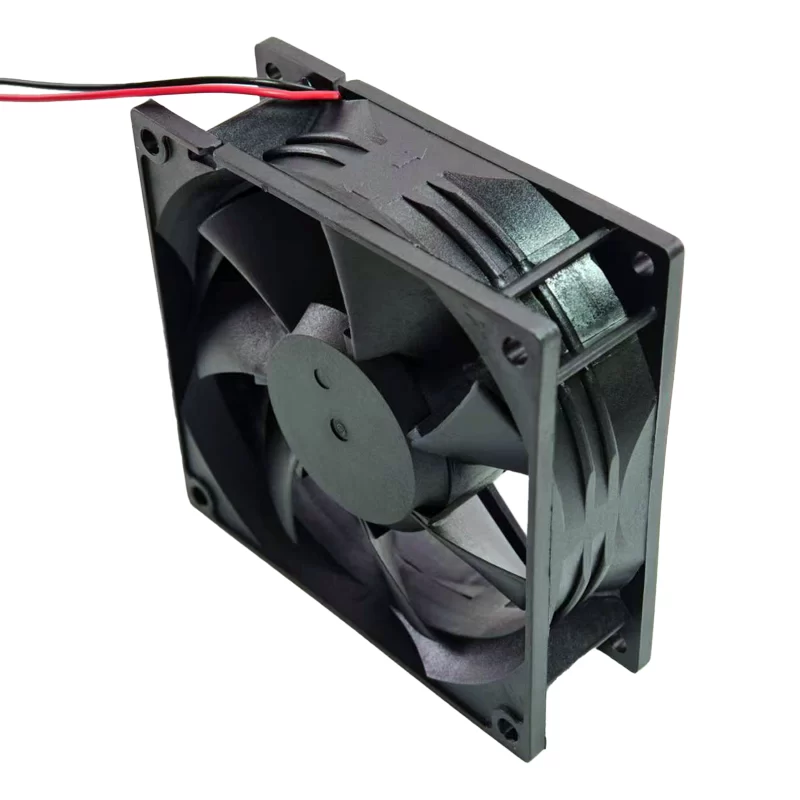

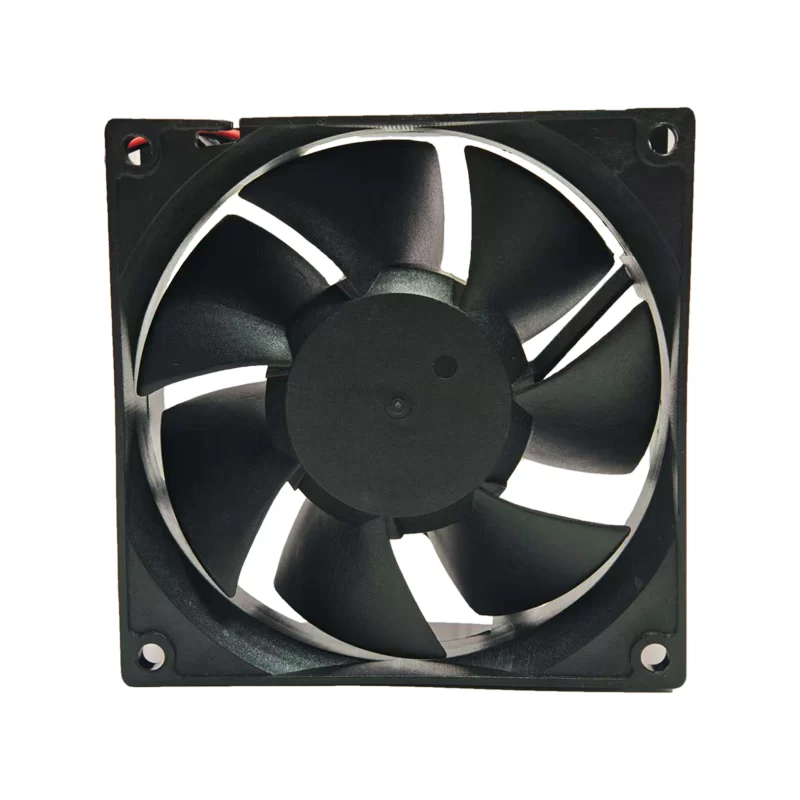

The ADDA AD0924HB-Y71GL is a high-performance DC Axial Fan with dimensions of 92 x 92 x 32 mm. This 24 V DC fan, measuring 92 x 92 x 32 mm, delivers a high airflow of 117.2 m³/h at a speed of 3500 RPM. It operates with a current draw of 0.35 A for a power consumption of 8.40 W, generating a static pressure of 70.6 Pa with a noise level of 44.0 dB(A). Featuring a durable Ball Bearing system, this fan is a robust choice for demanding thermal management in industrial and high-performance computing environments.
AD0924HB-Y71GL Fan Parameters
Model: AD0924HB-Y71GL
Manufacturer: ADDA
Type: DC Axial Fan
Dimensions: 92 x 92 x 32 mm
Voltage: 24 V DC
Current: 0.35 A
Power: 8.40 W
Speed: 3500 RPM
Airflow: 117.2 m³/h
Static Pressure: 70.6 Pa
Noise Level: 44.0 dB(A)
Bearing Type: Ball Bearing
Weight: 140 g
Number of blades: 7
Frame Material: Plastic (UL94V-0)
Impeller Material: Plastic (UL94V-0)
Termination: 2 Wires
Application
The ADDA AD0924HB-Y71GL is engineered for critical thermal management applications that require a robust combination of high airflow and static pressure. Its durable design and high-performance characteristics make it ideal for cooling servers, network equipment, power supplies, and high-density industrial control cabinets where reliability is paramount.
