AD0924UB-Y71GL ADDA 24V DC Axial Fan

$9.99

SKU: AD0924UB-Y71GL
Tag:

Description

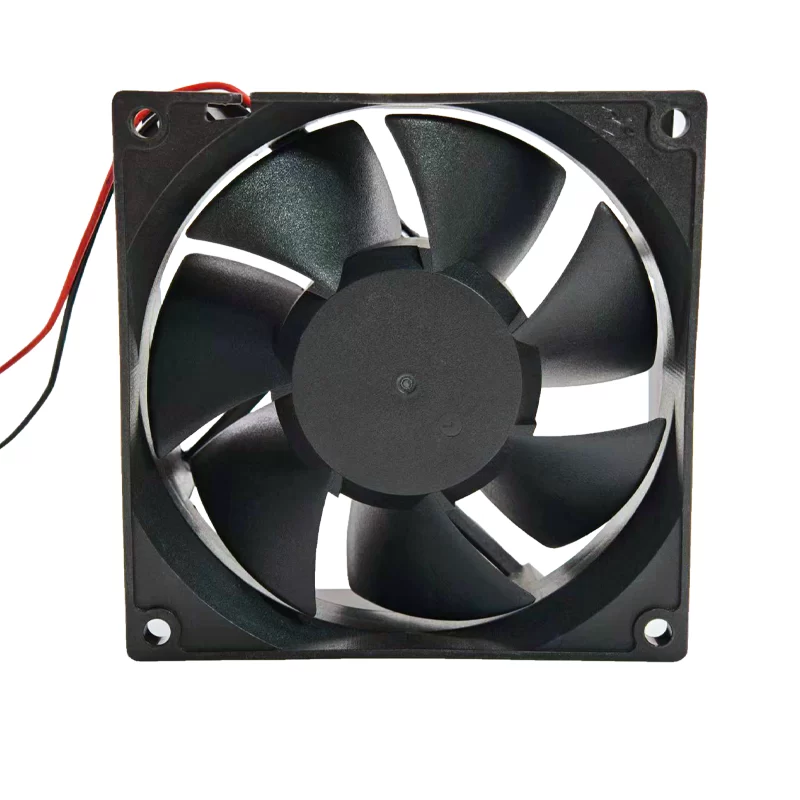

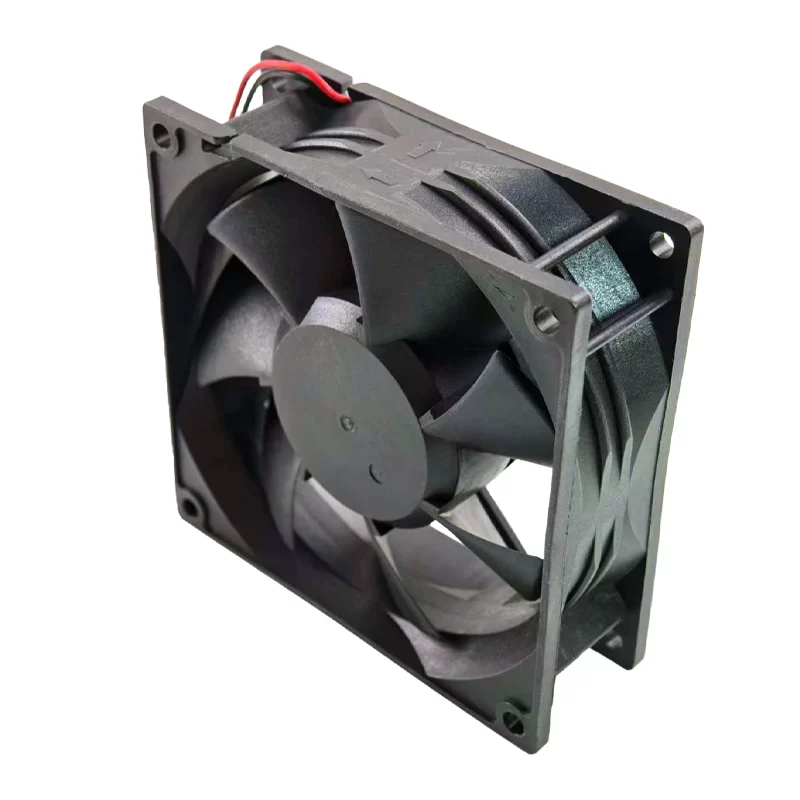

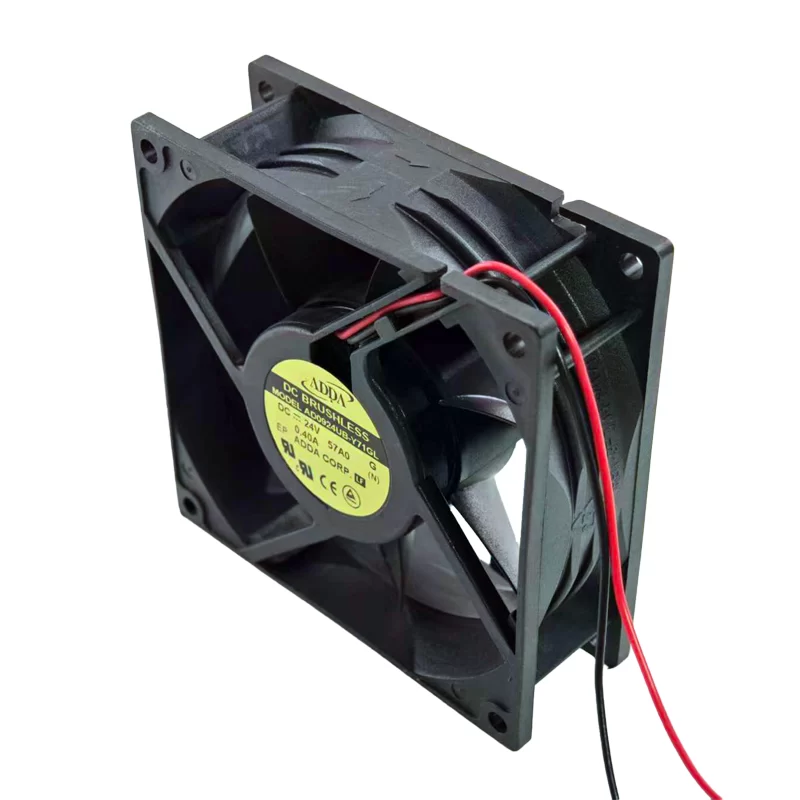

The ADDA AD0924UB-Y71GL is a high-performance DC Axial Fan with measuring dimensions of 92×92×32 mm. This fan operates on a nominal 24 VDC voltage and utilizes an Ultra High Speed rating (U) with a Ball Bearing system for high reliability and maximum lifespan. The fan is designed for critical applications requiring intensive cooling in systems where a 32 mm depth is acceptable for robust thermal management.

AD0924UB-Y71GL Fan Parameters
Model: AD0924UB-Y71GL
Manufacturer: ADDA
Fan Type: DC Axial Fan
Dimensions: 92×92×32 mm
Nominal Voltage: 24 VDC
Rated Current: 0.40 A
Power Consumption: 9.6 W
Bearing System: Ball Bearing
Number of blades: 7
Termination: 2-Wires lead
Frame Material: Plastic (UL94V-0)
Impeller Material: Plastic (UL94V-0)

Application
The AD0924UB-Y71GL is specifically designed for environments where a high-performance, 24 VDC thermal solution is necessary. Its Ultra High Speed classification makes it a strong candidate for industrial power supplies, dense computing equipment, network storage appliances, and automation systems that demand highly reliable air movement to prevent overheating.

AD0924UB-Y71GL ADDA 24V DC Axial Fan
AD0924UB-Y71GL ADDA 24V DC Axial Fan
AD0924UB-Y71GL ADDA 24V DC Axial Fan
AD0924UB-Y71GL ADDA 24V DC Axial Fan

Additional information

Weight 0.5 kg
