Description

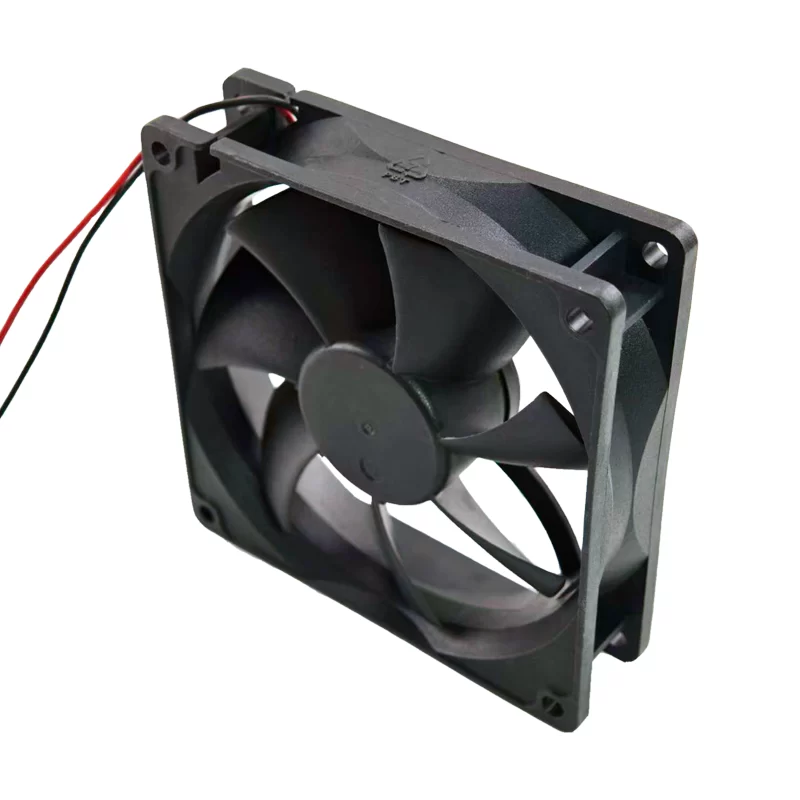

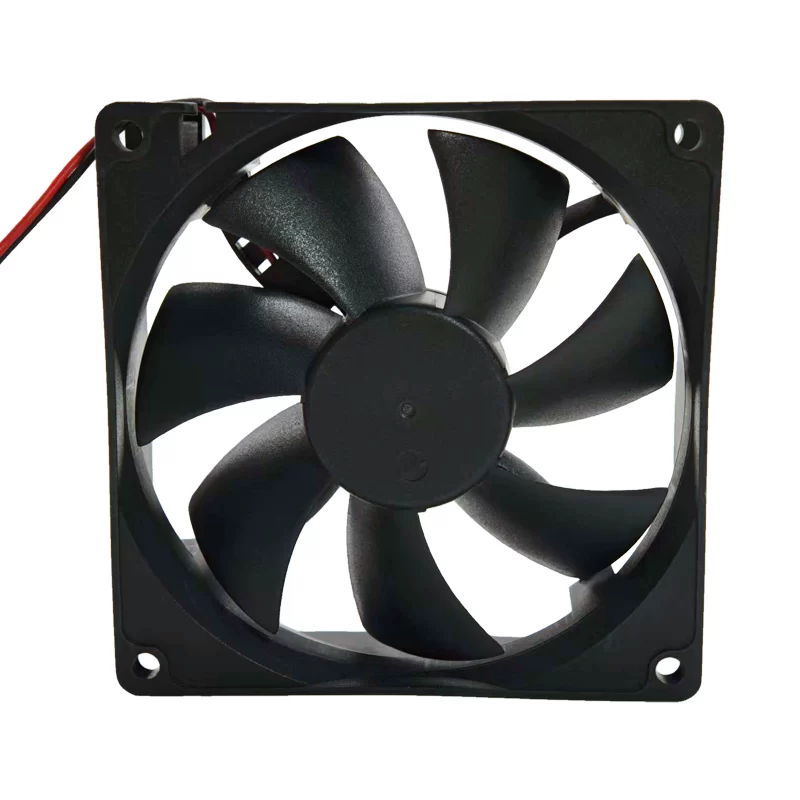

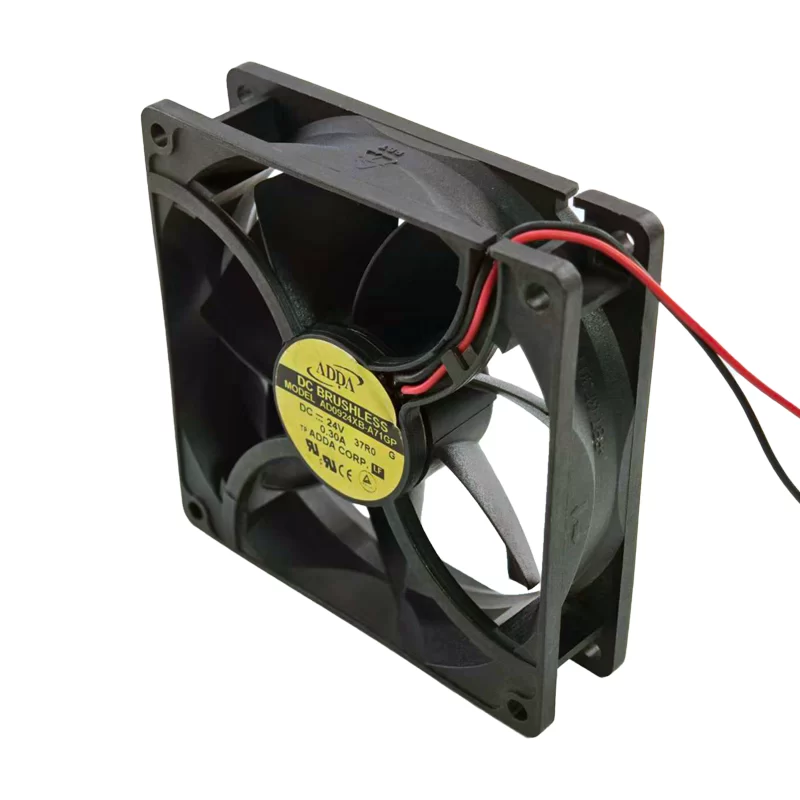

The ADDA AD0924XB-A71GP is an ultra-high speed DC Axial Fan with dimensions of 92×92×25 mm. It operates on a nominal voltage of 24 VDC, drawing a rated current of 0.30 A for a high power consumption of 7.2 W (or 0.24 A for 5.76 W, using the common 0.24 A rating for a standard power calculation). Featuring a high-reliability Ball Bearing system, this fan achieves a very high speed of 4,000 RPM. It delivers a powerful maximum airflow of 142.0 m3/h (83.5 CFM) and operates at a noise level of 48 dB(A).
AD0924XB-A71GP Fan Parameters
Model: AD0924XB-A71GP
Manufacturer: ADDA
Fan Type: DC Axial Fan
Dimensions: 92×92×25 mm
Nominal Voltage: 24 VDC
Rated Current: 0.24 A
Label Current: 0.30A
Rated Power: 5.76 W
Rated Speed: 4,000 RPM
Airflow: 142.0 m3/h (83.5 CFM)
Static Pressure: 75.0 Pa (0.30 inH2O)
Noise Level: 48 dB(A)
Bearing System: Ball Bearing
Termination: 2-Wire Leads
Number of blades: 7
Housing Material: Plastic (UL94V−0)
Impeller Material: Plastic (UL94V−0)
Motor Design: Brushless DC Motor
Application
The AD0924XB-A71GP is suitable for applications that require maximum cooling performance in the 92 mm form factor, often in environments utilizing a 24 VDC industrial power source. Typical applications include telecom equipment, industrial power supplies, inverters, control cabinets, and high-performance server/storage systems where high air velocity is needed to overcome resistance and dissipate significant heat.
