Description

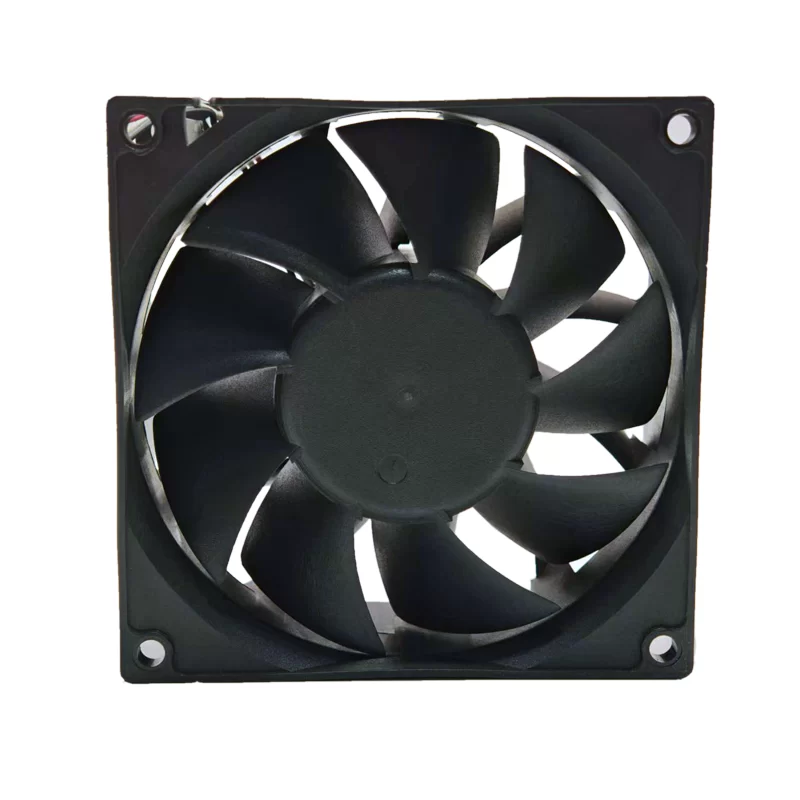

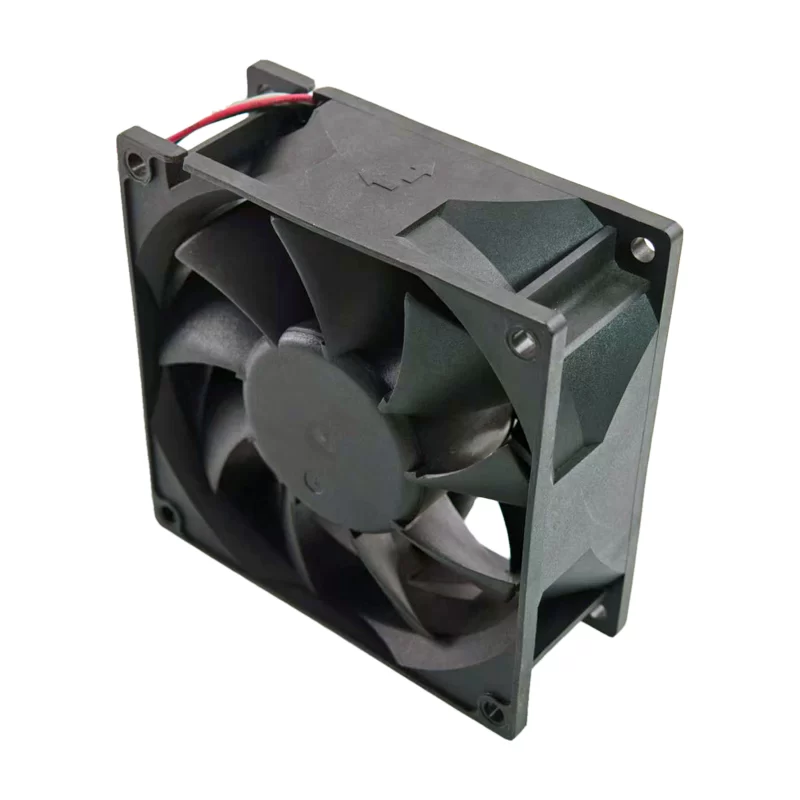

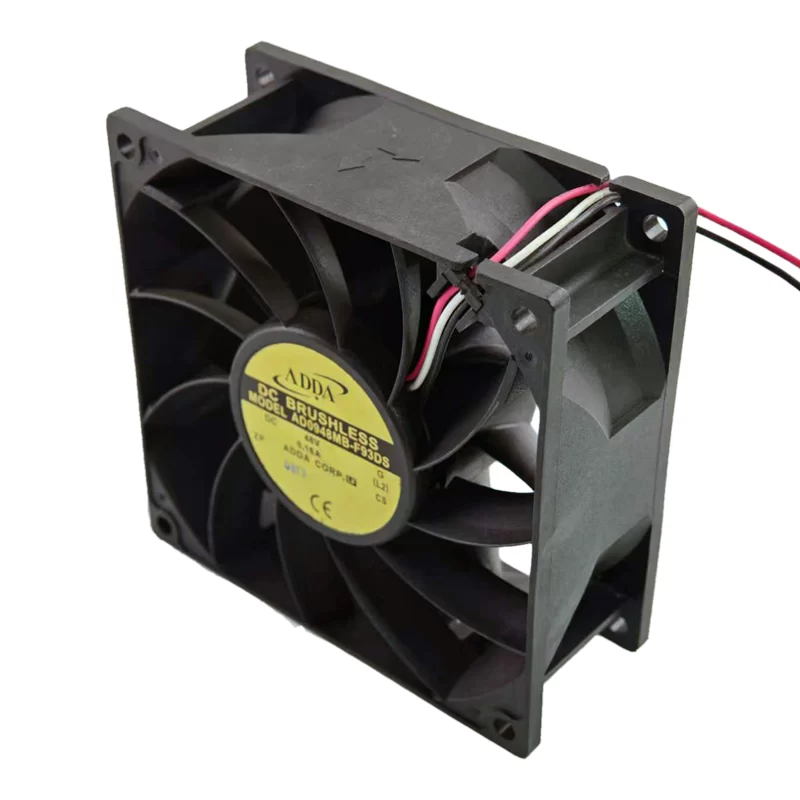

The ADDA AD0948MB-F93DS is a high-performance DC axial fan with dimensions of 92 x 92 x 38 mm. It operates on a rated voltage of 48V DC within a range of 24-54.6V, drawing 0.16 A of current and consuming 7.68 W of power. This fan, with 9 blades, delivers an airflow of 60 CFM (102 m3/h) and a static pressure of 0.23 inch-H₂O (57Pa) at a speed of 3000 RPM. It operates at a noise level of 35 dB(A) and features a ball bearing with a service life of up to 50,000 hours at 40°C. The fan housing and impeller are constructed from PBT plastic, and this model includes a tachometer signal for speed monitoring.
AD0948MB-F93DS Fan Parameters
Manufacturer: ADDA
Model: AD0948MB-F93DS
Fan Type: DC Axial Fan
Dimensions: 92 x 92 x 38 mm
Rated Voltage: 48V DC
Current Rating: 0.16 A
Power Consumption: 7.68 W
Airflow: 60 CFM
Static Pressure: 0.23 inch-H₂O
Speed: 3000 RPM
Noise Level: 35 dB(A)
Weight: 0.10 kg
Bearing Type: Ball bearing
Number of blades: 9
Termination: 3-Wire Leads
Housing Material: Plastic (PBT)
Impeller Material: Plastic (PBT)
Operating Temperature: -10 °C to 70 °C
Service Life: 50000 h at 40 °C
Motor Protection: Protection against reverse polarity, locked rotor, and thermal overload
Approval: UL, cUL, CE
Application
The AD0948MB-F93DS fan is suitable for server cooling, power supplies, and other applications that require efficient and controlled cooling in a compact size.
