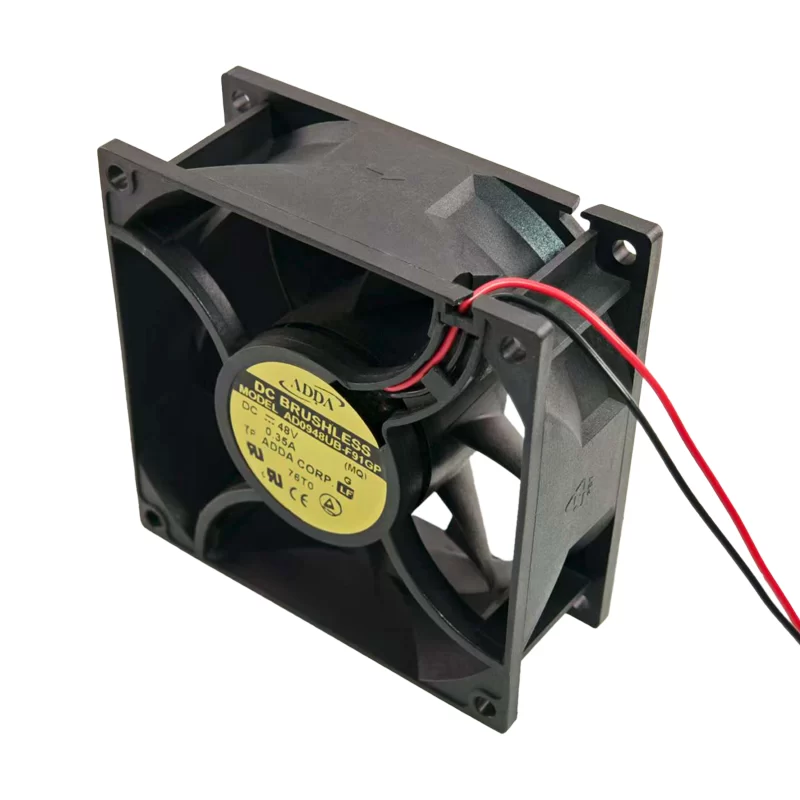

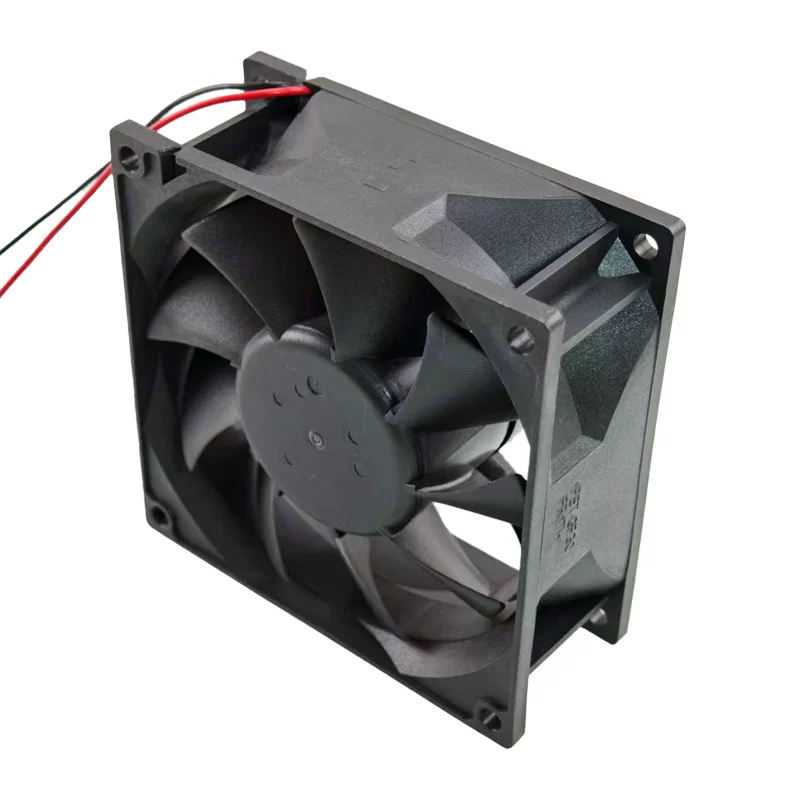

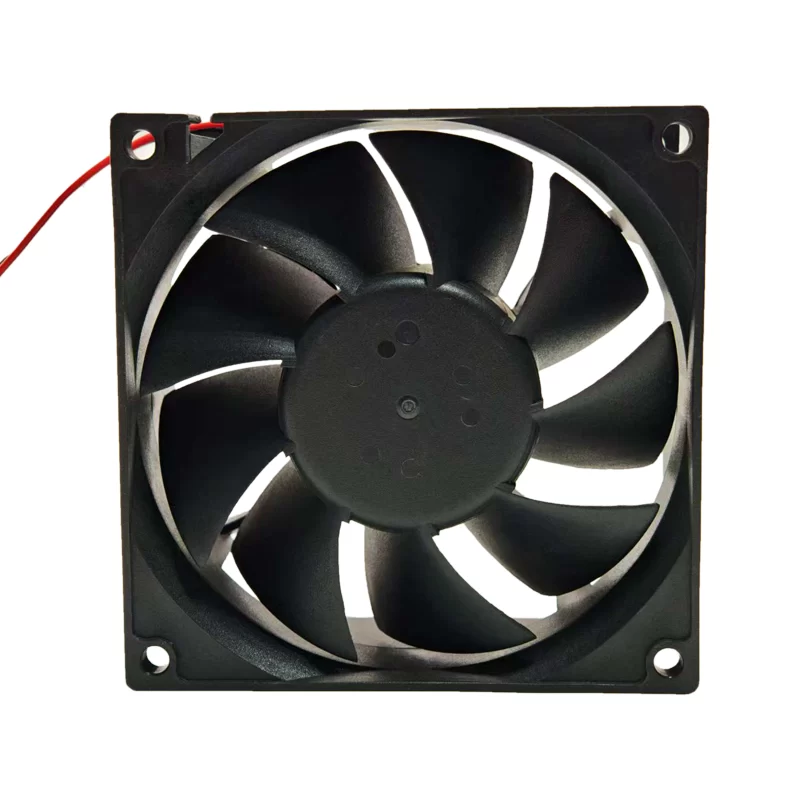

AD0948UB-F91GP ADDA 48V DC Axial Fan

Description

The ADDA AD0948UB-F91GP is a high-performance DC Axial Fan with dimensions of 92 x 92 x 38 mm and operates on a nominal 48 V DC voltage. This fan, constructed with plastic materials for both the frame and impeller, features a robust Ball Bearing system to ensure long-term reliability. Key specifications include a maximum current draw of 0.35 A and an estimated power consumption of 16.8 W. It is primarily used in demanding thermal management applications where a high-volume airflow is required from a standard 92 mm frame size.

AD0948UB-F91GP Fan Parameters
Model: AD0948UB-F91GP
Manufacturer: ADDA
Type: Axial Fan
Nominal Voltage: 48 V DC
Current Draw: 0.35 A
Power Consumption: 16.8 W
Dimensions: 92 x 92 x 38 mm
Bearing Type: Ball Bearing
Frame Material: Plastic (UL94V-0)
Impeller Material: Plastic (UL94V-0)
Termination: 2 Wire Leads
AC/DC: DC

Application
The AD0948UB-F91GP is a powerful DC cooling solution suitable for applications that require significant airflow and static pressure capability. It is frequently employed in high-density electronic enclosures, industrial control cabinets, telecommunications infrastructure, and as a replacement fan for server power supplies.
